Eclipse Thermostat
Eclipse thermostat (room temperature controller)
A KNX thermostat with a 3.5-inch display, one knob and two backlit buttons.
Finish Aluminium black
Ten finishes for the bar under the display: four brushed metals and six silky-matte colours.
No price on this page. Your bill prices it with your villa, in the finish you pick.
No brand photo yet
No brand photo yet
No brand photo yet
No photo of this finish yet. Our 3D model. Drag to turn it; double-click to put it back.

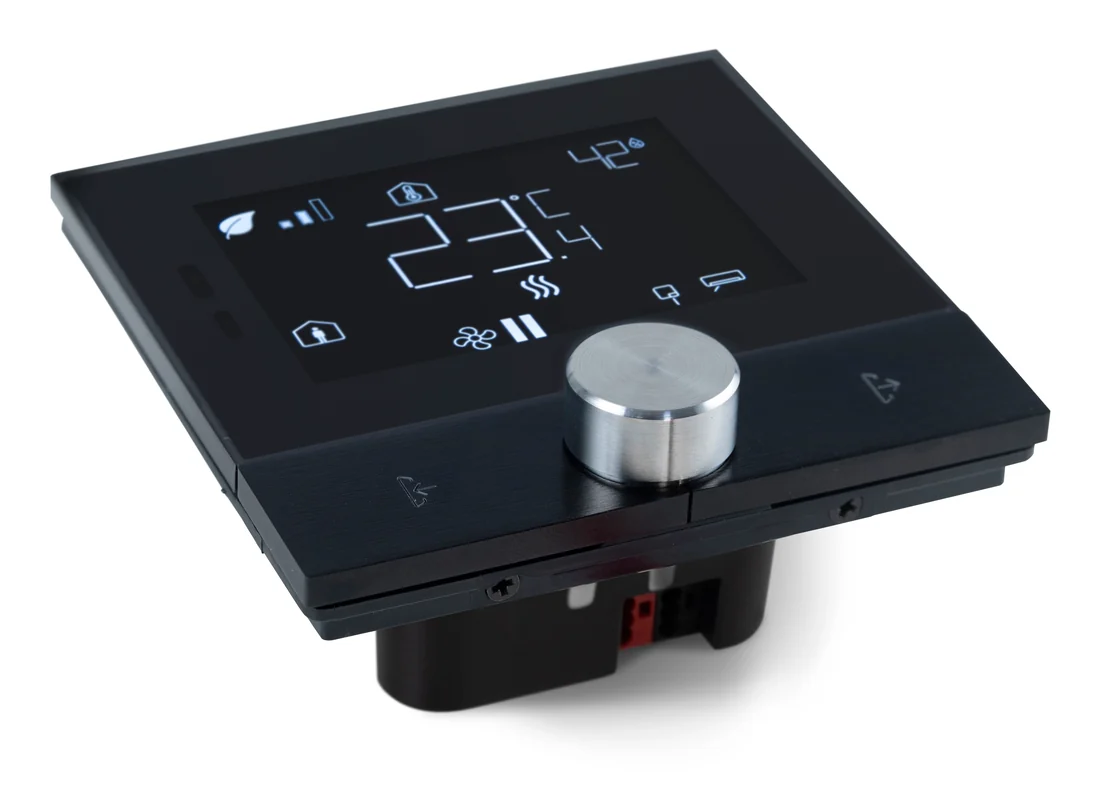

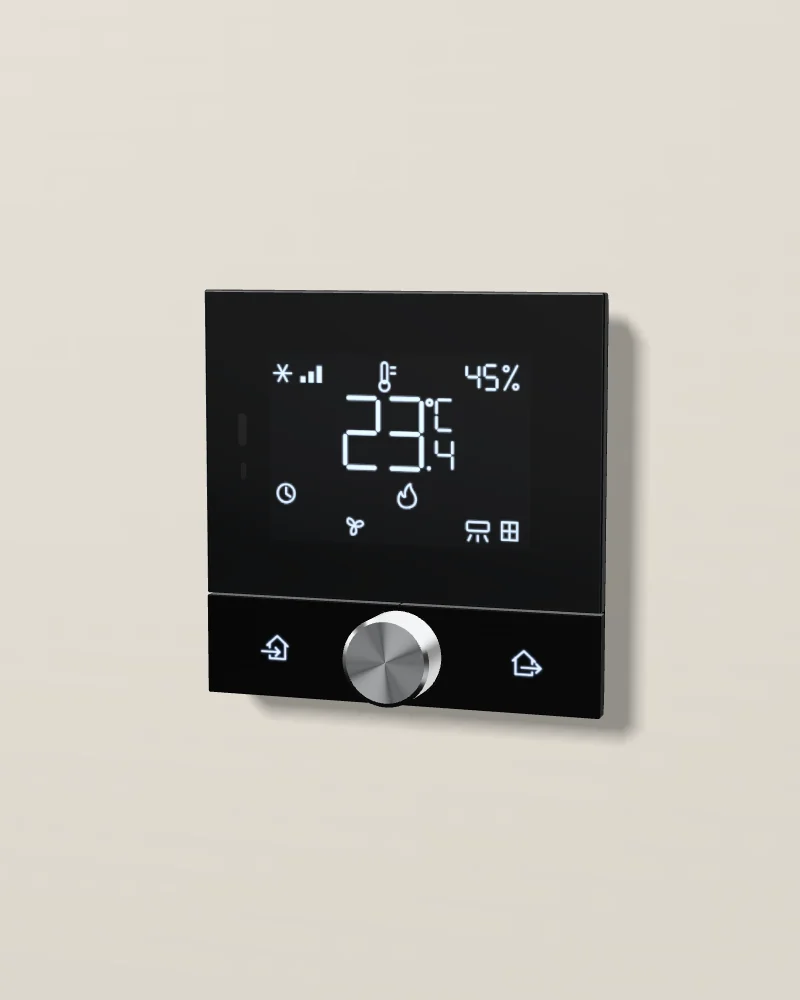

Core's photo, 1 of 3: aluminium black, from the front.
- Display3.5-inch display and one knob
- ThermostatsTwo thermostats in one device
- SensorsTemperature, humidity and air quality sensors
- ConnectionKNX, powered by the bus
Design and materials
A KNX thermostat for one room, or for two: it runs two thermostats or air conditioners. Turn the knob to change the temperature; press it and turn to choose the mode, the fan or the air conditioner's vanes. The two backlit buttons can run the room's lights or the thermostat. It measures the temperature, the humidity and the air quality, and a proximity sensor lights the buttons when someone comes near.
No brand photo yet
Brushed metal or silky matte
Four brushed finishes: aluminium in grey or black, brass and stainless steel. Six silky-matte finishes: aluminium painted in several layers and sealed, for a soft feel.

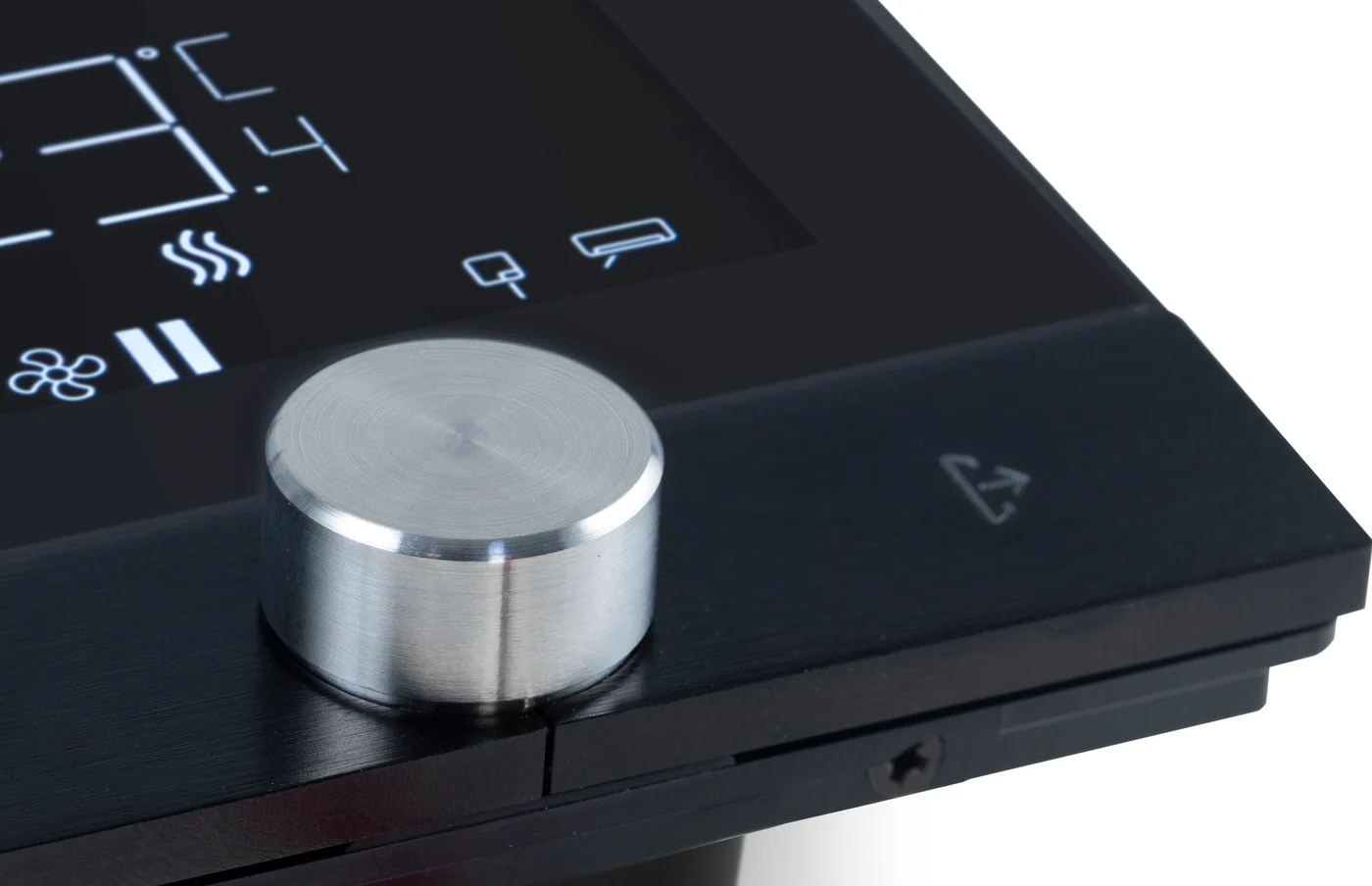

One knob
A solid metal knob does nearly everything: turn it for the temperature, press and turn it for the mode, the fan and the vanes.
A 3.5-inch display
The VA display sits behind black glass, above the bar with the knob and the two buttons.
Where it goes
On an inside wall of the room, at 1.4 m to the centre, away from the supply grille, direct sun and the kitchen. It fits a standard in-wall box (IEC/EN 60670).
Specifications
01Display and system
- Model
- Eclipse thermostat (RTC)
- Screen
- 3.5 inch VA display
- Controls
- One knob (turn for the temperature; press and turn for the other functions) and 2 backlit icon buttons
- Thermostat
- Two thermostats or air conditioners from one device: temperature, mode, fan and the air conditioner's vanes
02Intercom and sensors
- Sensors
- Temperature (±0.2 °C), humidity (±2 %), indoor air quality, proximity and light
03Connections
- Connection
- KNX TP; 30 V DC from the KNX bus, under 15 mA; programmed in ETS
04Mounting and size
- Mounting
- In-wall box to IEC/EN 60670
- Size
- 86 × 86 × 11 mm
- Body
- Front in aluminium, brass, nickel, copper or aged brass, by finish; knob in aluminium, gold, brass or stainless steel
- Rating
- 0 to 45 °C; up to 95 % relative humidity, not condensing
- Finish names
- Brushed: aluminium black (ALB), aluminium grey (ALG), stainless steel (SST), brass (BRA). Silky matte: glacier white (GLW), sand beige (SBE), verdant (VRD), cacao grey (CCG), titanium grey (TTG), obsidian black (OBL). The names come from Core's catalogues and the codes from Core's media pack; the match of name to code is ours to confirm
05Finishes
- Finish 1
Aluminium black- Finish 2

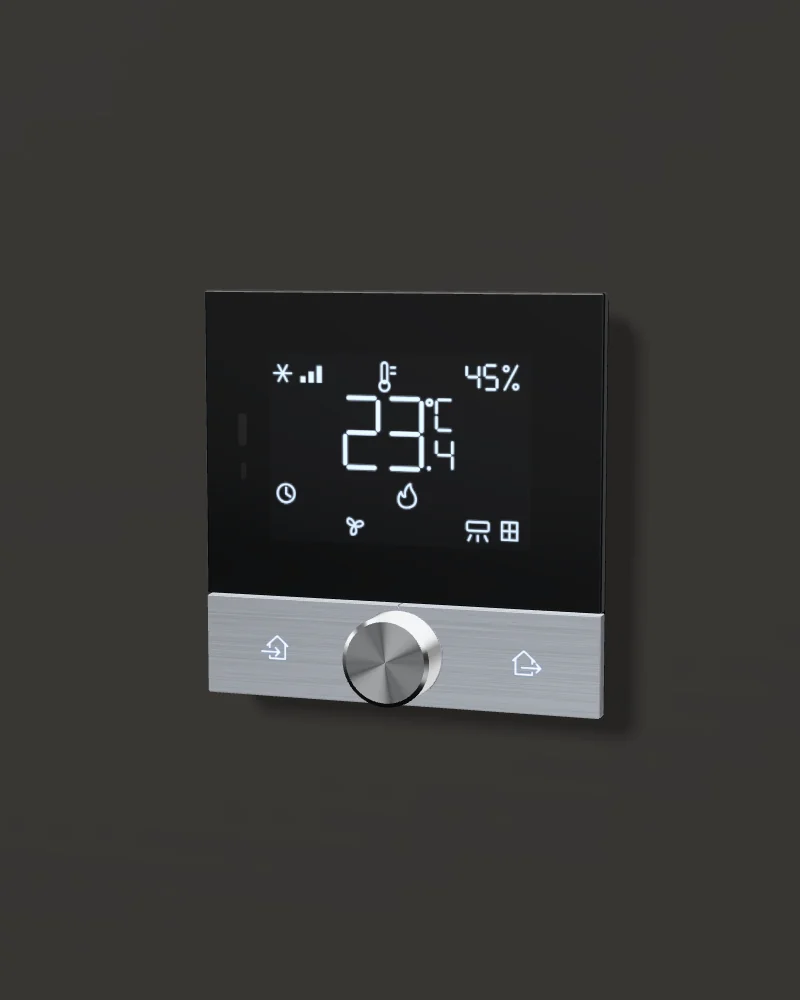

Aluminium grey- Finish 3

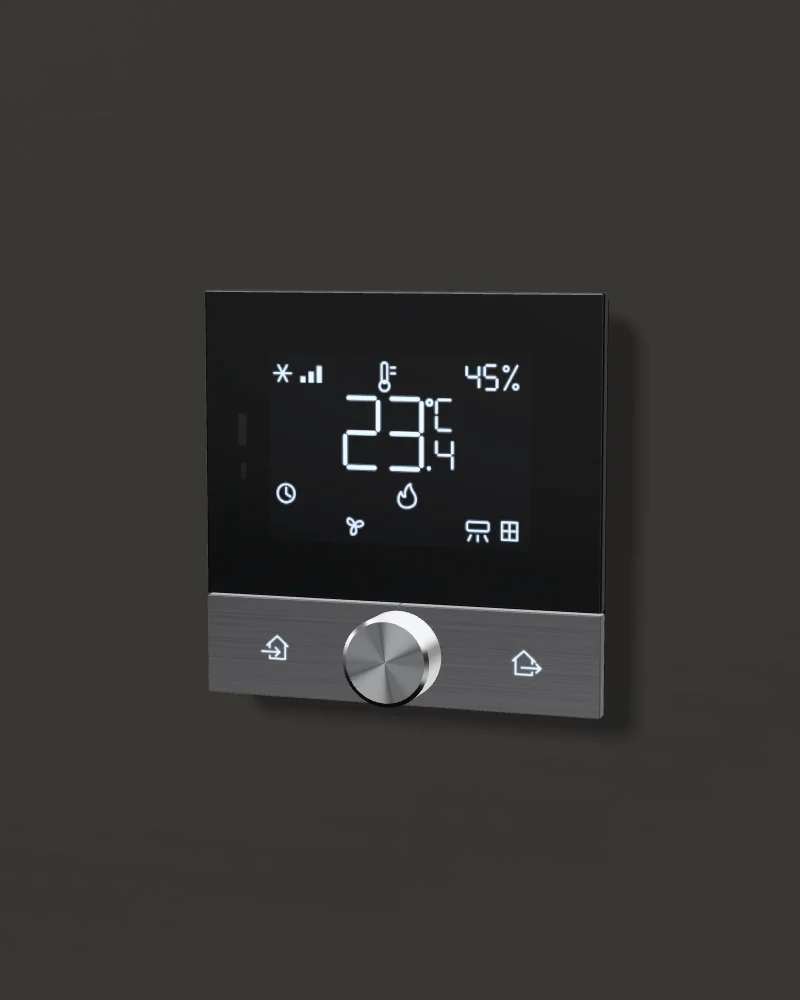

Stainless steel- Finish 4

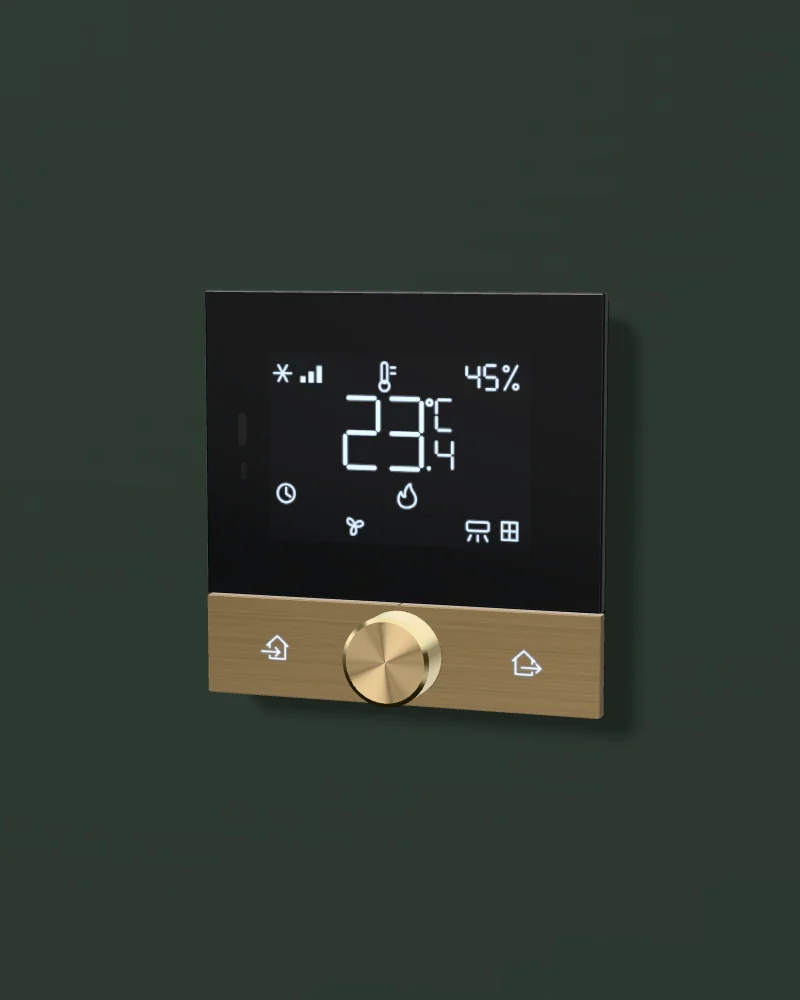

- Brass
- Finish 5

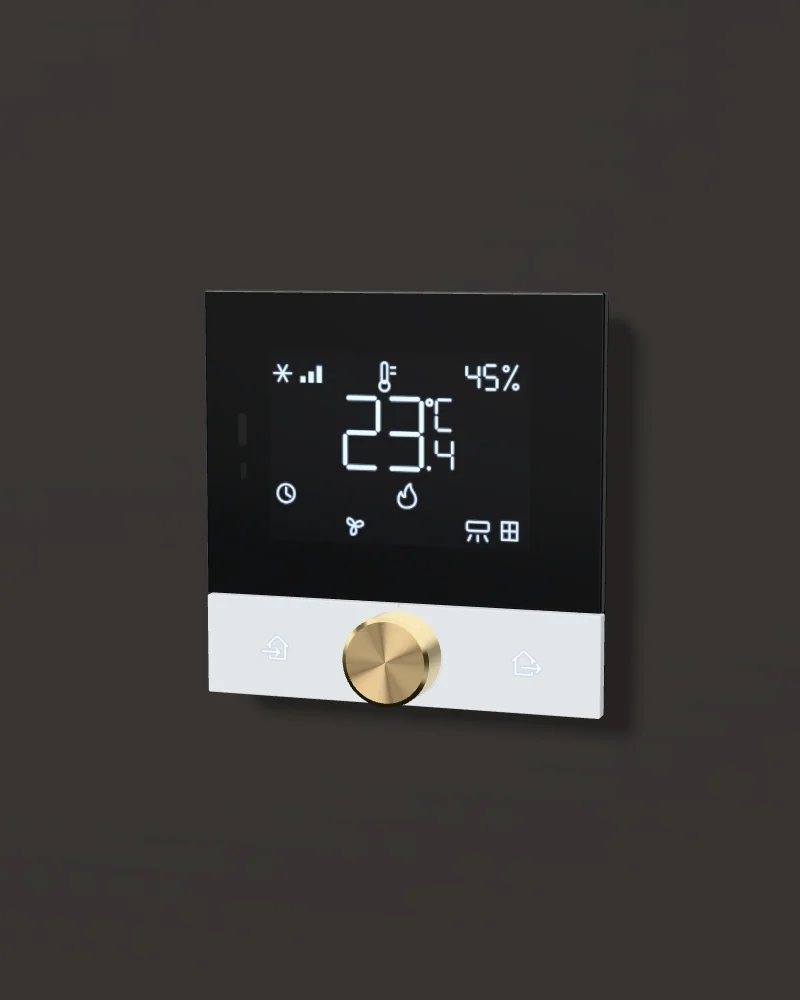

Glacier white- Finish 6

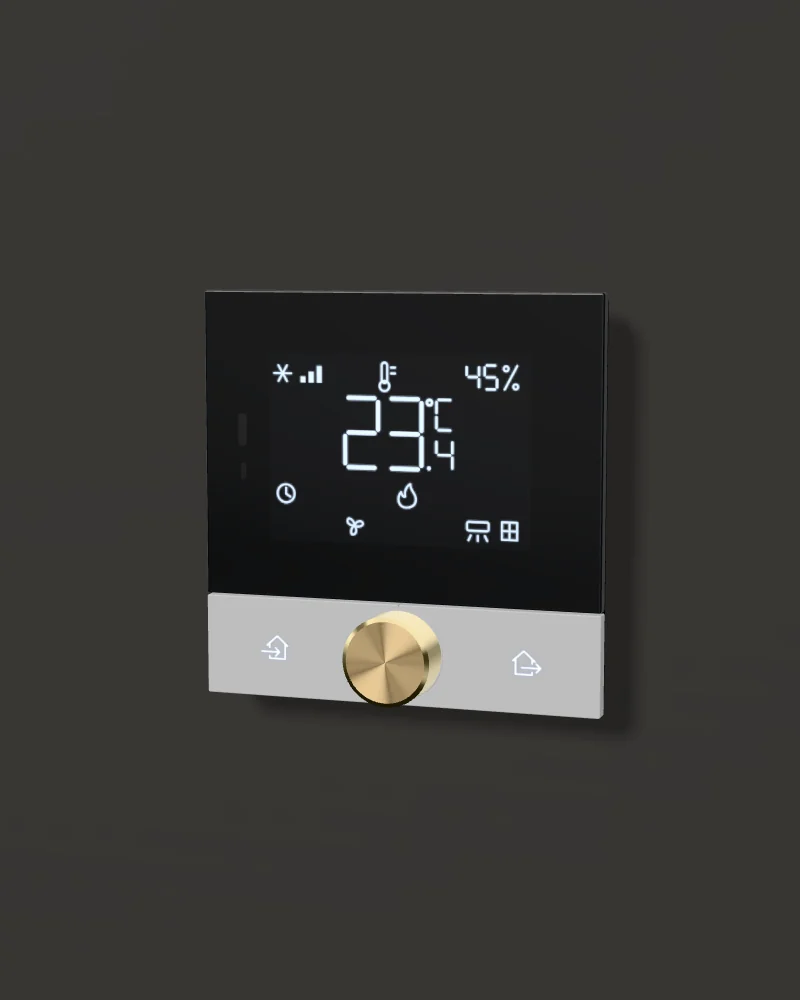

Sand beige- Finish 7

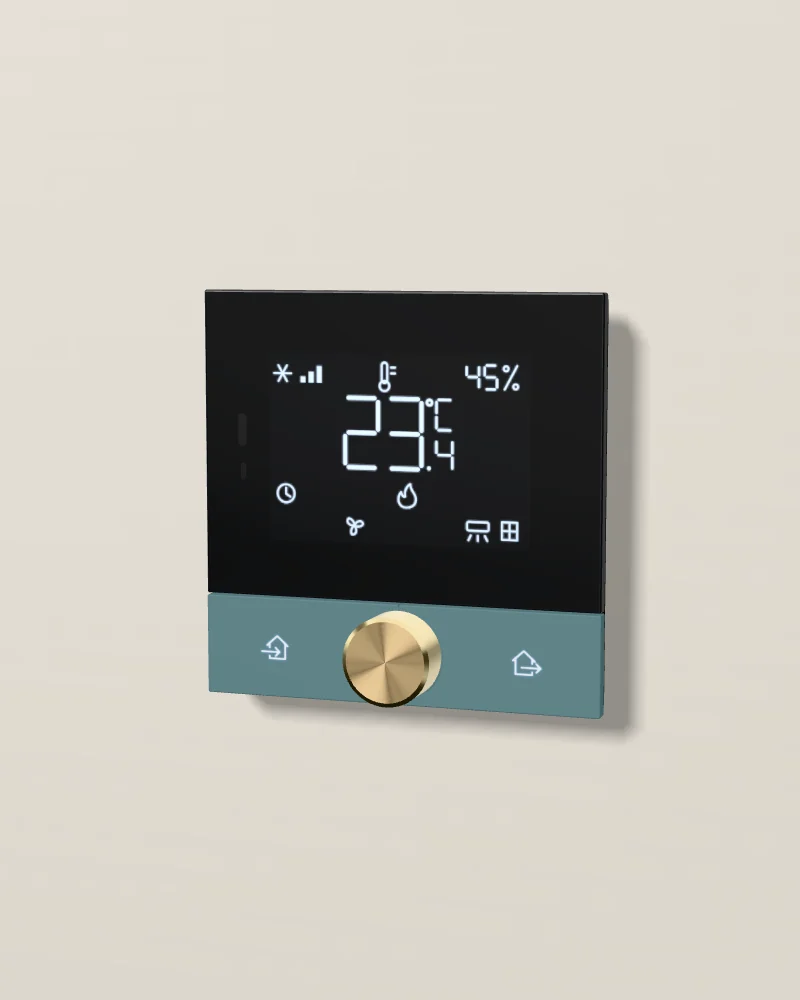

Verdant- Finish 8

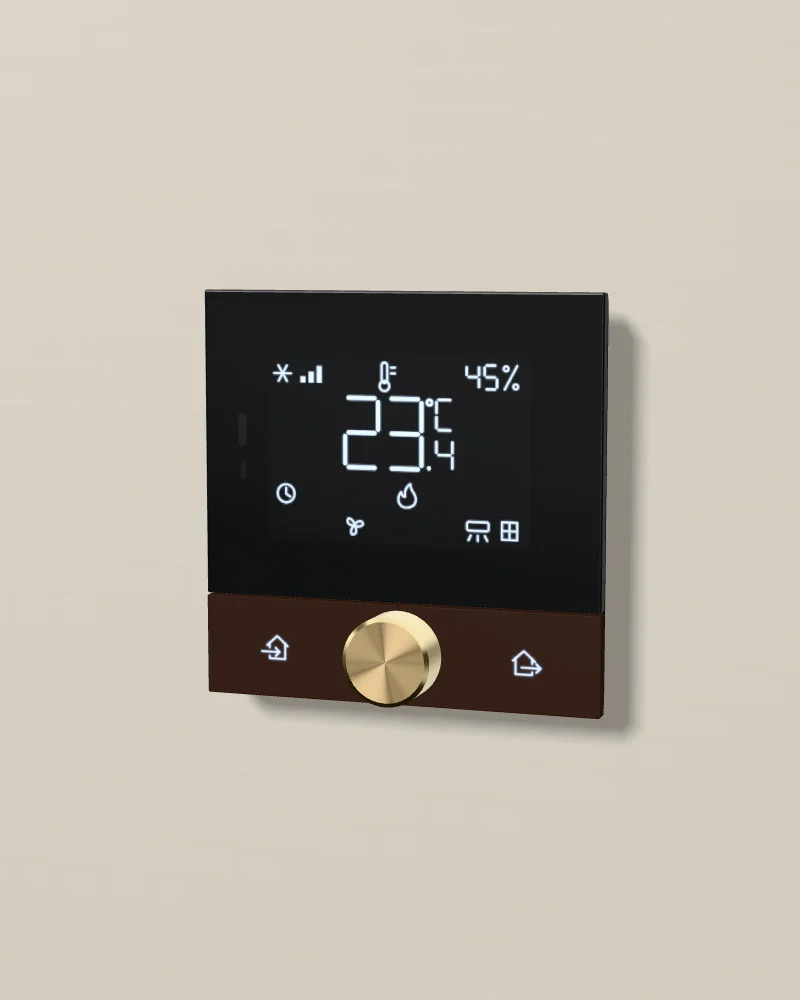

Cacao grey- Finish 9

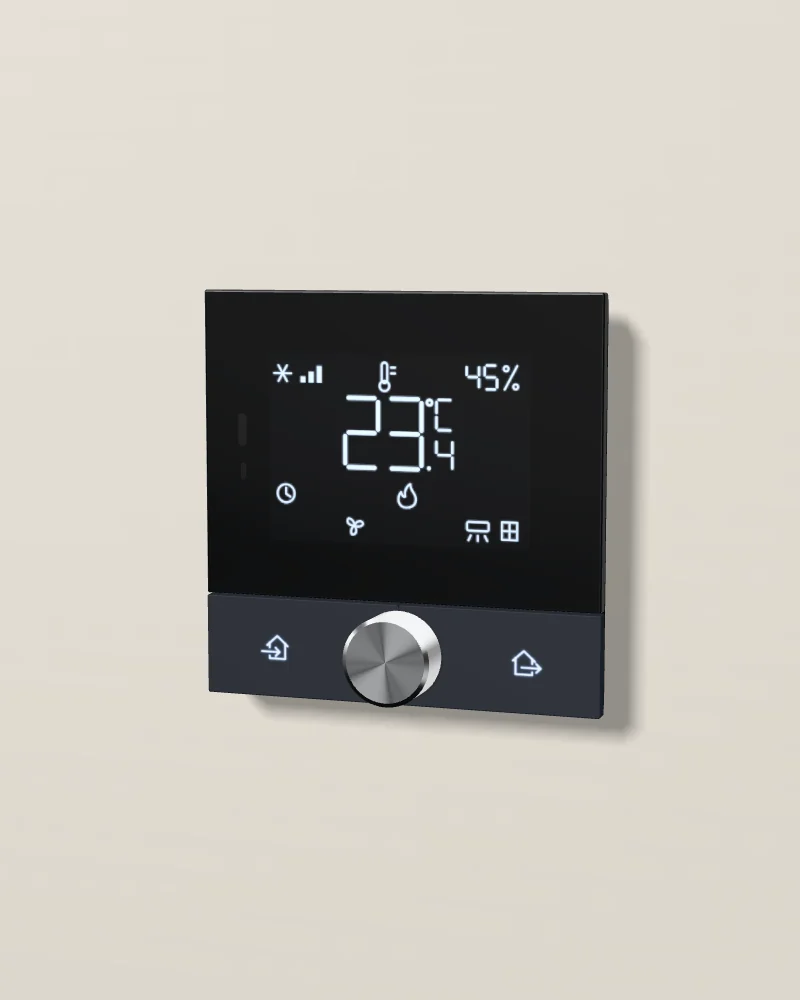

Titanium grey- Finish 10

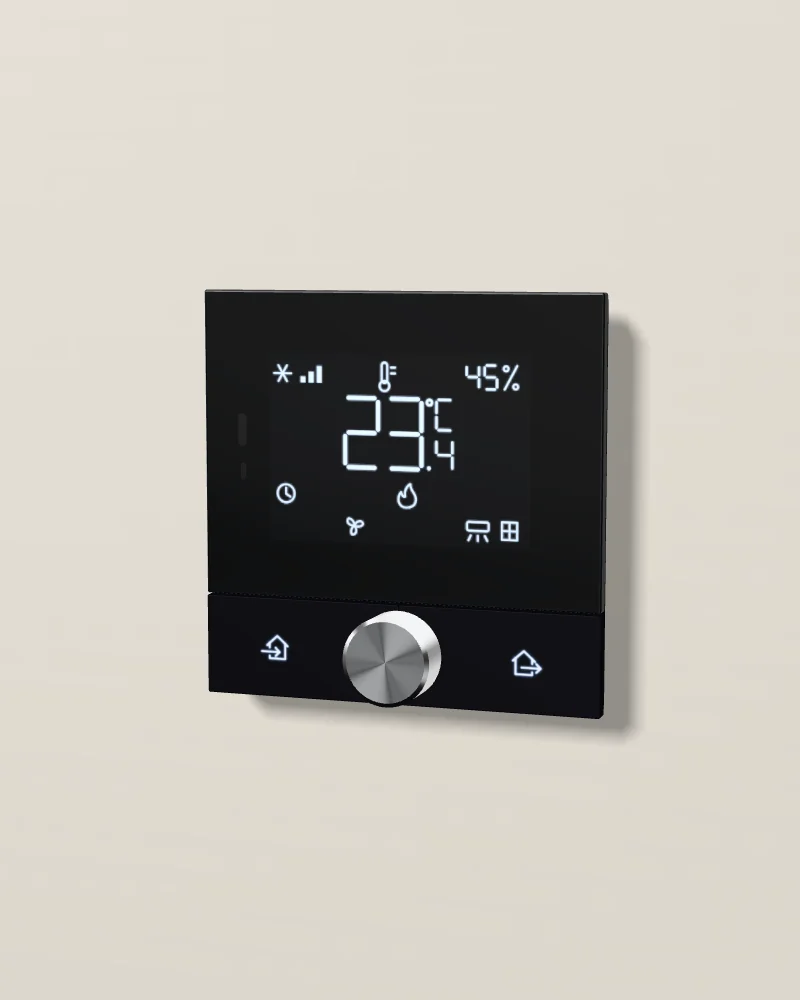

Obsidian black
Sources: Core's datasheet for the Eclipse thermostat (version 3.1), its Eclipse thermostat page and its catalogues (core.com.tr), read on 15 October 2026.
