Eclipse 5

Eclipse 2.0 touch panel, 5-inch

A 5-inch touch panel that runs the KNX system, with the intercom built in.

Finish Aluminium black

Ten finishes for the metal body: four brushed metals and six silky-matte colours.

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

Try the screen

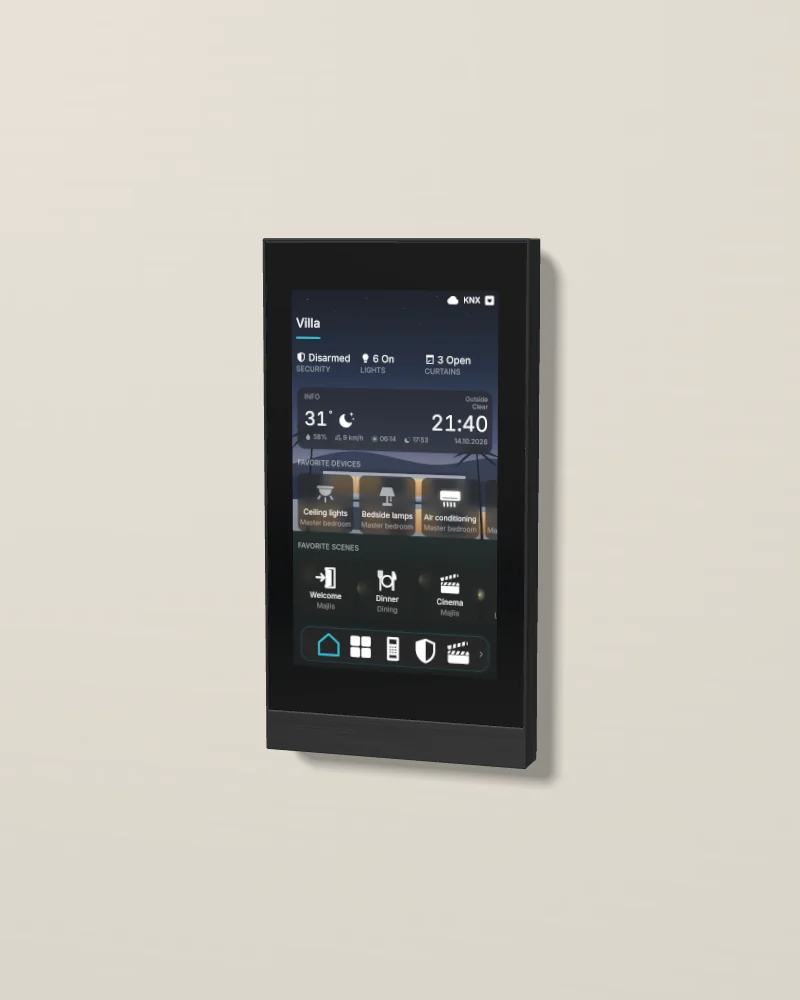

Core Eclipse 5: aluminium black, three-quarter view, Core's picture

Core's picture: aluminium black, three-quarter view.

  • Screen5-inch screen, 720 × 1280
  • SystemRuns the KNX system, no other server
  • IntercomSIP intercom built in
  • PlatformsWorks with Alexa, Google Home and Siri
10 finishes · 80 × 151 mm

Design and materials

Core's 5-inch touch panel on CoreOS 4.0. It is the server of the KNX system: it controls and shows the whole system and runs its logic, with no other server. It shows the rooms and their devices, the scenes, the security panel with the cameras and the door locks, and the automations. It answers a SIP door station, and it can pass an unanswered call to the Core mobile app. With Core Cloud, it works with Amazon Alexa, Google Home, Siri Shortcuts and IFTTT.

Core Eclipse 5: aluminium black, three-quarter view, Core's picture
Core's picture: aluminium black, three-quarter view.

  • Brushed metal or silky matte

    Four brushed finishes: aluminium in grey or black, brass and stainless steel. Six silky-matte finishes: aluminium painted in several layers and sealed, for a soft feel.

  • Black glass in a metal frame

    The glass covers the screen; the finish you pick is the metal around it.

Where it goes

In a bedroom, the study or by a door, at about 1.4 m to the centre. It mounts on the surface over an in-wall box, and it needs Ethernet at the box, with PoE or a 12 to 30 V DC supply.

Core's interface, rebuilt by Homestat · the master bedroom of a sample villa

Try the screen

This is the Eclipse 5's screen, set up in the master bedroom of a sample villa with eight rooms. Use it as you would on the wall. Everything you change, the rest of the screen follows.

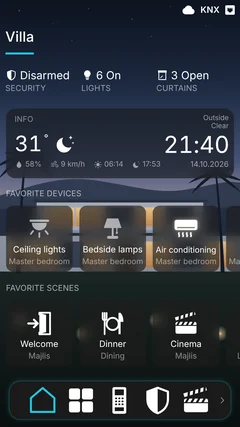

The Eclipse 5's screen, as Homestat rebuilt it

Demo roomMaster bedroom

    This is the master bedroom of the sample villa. It changes when you use the screen. You can also tap a lamp, the ceiling lights, the LED strip, the curtains or the air conditioning in the drawing. Then the screen changes too.

    Six things owners do every day

    1. Open Devices and turn on the bedside lamps.
    2. Dim the ceiling lights to about 40%.
    3. Set the air conditioning to 21°.
    4. Open the curtains.
    5. Arm the alarm for Stay with the code 1234.
    6. Press "Make the gate ring", then answer and open the gate.

    0 of 6 done

    Homestat rebuilt this screen from Core's interface so you can try it here. The real screen differs in detail. Your installer sets up your own rooms, names and scenes.

    12 details · 5 groups

    Specifications

    01Display and system

    Model
    Eclipse 2.0 touch panel, 5-inch
    Screen
    5 inch, 720 × 1280 pixels
    System
    CoreOS 4.0 on Android 12; 1.8 GHz quad-core Arm Cortex-A55 (Rockchip RK3566); 2 GB RAM; 8 GB eMMC

    02Connections

    Connection
    KNX TP and KNX IP; 1 LAN port; no Wi-Fi
    Power
    12 to 30 V DC, or PoE
    Inputs and outputs
    1 digital input

    03Intercom and sensors

    Intercom
    SIP 2.0, peer to peer; microphone array; 1 speaker (4 Ω, 2 W)
    Sensors
    Temperature, humidity, proximity and ambient light

    04Mounting and size

    Mounting
    On the surface, over an in-wall box ("2M in-wall box" in Core's datasheet; to confirm) to confirm
    Size
    80 × 151 × 12 mm on the wall
    Body
    Aluminium front casing
    Finish names
    Brushed: aluminium black (ALB), aluminium grey (ALG), stainless steel (SST), brass (BRA). Silky matte: glacier white (GLW), sand beige (SBE), verdant (VRD), cacao grey (CCG), titanium grey (TTG), obsidian black (OBL). The names come from Core's catalogues and the codes from Core's media pack; the match of name to code is ours to confirm

    05Finishes

    Finish 1
    Aluminium black
    Finish 2

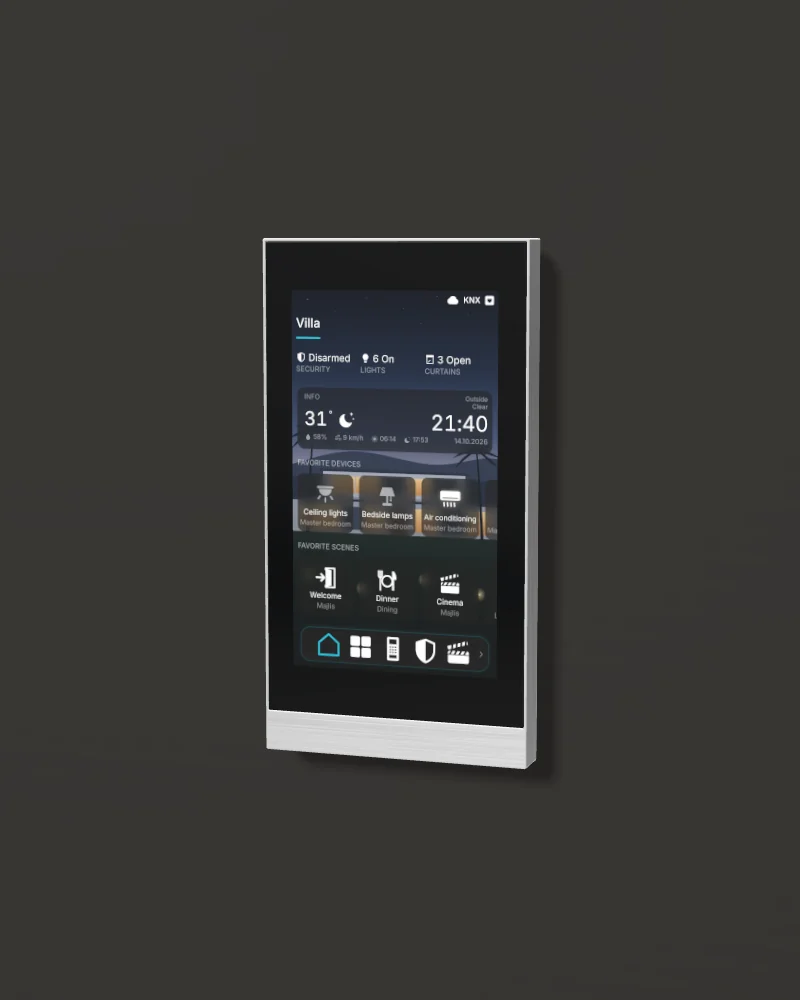

    Aluminium grey
    Finish 3

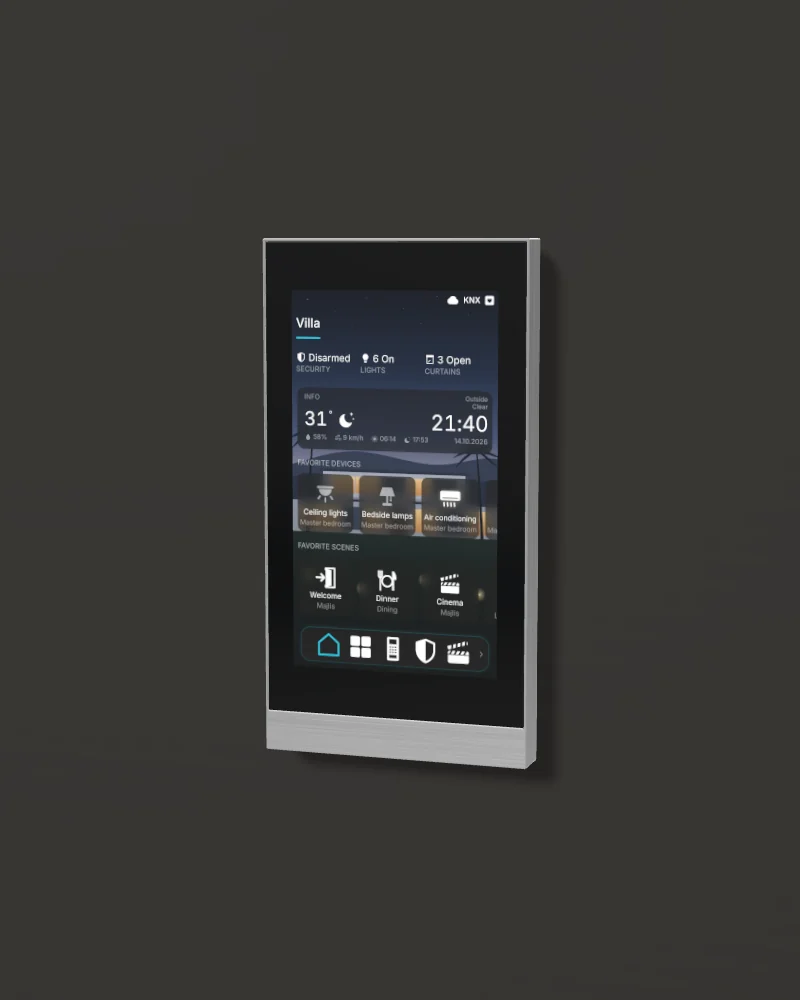

    Stainless steel
    Finish 4

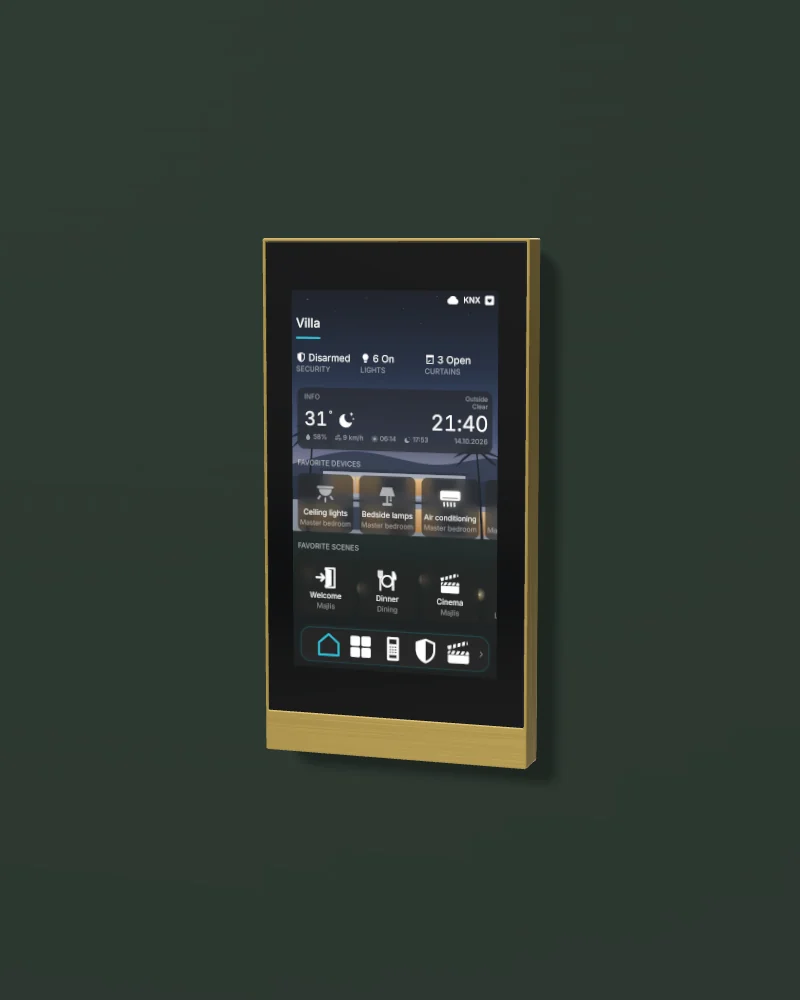

    Brass
    Finish 5

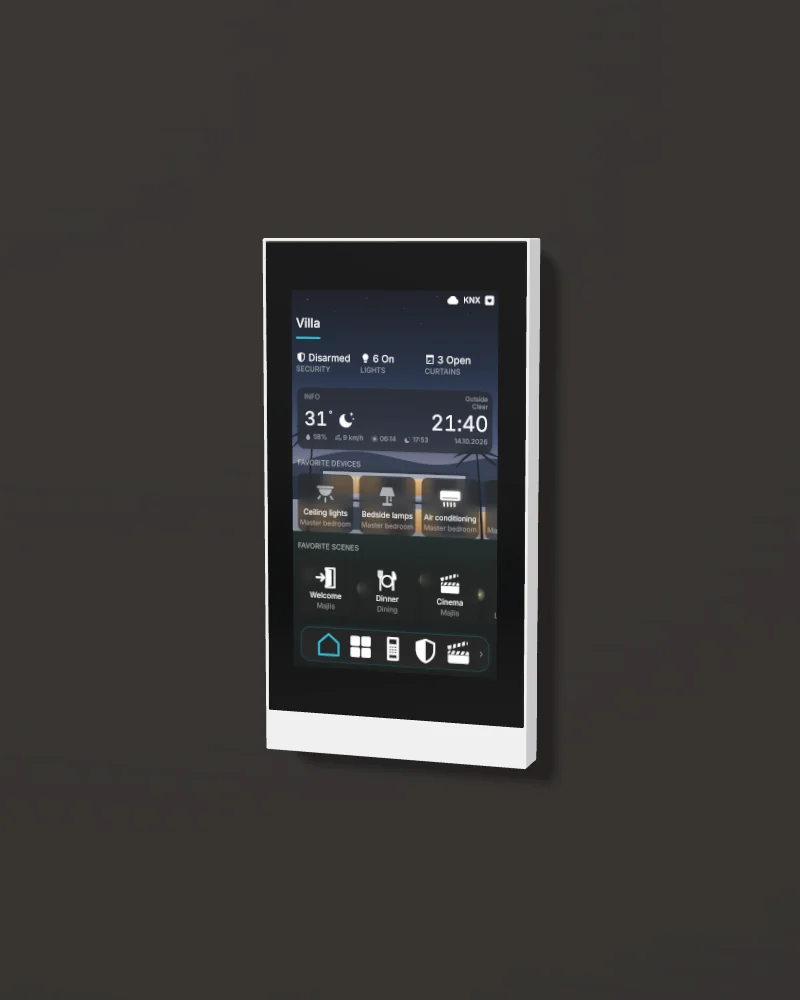

    Glacier white
    Finish 6

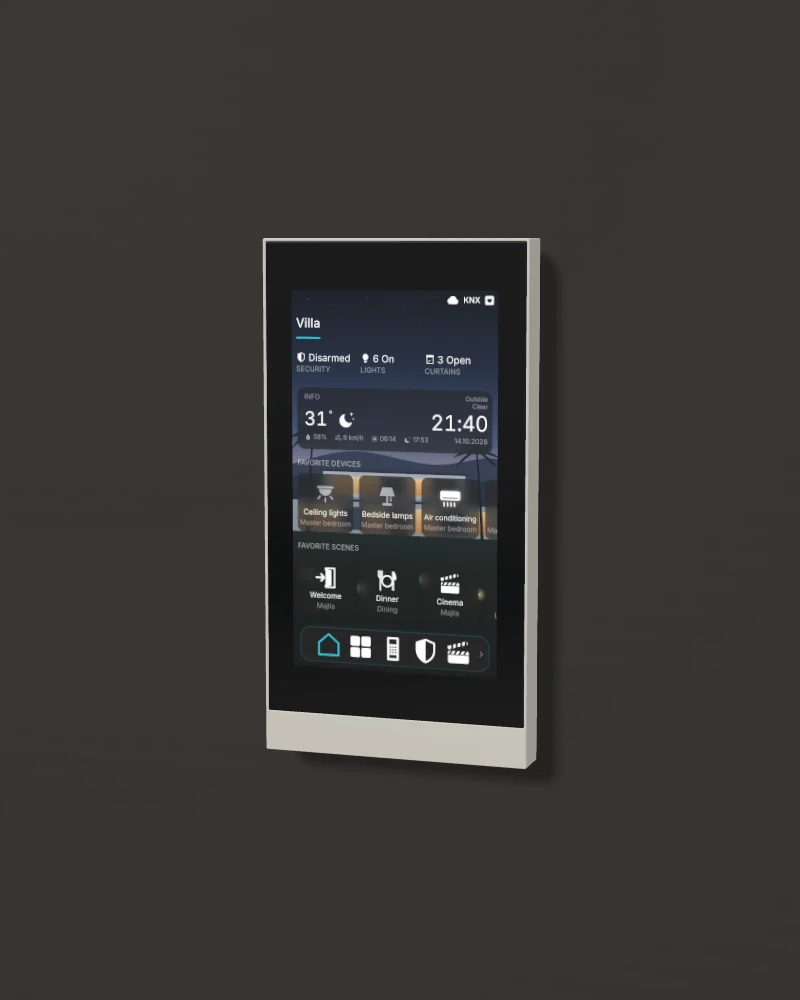

    Sand beige
    Finish 7

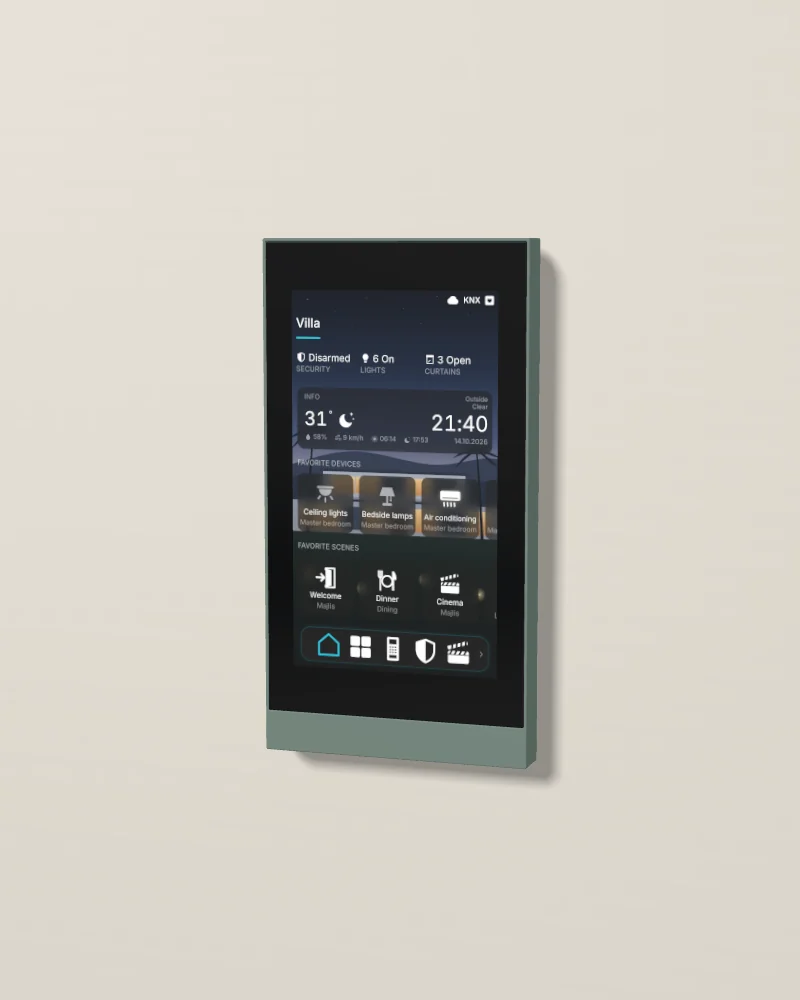

    Verdant
    Finish 8
    Cacao grey
    Finish 9

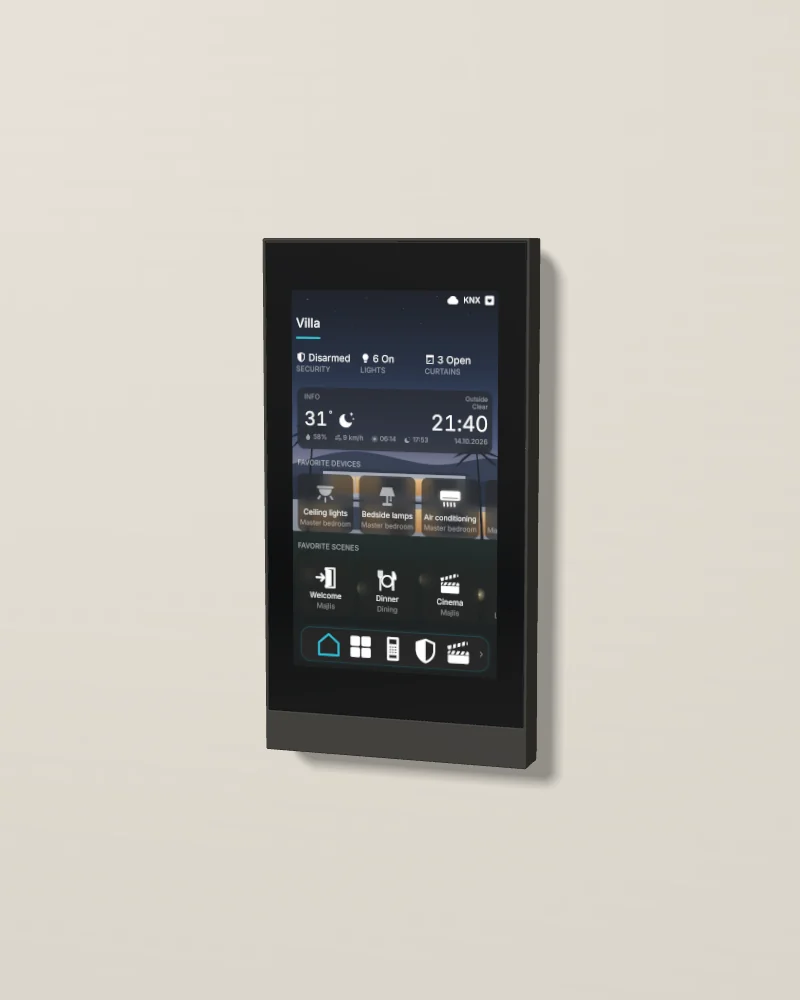

    Titanium grey
    Finish 10

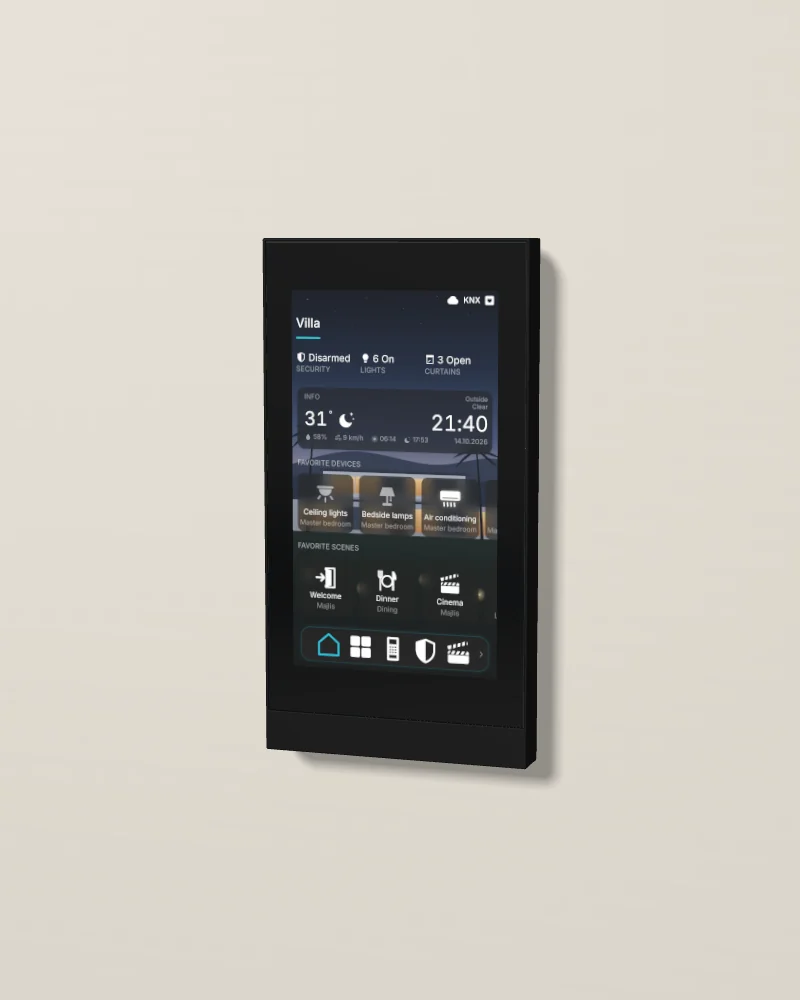

    Obsidian black

    Sources: Core's datasheet for the Eclipse 2.0 touch panels (version 2.2), its Eclipse touch panel page, its CoreOS 4.0 user manual (version 1.0) and its home controller touch panels presentation, read on 16 October 2026.
