Core Sockets
Eclipse Socket
Eclipse frame with UK socket outlets
A UK socket in a metal frame, in the same finishes as the Eclipse switches.
Finish Aluminium black
Ten frame finishes, as on the Eclipse switches. Pick the number of sockets below.
Sockets 1
No price on this page. Your bill prices it with your villa, in the finish you pick.
No brand photo yet
No brand photo yet
No photo of this finish yet. No photo of this one yet. Our 3D model. Drag to turn it; double-click to put it back.
Our 3D model, in aluminium black, with 1 socket.
- SocketsUK socket outlets, BS 1363
- FramesFrames for 1, 2 or 3 sockets
- FinishesTen Eclipse finishes
- MatchesMatches the Eclipse switches and thermostats
Design and materials
Core's frames take one, two or three inserts. Here each opening holds a UK socket outlet (BS 1363), so the sockets of a room match its Eclipse switches and thermostat in finish.
No brand photo yet
Brushed metal or silky matte
Four brushed finishes: aluminium in grey or black, brass and stainless steel. Six silky-matte finishes: aluminium painted in several layers and sealed, for a soft feel.
One frame for the room
The same metal and finish as the Eclipse switches and thermostat, so the sockets belong to the room.
Where it goes
Where the room needs power: by the bed, the desk and the television, and over the kitchen worktop. Your electrician sets each height to the local rules.
Specifications
01Mounting and size

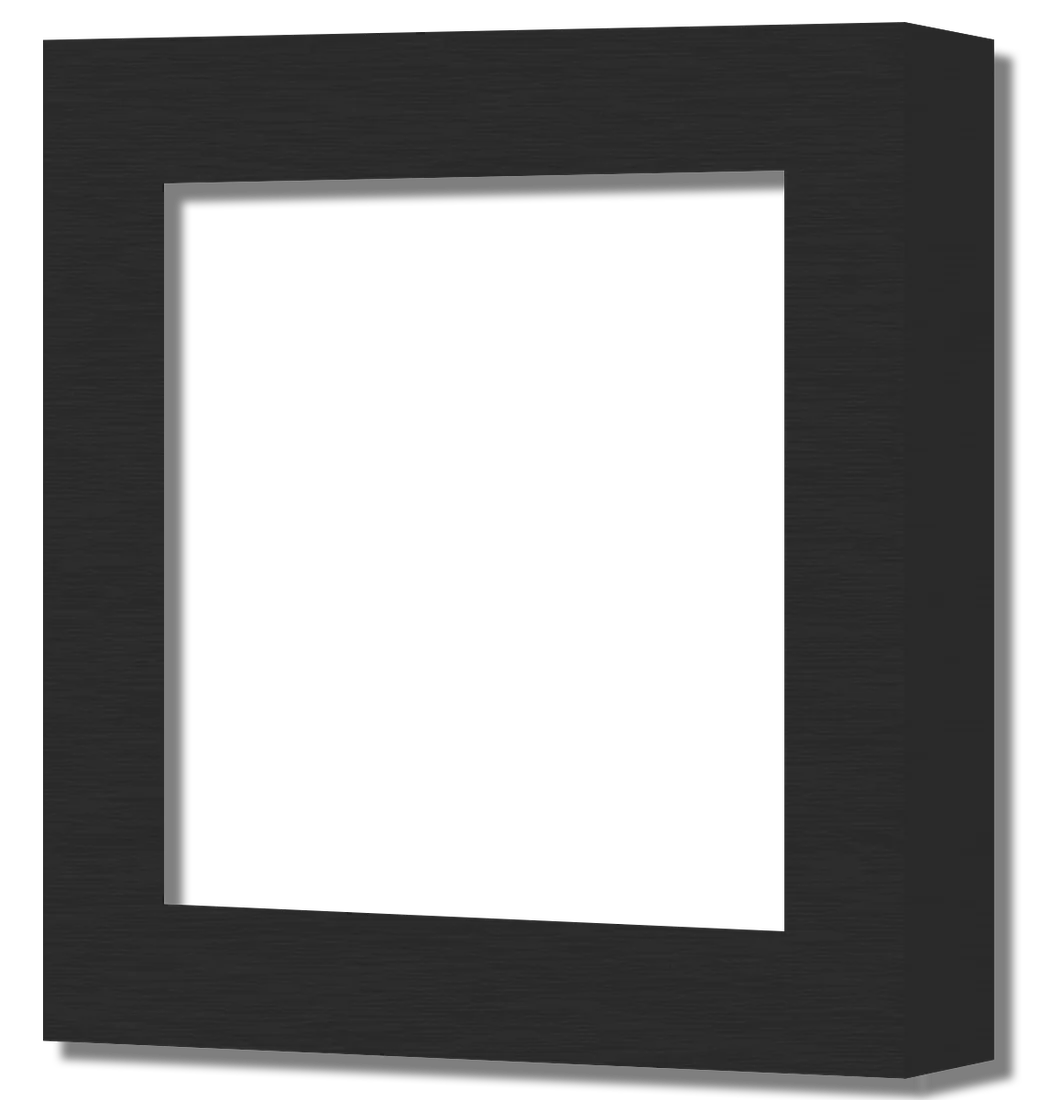

- Frame
- Metal, for 1, 2 or 3 inserts, in the ten Eclipse finishes (Core's media pack)
- Openings
- 55 mm; Core's pack also shows the frames with 45 mm openings
- Size
- 86 × 86 mm for one socket to confirm
- Finish names
- Brushed: aluminium black (ALB), aluminium grey (ALG), stainless steel (SST), brass (BRA). Silky matte: glacier white (GLW), sand beige (SBE), verdant (VRD), cacao grey (CCG), titanium grey (TTG), obsidian black (OBL). The names come from Core's catalogues and the codes from Core's media pack; the match of name to code is ours to confirm
02Connections
- Insert
- UK socket outlet to BS 1363, 13 A, one in each opening (the insert's maker to confirm) to confirm
03Finishes
- Finish 1
Aluminium black- Finish 2
Aluminium grey- Finish 3

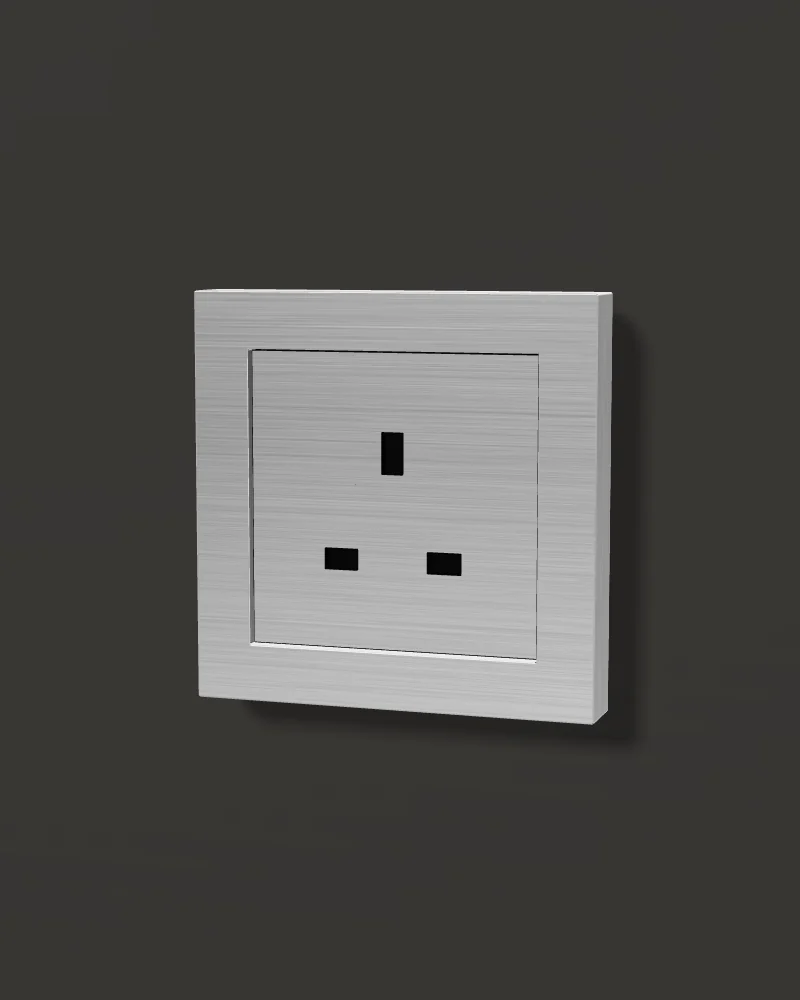

Stainless steel- Finish 4

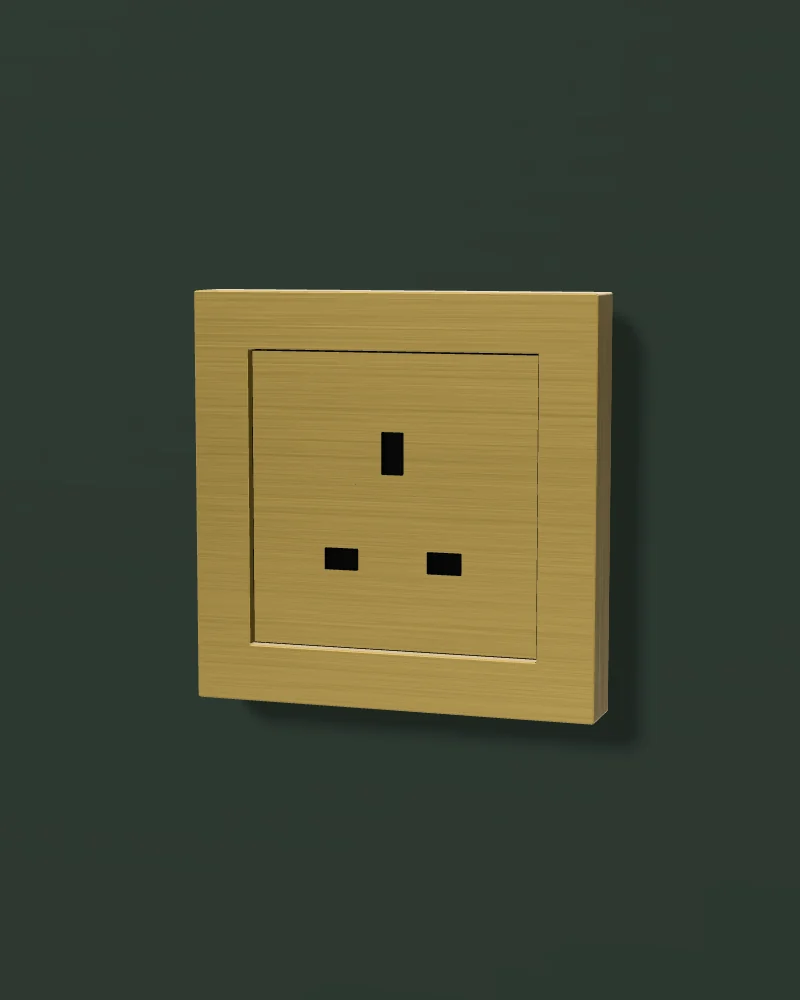

- Brass
- Finish 5

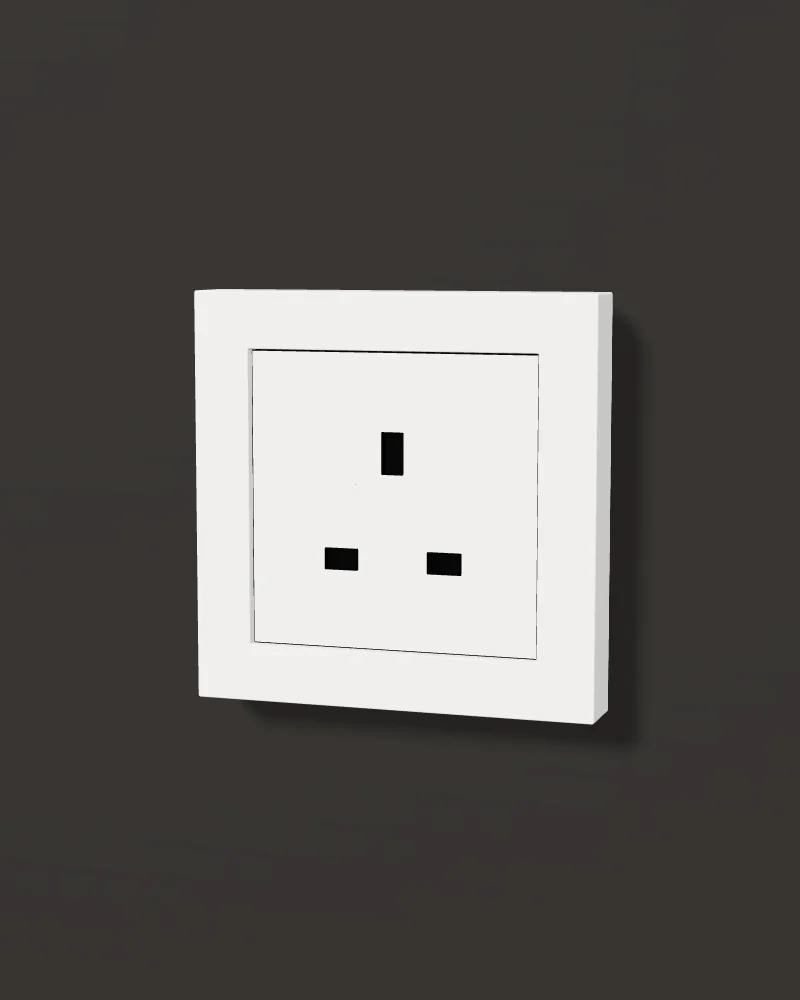

Glacier white- Finish 6

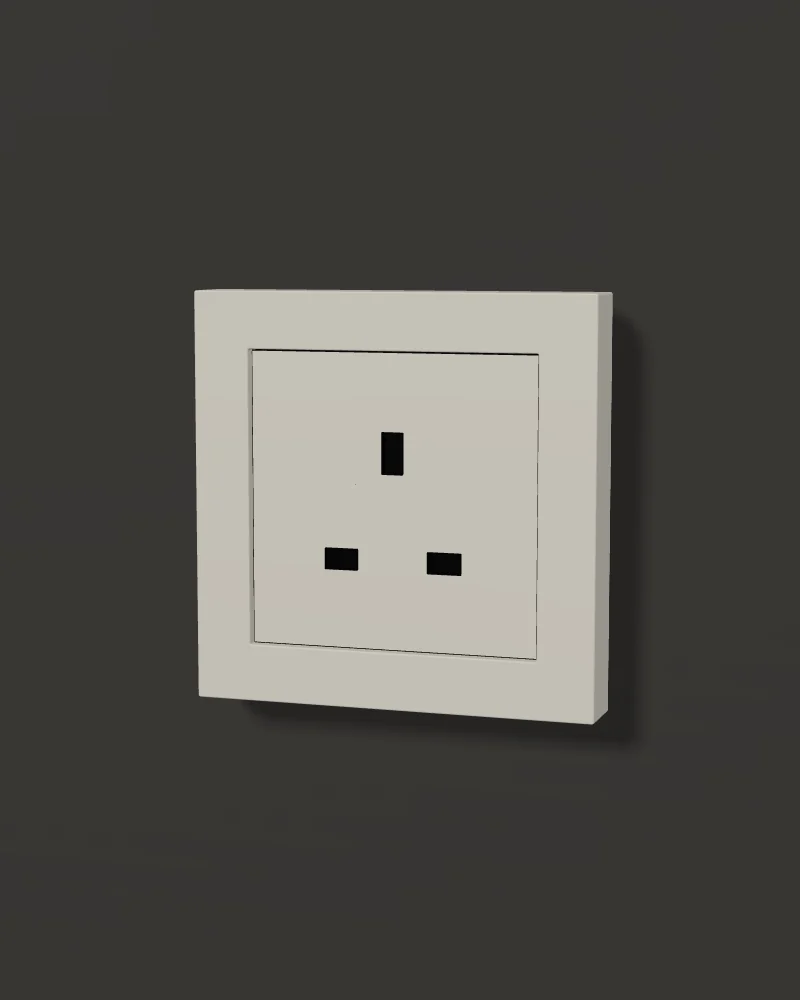

Sand beige- Finish 7

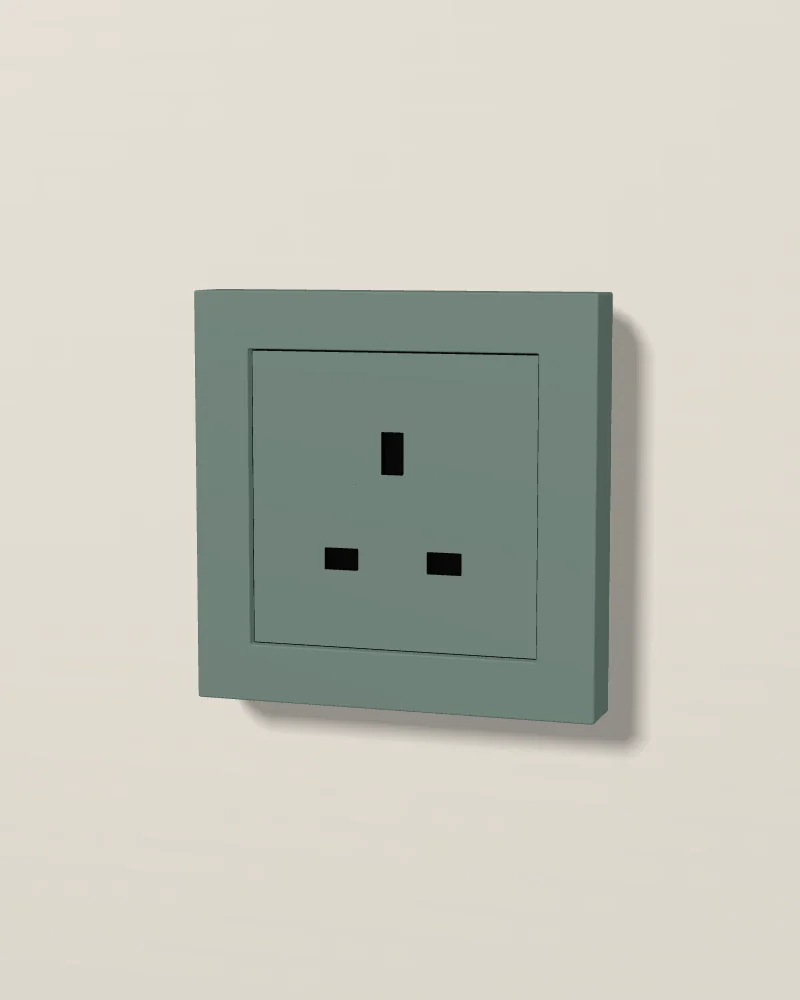

Verdant- Finish 8

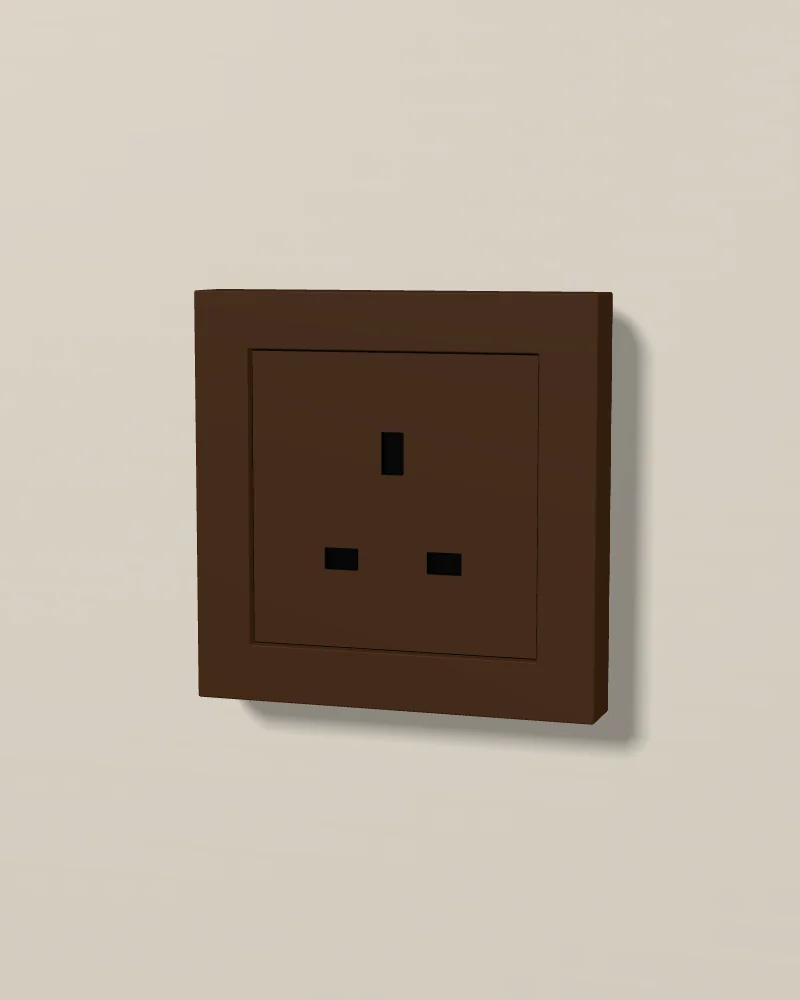

Cacao grey- Finish 9

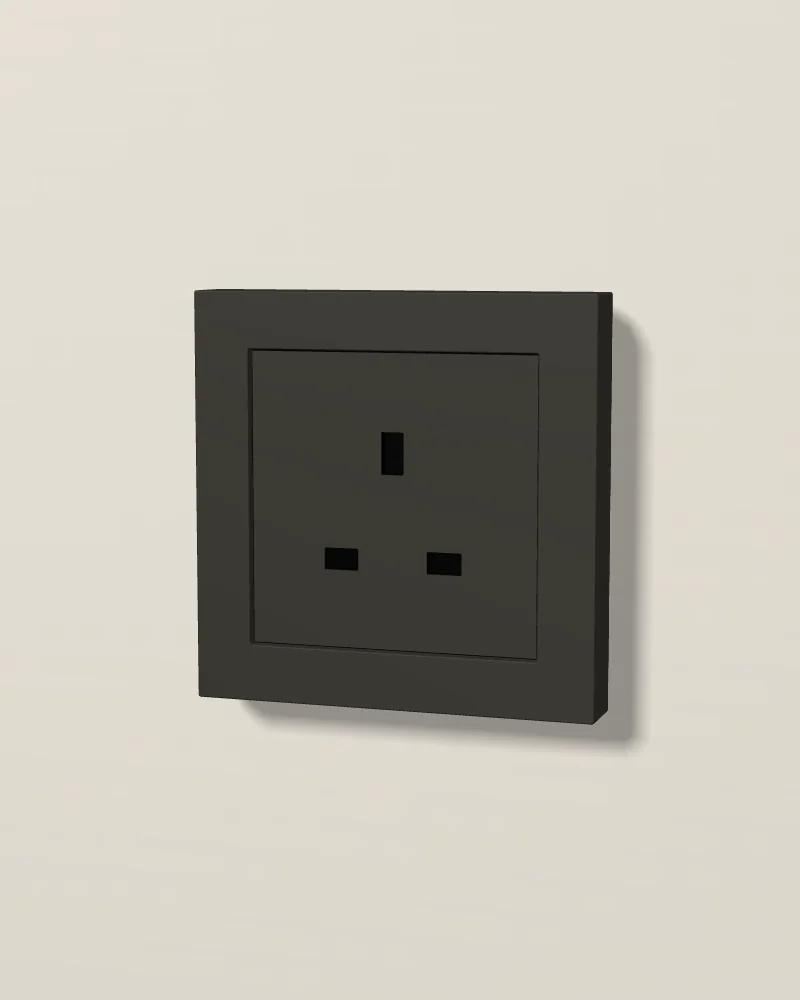

Titanium grey- Finish 10

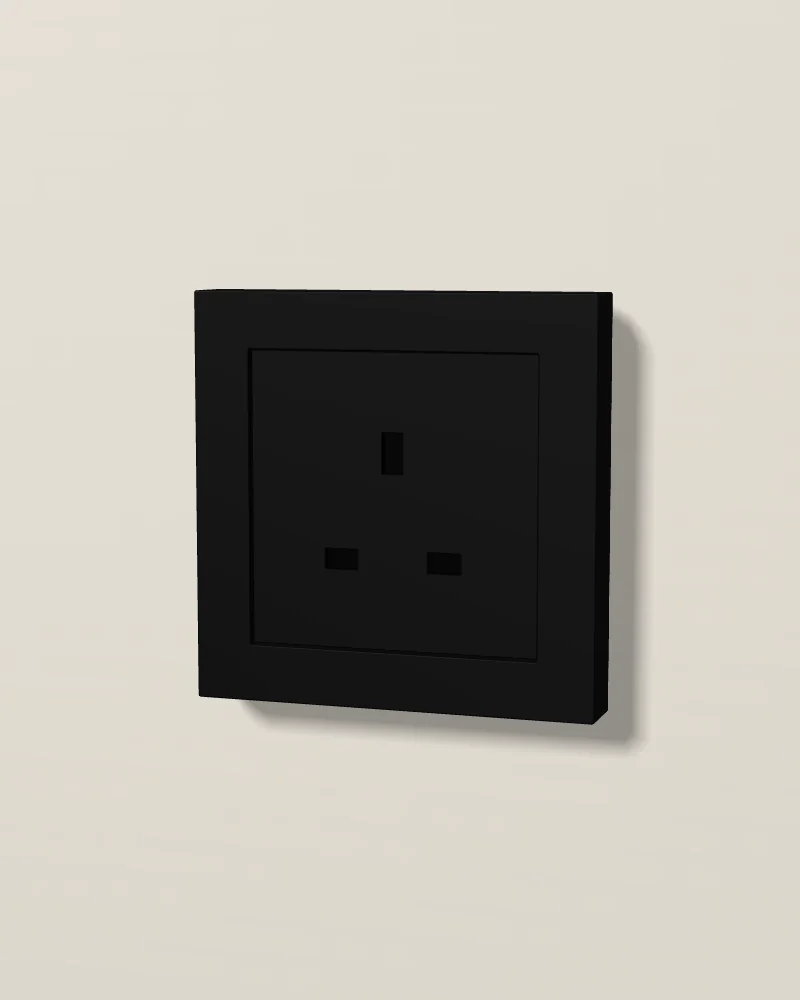

Obsidian black
Sources: Core's media pack (the frames and the finish codes) and Core's catalogues (the finish names), read on 15 October 2026.
