HyPanel Elite 10

PH59 (PH59-PoE, PH59-KNX, PH59-2)

A 10-inch screen for home control and video intercom, set landscape or portrait.

Finish Black

One finish: Akubela shows the Elite 10 in black.

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

Try the screen

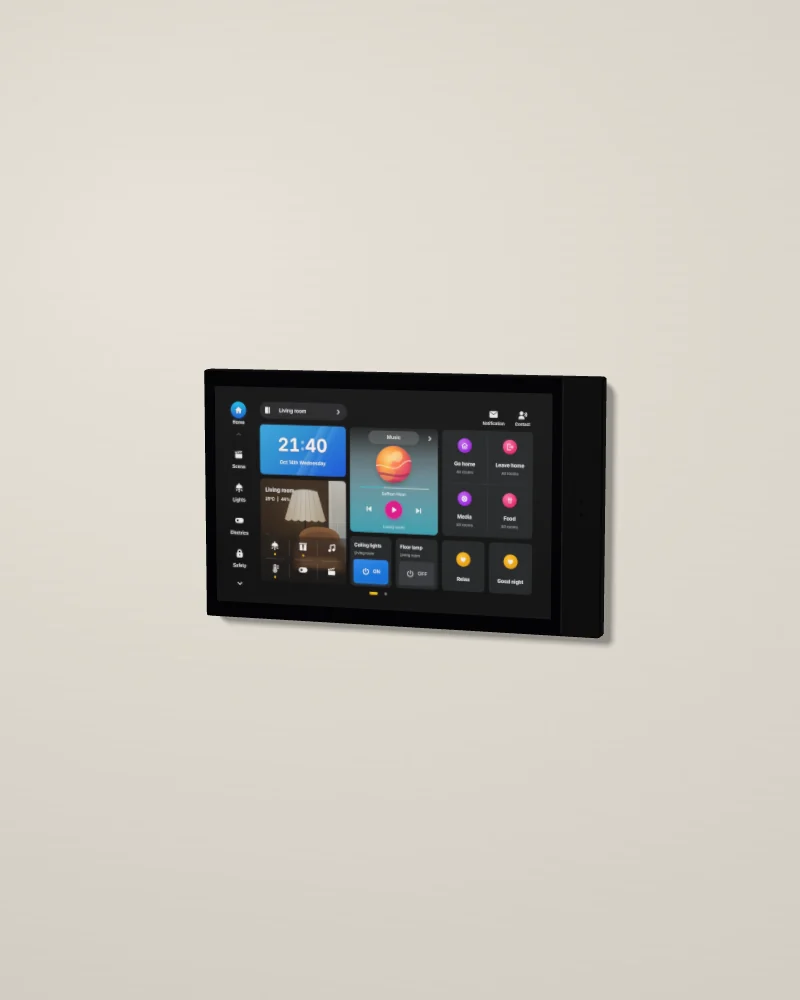

Akubela HyPanel Elite 10: black, from the front, Akubela's picture

Akubela's picture, 1 of 2: black, from the front.

  • Screen10-inch screen, 1280 × 800
  • MountingLandscape or portrait
  • VersionsPoE, KNX and 2-wire versions
  • IntercomSIP video calls between rooms and to the gate
1 finish

Design and materials

It comes in three versions: PoE for a mainly wireless home, KNX as its own KNX gateway, and 2-wire for intercom cable that is already in the wall. It makes video calls between the rooms and to the gate.

Akubela HyPanel Elite 10: black, from the front, Akubela's picture
Akubela's picture: black, from the front.

  • One sheet of glass

    One sheet of glass covers the screen and a speaker grille down the right side.

  • Fire-resistant body

    The body is V0 fire-resistant polycarbonate (Akubela's spec page).

Where it goes

The kitchen, the family room or the master bedroom, at about 1.4 m to the centre. Akubela gives 1.1 to 1.6 m to the bottom of the panel.

Akubela's interface, rebuilt by Homestat · a sample villa

Try the screen

This is the HyPanel Elite 10's home screen, set up for a sample villa with eight rooms. Use it as you would on the wall. Everything you change, the rest of the screen follows.

The HyPanel Elite 10's screen, as Homestat rebuilt it

Turn your phone sideways for a larger screen.

Demo villaThe sample villa

    This is the sample villa, cut open from the front. It changes when you use the screen. Tap a room to switch its lights on or off.

    Six things owners do every day

    1. Change the room to the master bedroom.
    2. Turn on the master bedroom lights from the room card.
    3. Play music, then skip to the next song.
    4. Run the Dinner scene.
    5. Call the kitchen panel from Contact.
    6. Call the gate and open it.

    0 of 6 done

    Homestat rebuilt this screen from Akubela's interface so you can try it here. The real screen differs in detail. Your installer sets up your own rooms, names and scenes.

    9 details · 5 groups

    Specifications

    01Display and system

    Screen
    10 inch, 1280 × 800, landscape or portrait

    02Connections

    Versions
    PH59-PoE, PH59-KNX, PH59-2 (2-wire)
    Wireless
    Wi-Fi 6, Zigbee 3.0
    Wired
    Ethernet, RS485, PoE 802.3af, IR
    Inputs and outputs
    8 inputs, 1 doorbell input, 1 relay

    03Intercom and sensors

    Intercom
    SIP 2.0 video calls

    04Mounting and size

    Body
    V0 fire-resistant plastic
    Colour
    Black, as Akubela shows it
    Mounting
    Wall plate on an EU, US or CN box

    05Finishes

    Finish
    Black

    Sources: Akubela's website and published documents, read on 13 October 2026. The datasheet from Akubela replaces every to confirm.
