ProductsAkubelaHyPanel Ultra

Akubela Whole home controllers

HyPanel Ultra

PH81 (PH81-ST, PH81-PoE-ST, PH81-KNX-EU)

A 10.36-inch screen in a metal frame that runs the whole villa and answers the door.

Finish Dark grey metal

One finish: Akubela makes the Ultra in dark grey metal.

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

Try the screen

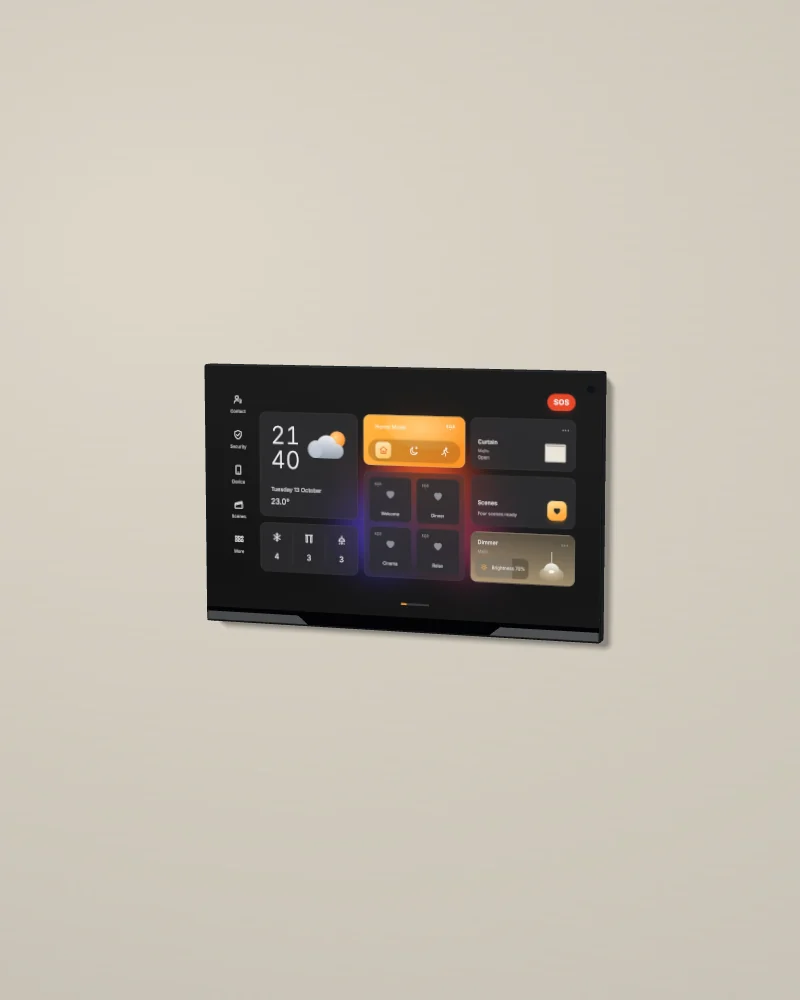

Akubela HyPanel Ultra: dark grey metal, from the front, Akubela's picture

Akubela's picture, 1 of 3: dark grey metal, from the front.

  • Screen10.36-inch screen, 2000 × 1200
  • WirelessZigbee hub for the wireless devices
  • IntercomVideo calls from the gate and the door
  • SystemAndroid 12
1 finish

Design and materials

Akubela's main wall screen. It runs the lights, shades, air conditioning, media, cameras and alarm, and it is the Zigbee hub for the wireless devices. It answers the gate and the door with video and opens them. It has proximity, light, temperature and humidity sensors, and it won a Red Dot design award in 2025.

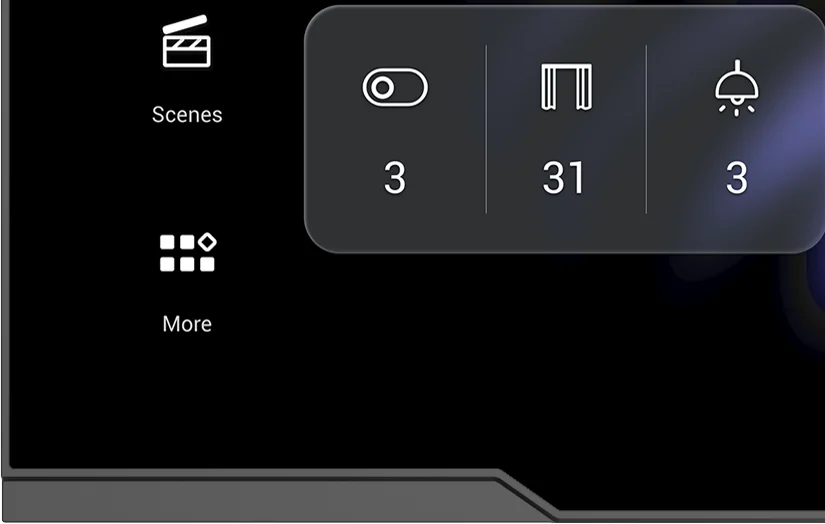

Akubela HyPanel Ultra: dark grey metal, Close-up of the lower edge, cut from Akubela's picture
Close-up of the lower edge, cut from Akubela's picture: dark grey metal.

  • Dark grey metal frame

    A metal frame in dark grey, as Akubela describes it. It is thicker along the bottom edge, where the glass dips into it.

  • Screen to the edge

    10.36 inches at 2000 × 1200, with thin borders. Akubela gives the Ultra the proportions 1 : 0.618, the golden ratio.

  • Red Dot design award, 2025

    The Ultra won a Red Dot award for product design in 2025.

Where it goes

The entrance hall or the main living area, at about 1.4 m to the centre, where the family passes every day.

Akubela's interface, rebuilt by Homestat · a sample villa

Try the screen

This is the HyPanel Ultra's home screen, set up for a sample villa with eight rooms. Use it as you would on the wall. Everything you change, the rest of the screen follows.

The HyPanel Ultra's screen, as Homestat rebuilt it

Turn your phone sideways for a larger screen.

Six things owners do every day

  1. Put the house in Night mode.
  2. Open the majlis curtain halfway.
  3. Dim the majlis light to about 40%.
  4. Run the Cinema scene.
  5. Call the gate and open it.
  6. Arm the alarm for Away.

0 of 6 done

Homestat rebuilt this screen from Akubela's interface so you can try it here. The real screen differs in detail. Your installer sets up your own rooms, names and scenes.

10 details · 5 groups

Specifications

01Display and system

Screen
10.36 inch, 2000 × 1200
System
Android 12

02Connections

Wireless
Wi-Fi 6, Bluetooth 5.0, Zigbee 3.0
Wired
Ethernet, RS485; PoE on the PoE version
Versions
PH81-ST, PH81-PoE-ST, PH81-KNX-EU (KNX)

03Intercom and sensors

Intercom
Video calls from the gate and the door, and door release. No camera on the panel.
Sensors
Proximity, light, temperature and humidity

04Mounting and size

Mounting
Flush, on an EU, UK or US back box
Frame
Dark grey metal
Size
245 × 156 × 10 mm to confirm

05Finishes

Finish
Dark grey metal

Sources: Akubela's website and published documents, read on 13 October 2026. The datasheet from Akubela replaces every to confirm.
