Akubela Room controllers
HyPanel Lux Piano
RT61 (relay, dimmer, PoE and KNX versions)
A 2.1-inch screen with a faceted metal knob and four glass buttons, in place of a light switch.
Finish Silver
Akubela showed the Lux in silver, gold, green and black in 2023. The colour names are to confirm.
No price on this page. Your bill prices it with your villa, in the finish you pick.
No brand photo yet
No brand photo yet
No brand photo yet
No photo of this finish yet. Our 3D model. Drag to turn it; double-click to put it back.

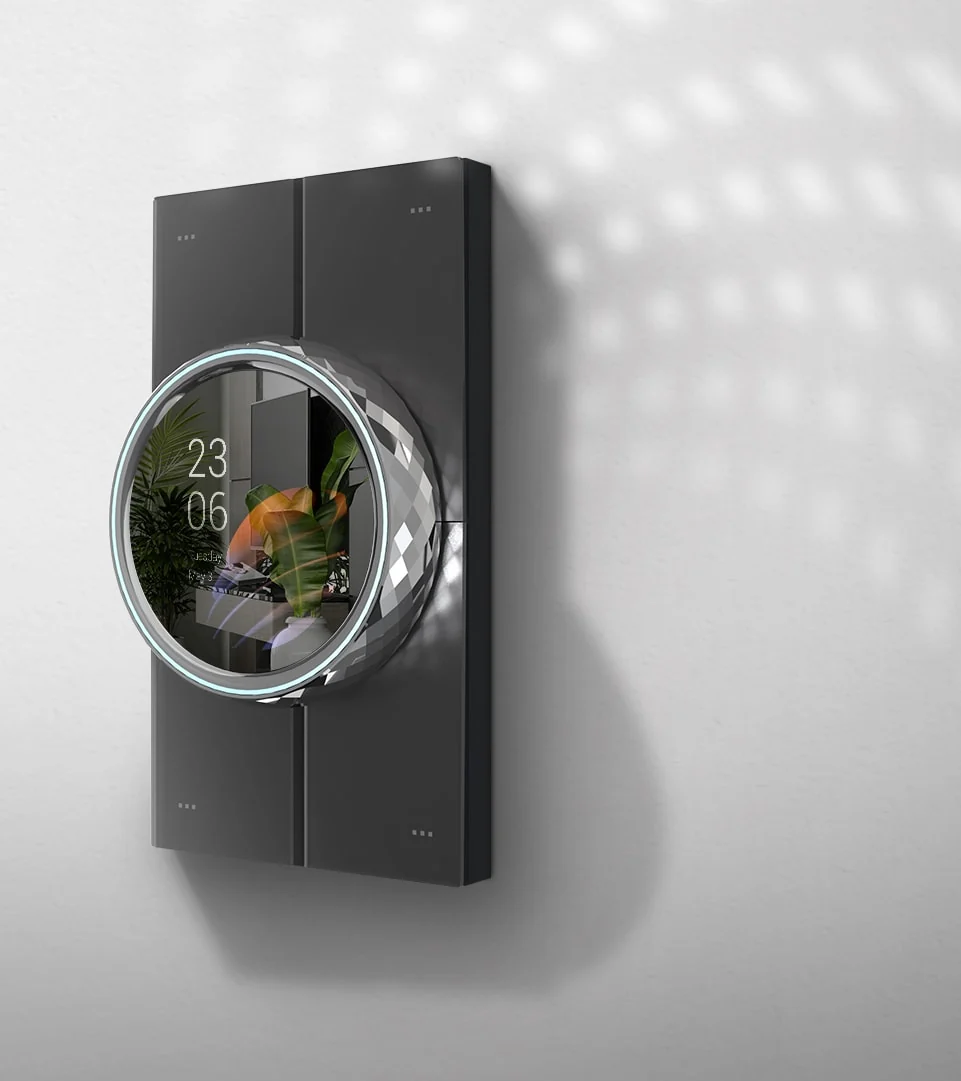

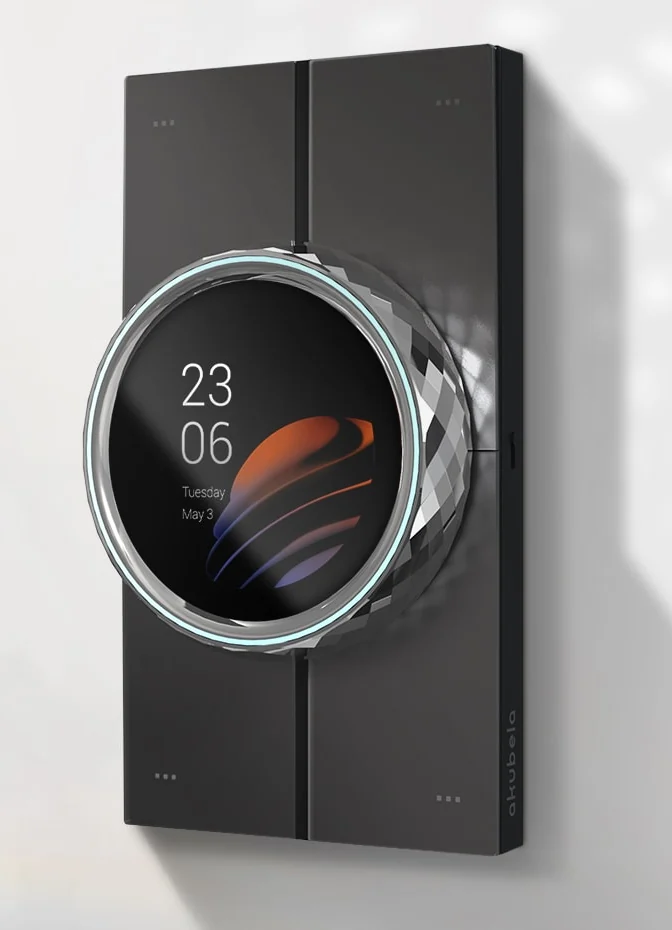

Akubela's picture, 1 of 3: silver, from the front.
- Screen2.1-inch round screen, 480 × 480
- KnobA faceted metal knob that turns
- ButtonsFour glass buttons
- VersionsRelay, dimmer, PoE and KNX versions
Design and materials
It takes the place of a wall switch and also runs the smart home: intercom, scenes, a Zigbee gateway, security, and temperature and humidity sensing. The versions switch a 2-gang relay or a dimmer, or run on PoE or KNX.
No brand photo yet

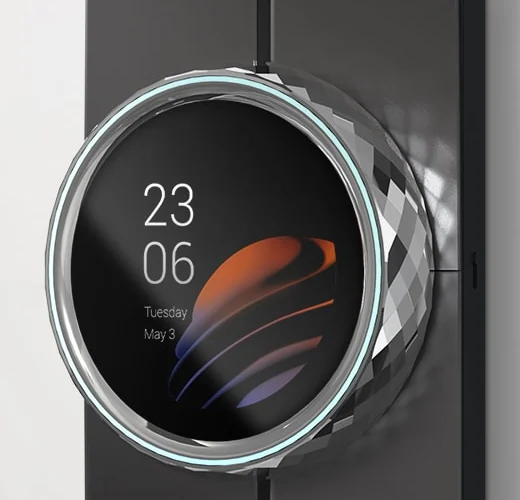

Faceted metal knob
The knob around the screen is metal, cut with 360 diamond facets, and it turns as a rotary control (Akubela's page).
Anti-glare glass buttons
The four buttons are AG (anti-glare) glass, on a V0 fire-resistant polycarbonate body (Akubela's spec page).
Where it goes
By the door of the majlis or the master bedroom, where a light switch would go.
Try the screen
This is the HyPanel Lux Piano's screen, set up for the majlis of a sample villa. Use it as you would on the wall. Everything you change, the rest of the screen follows.
Demo roomMajlis
This is the majlis of the sample villa. It changes when you use the screen. You can also tap the chandelier, the wall lights, the LED strip, the curtains or the air conditioning in the drawing. Then the screen changes too.
Six things owners do every day
- Turn the knob to dim the majlis light to about 40%.
- Swipe to the climate page and turn the knob to 22°.
- Close the majlis curtain.
- Run the Relax scene.
- Press "Make the gate ring", then answer and open the gate.
- Press the lower-right glass button to turn every light off.
0 of 6 done
Homestat rebuilt this screen from Akubela's interface so you can try it here. The real screen differs in detail. Your installer sets up your own rooms, names and scenes.
Specifications
01Display and system
- Screen
- 2.1 inch, 480 × 480
- Controls
- Touch screen, a metal rotary knob and 4 glass buttons
02Connections
- Versions
- RT61-R2-EU (2-gang relay), RT61-D1-EU (dimmer), RT61-PoE-EU, RT61-KNX-EU
- Wireless
- Wi-Fi, Bluetooth 4.2, Zigbee 3.0
03Mounting and size
- Body
- V0 fire-resistant plastic, glass buttons, metal knob
- Colours
- Silver, gold, green and black, as Akubela showed them in 2023 (names to confirm) to confirm
- Mounting
- Flush, in an EU or UK back box, 50 mm deep
04Finishes
- Finish 1

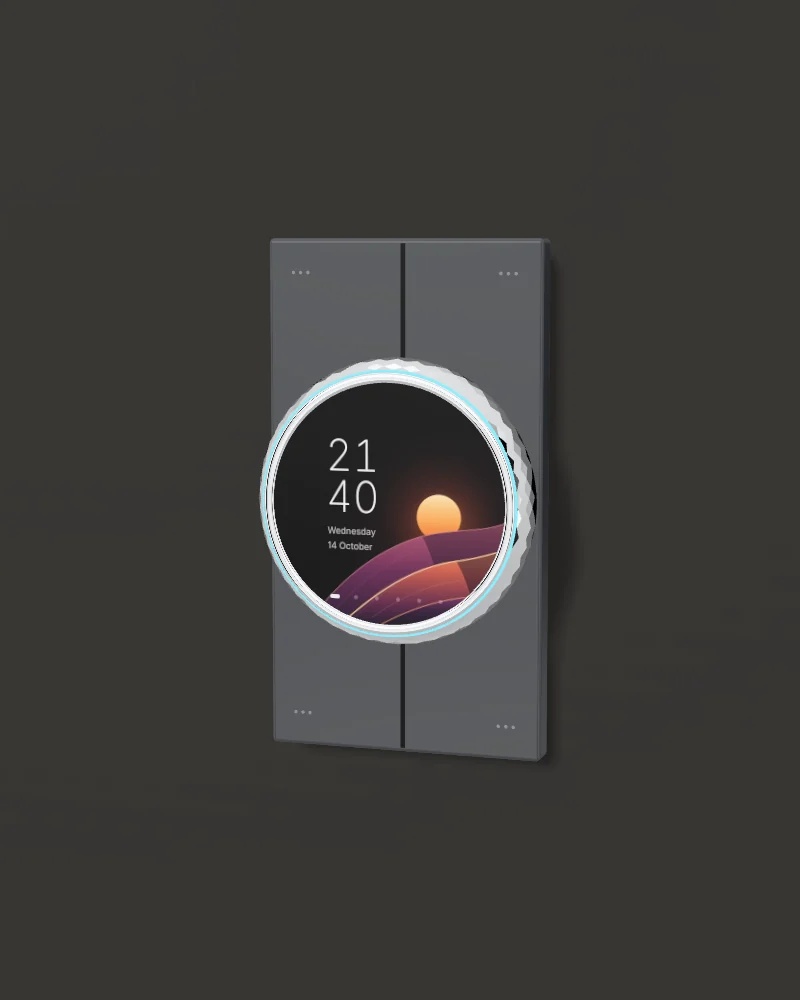

Silver- Finish 2

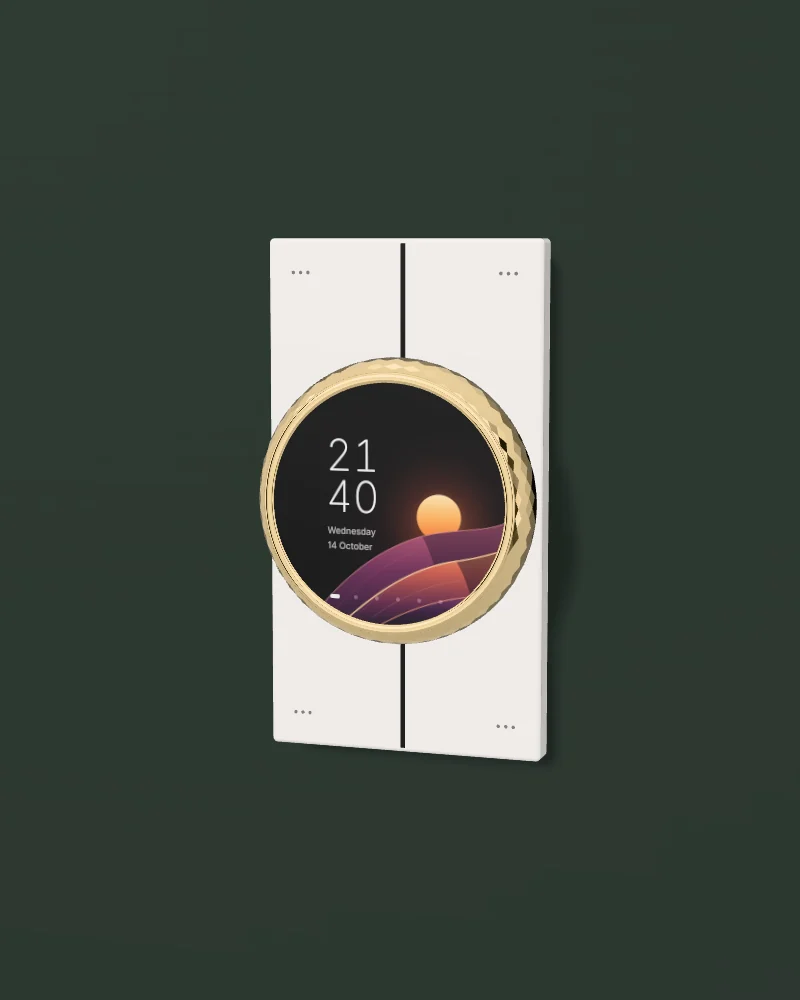

- Gold
- Finish 3

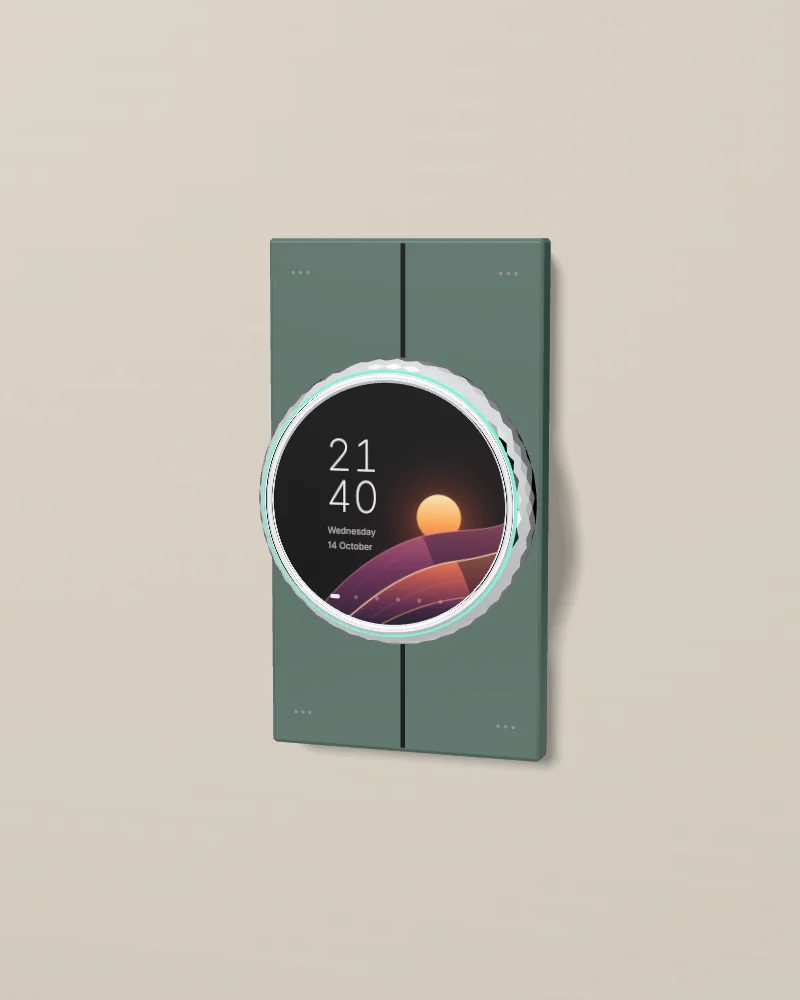

Green- Finish 4

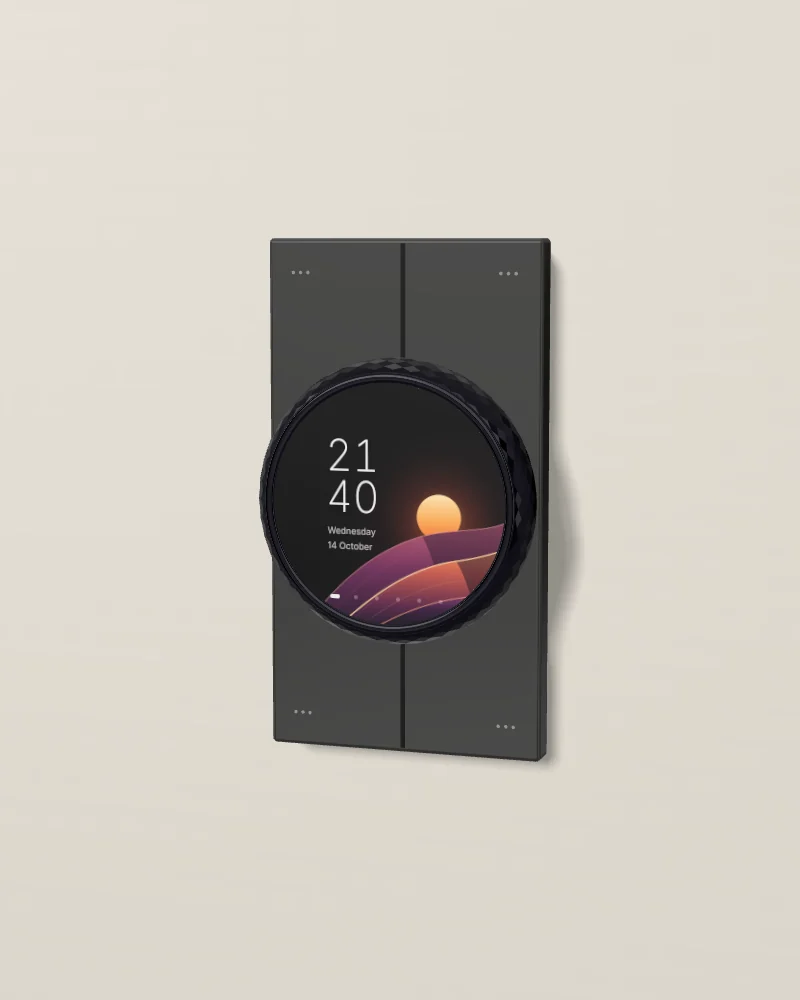

Black
Sources: Akubela's website and published documents, read on 13 October 2026. The datasheet from Akubela replaces every to confirm.
