ProductsZennioZ100

Zennio Whole home controllers

Z100

ZVIZ100

A 10-inch KNX touch panel for the whole home, with optional video intercom.

Finish White

Three finishes: white, silver and anthracite black (Zennio's datasheet).

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

Try the screen

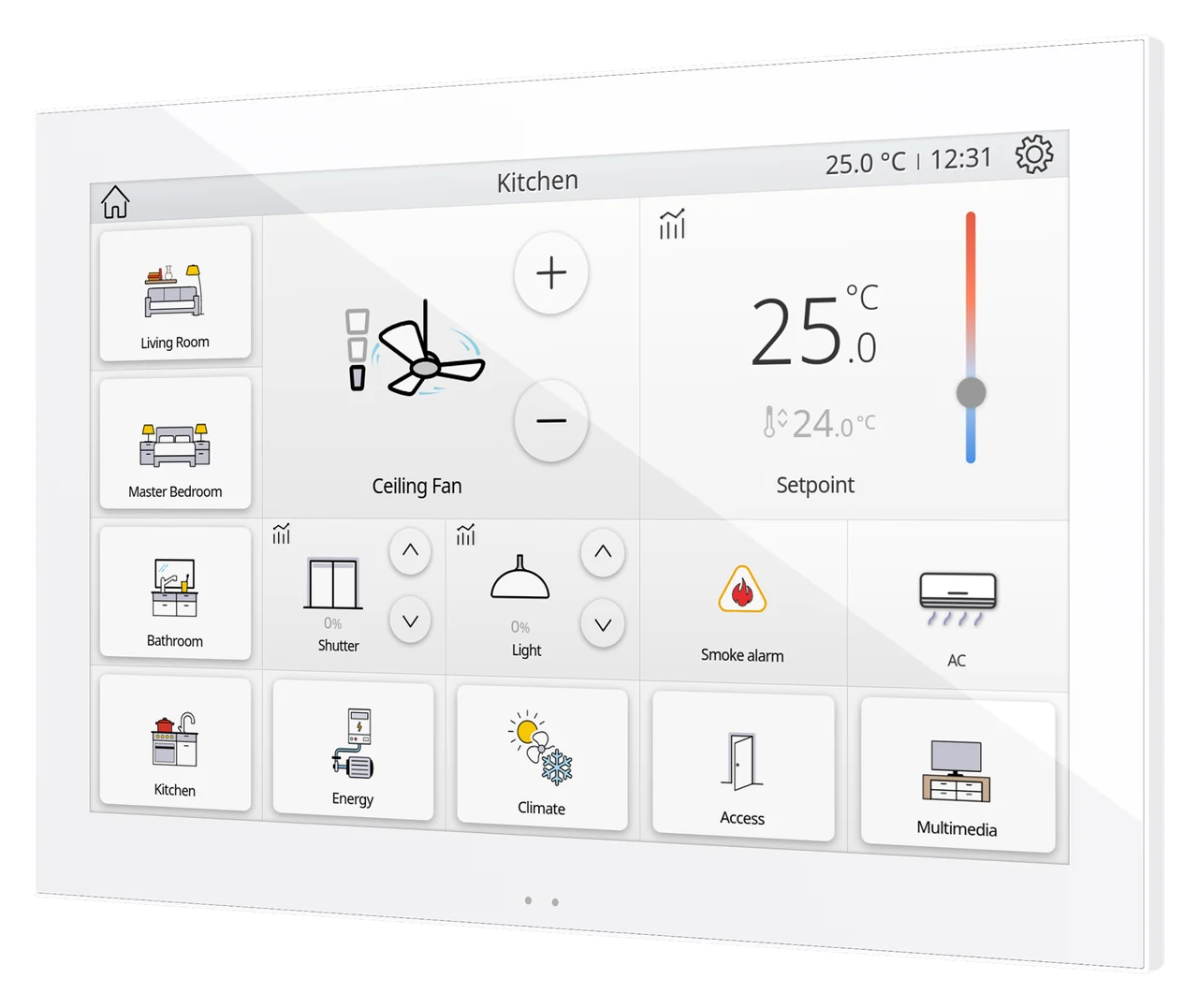

Zennio Z100: white, three-quarter view, light theme on the screen, Zennio's picture

Zennio's picture, 1 of 3: white, three-quarter view, light theme on the screen.

  • Screen10-inch touch screen, 1280 × 800
  • IntercomVideo intercom and calls between panels (with a licence)
  • Inputs and climateFour inputs and two thermostats
  • ConnectionKNX bus coupler built in; Ethernet
3 finishes · 248.9 × 174 mm

Design and materials

A landscape touch panel that runs the whole home: every room's lights, curtains and air conditioning, the scenes, the alarm, music and the intercom. With the video intercom licence, it answers the gate and the doors with video and shows IP cameras. A proximity sensor wakes the screen when a hand comes near. The KNX bus coupler is built in, and Ethernet carries the video.

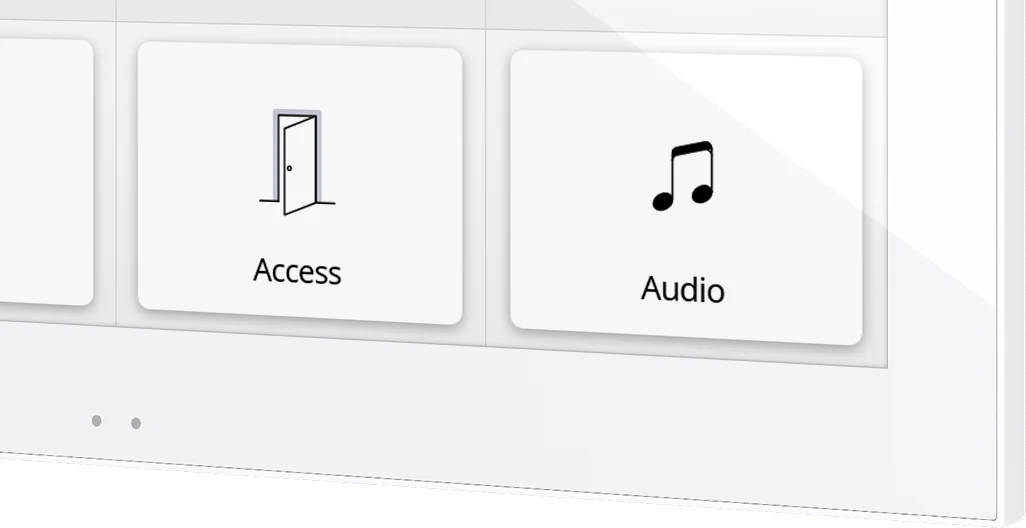

Zennio Z100: white, Close-up of the lower edge and the glass, cut from Zennio's picture
Close-up of the lower edge and the glass, cut from Zennio's picture: white.

  • One smooth front

    The screen and the border sit under one glossy front, as Zennio's photos show. Two small sensor windows below the screen wake it.

  • A slim body

    It stands 11.8 mm in front of the wall. The body is PC+ABS, flame retardant and halogen free.

Where it goes

The family room, the kitchen or the master bedroom, at about 1.4 m to the centre. It fits a double European or double British back box, and it needs a 24 V DC supply and Ethernet there.

Zennio's interface, rebuilt by Homestat · a sample villa

Try the screen

This is the Z100's home screen, set up for a sample villa with eight rooms. Use it as you would on the wall. Everything you change, the rest of the screen follows.

The Z100's screen, as Homestat rebuilt it

Turn your phone sideways for a larger screen.

Demo villaThe sample villa

    This is the sample villa, cut open from the front. It changes when you use the screen. Tap a room to switch its lights on or off.

    Six things owners do every day

    1. Close the living room curtains.
    2. Open the majlis and dim the chandelier to about 40%.
    3. Set the majlis air conditioning to 22°.
    4. Run the Dinner scene.
    5. Arm the alarm for Away with the code 1234.
    6. Press "Make the gate ring", then answer and open the gate.

    0 of 6 done

    Homestat rebuilt this screen from Zennio's interface so you can try it here. The real screen differs in detail. The gear opens the settings, where you can change to the dark theme. Your installer sets up your own rooms, names and scenes.

    15 details · 5 groups

    Specifications

    01Display and system

    Screen
    10 inch, 1280 × 800, colour capacitive touch
    Model
    ZVIZ100
    Controls
    Two independent thermostats; clock with NTP
    Licences
    App control, voice control, video intercom and internal calls: licences sold separately

    02Connections

    Connection
    KNX TP1 (bus coupler built in) and Ethernet (RJ-45)
    Inputs and outputs
    4 analogue or digital inputs: temperature probes, motion sensors or switches
    Power
    24 to 29 V DC from an external supply: 500 mA at 24 V

    03Intercom and sensors

    Intercom
    Video intercom and IP cameras over SIP (H.264 and MJPEG video)
    Sensors
    Proximity and light level; a temperature probe for the panel itself
    Audio
    Loudspeakers for sound notifications; microphone

    04Mounting and size

    Mounting
    Flush, on a double European or double British back box, held by clips
    Size
    248.9 × 174 × 39.2 mm; 11.8 mm in front of the wall
    Body
    PC+ABS, flame retardant (V0), halogen free; 693 g
    Rating
    IP20, indoors; 5 to 45 °C
    Colours
    White (RAL 9016), silver (RAL 9006), anthracite black (RAL 9004)

    05Finishes

    Finish 1

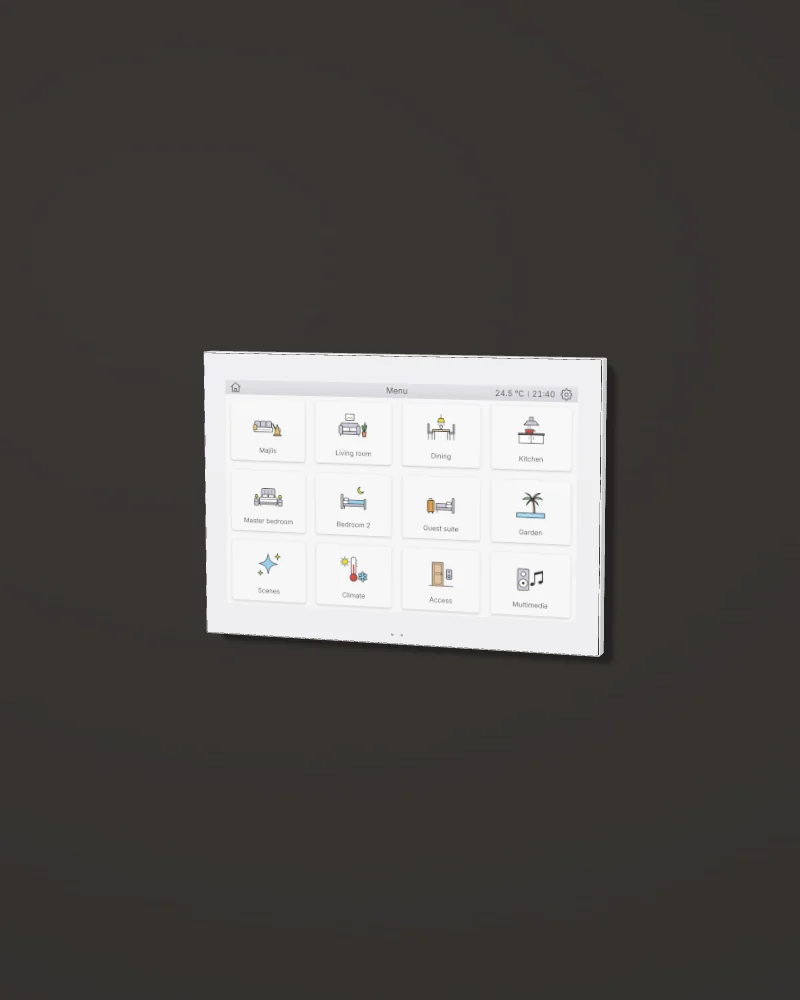

    White
    Finish 2

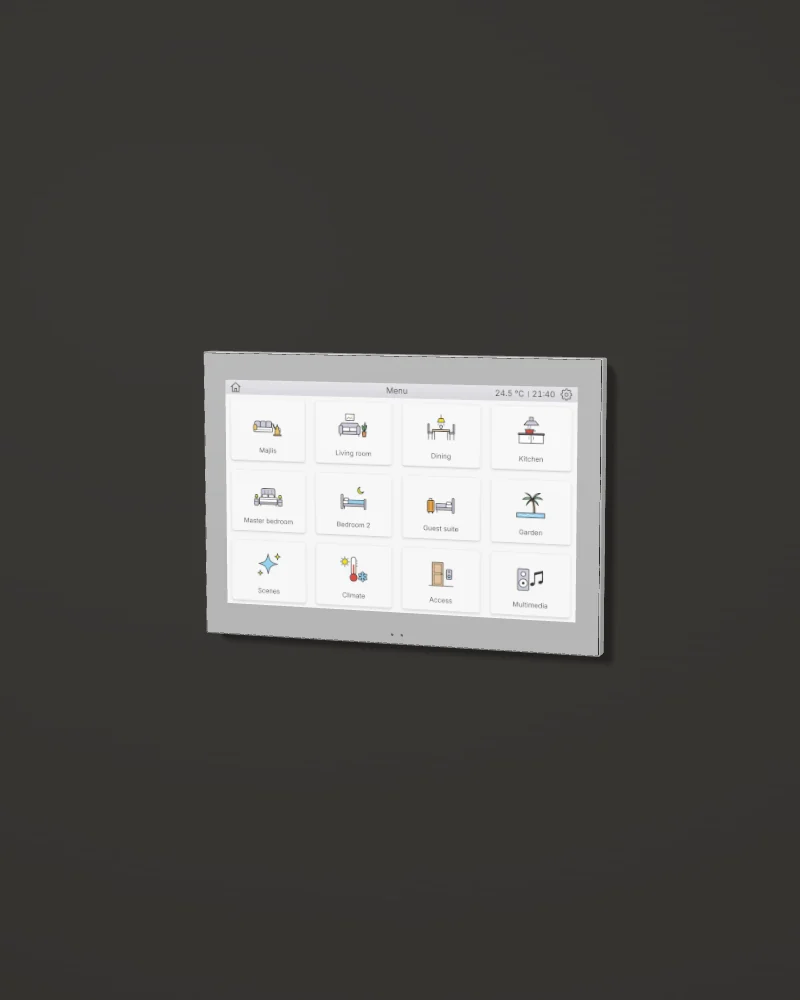

    Silver
    Finish 3

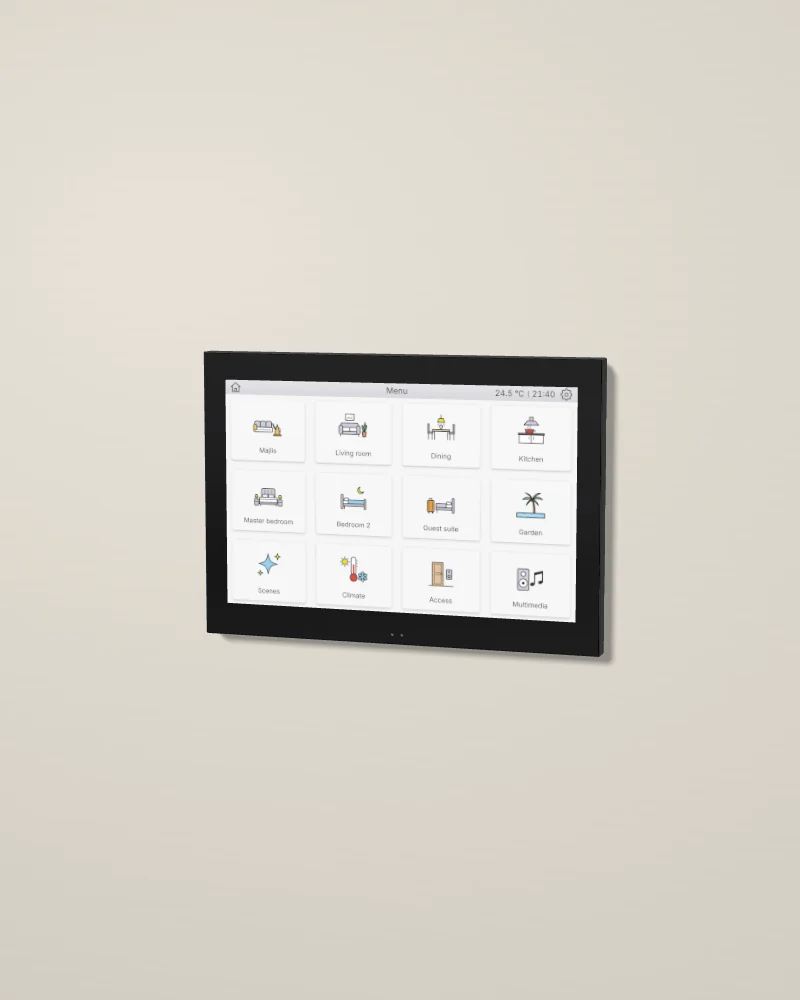

    Anthracite black

    Sources: Zennio's datasheet for the Z100 (edition 7) and Zennio's finishes page, read on 15 October 2026.
