Zennio Switches
Flat RGB
ZVIFR1, ZVIFR2, ZVIFR4, ZVIFR6, ZVIFR8
A KNX push button under one sheet of printed glass, with 1 to 8 touch areas and a colour backlight.
Finish Anthracite black
Three glass colours, as in Zennio's photos. Zennio's finishes page lists more colours for the Flat family; ask us for the colour you need.
Buttons 4
No price on this page. Your bill prices it with your villa, in the finish you pick.
No brand photo yet
No brand photo yet
No photo of this finish yet. No photo of this one yet. Our 3D model. Drag to turn it; double-click to put it back.

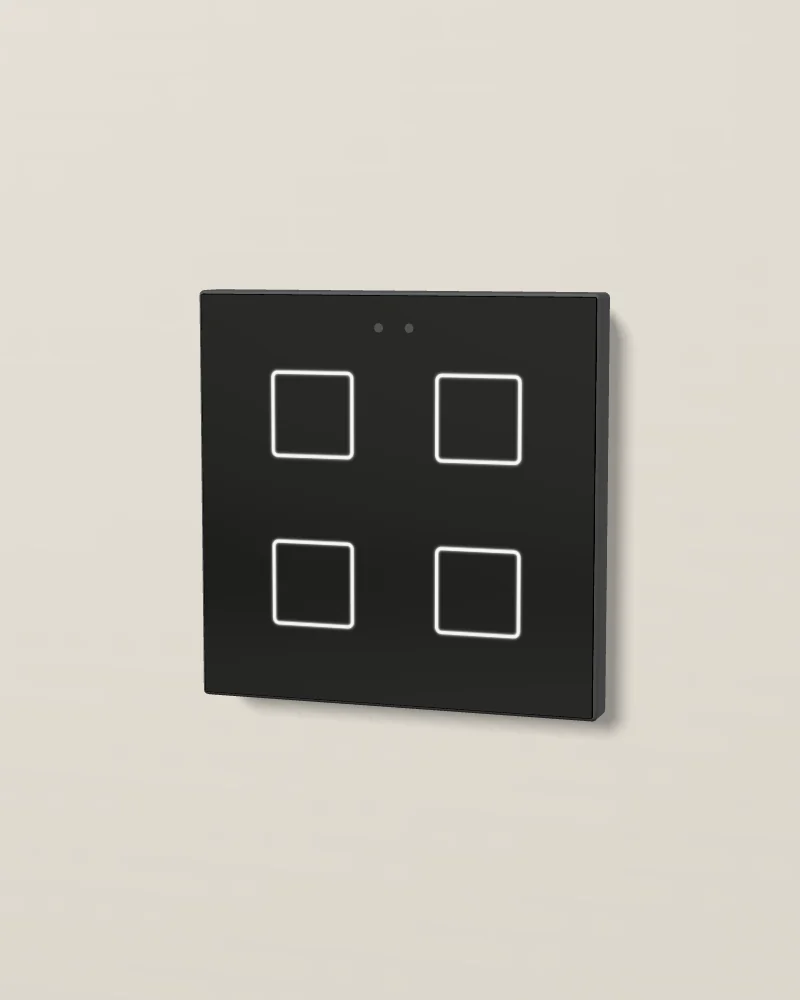

Zennio's picture, 1 of 2: anthracite black, 4 buttons, slight three-quarter view.
- FrontOne sheet of printed glass
- Touch areas1, 2, 4, 6 or 8 touch areas with an RGB backlight
- SensorsThermostat, temperature and proximity sensors
- PowerPowered by the KNX bus; KNX Data Secure
Design and materials
A capacitive push button behind one sheet of printed glass, with 1, 2, 4, 6 or 8 touch areas. A colour backlight draws each area, and you design the print in Zennio's web application. It has a thermostat, a temperature sensor and a proximity sensor, and a short sound confirms each touch. It takes its power from the KNX bus and supports KNX Data Secure.
No brand photo yet
Printed glass
One flat sheet of glass covers the whole front. You design its print in Zennio's web application, and the backlight draws each touch area in any colour.
Nothing stands out

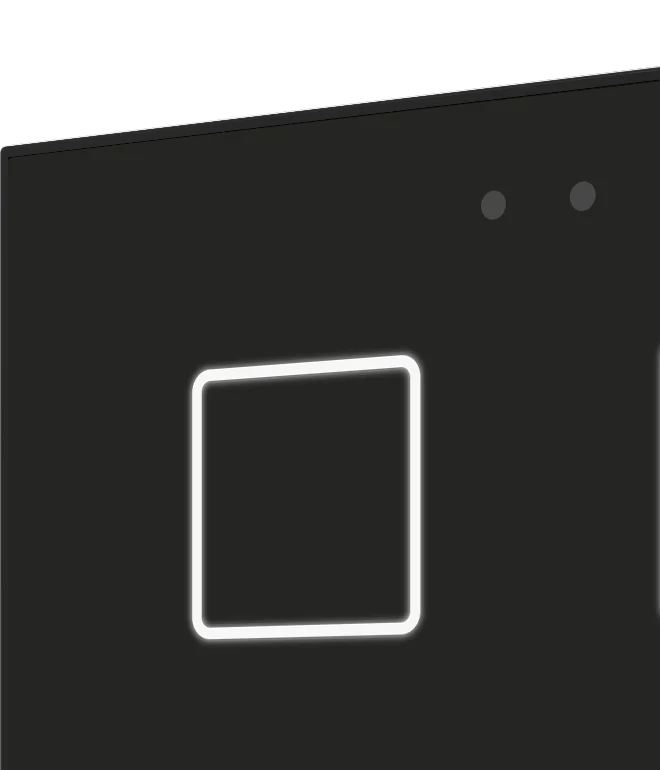

No button stands proud of the glass. Two small sensor windows sit at the top.
Powered by the bus
It needs no power supply of its own: the KNX bus powers it.
Where it goes
By the door of each room, on the latch side, at 1.2 m to the centre. It mounts portrait or landscape.
Specifications
01Display and system
- Model
- ZVIFR1, ZVIFR2, ZVIFR4, ZVIFR6 and ZVIFR8 (1, 2, 4, 6 and 8 buttons)
- Controls
- 1, 2, 4, 6 or 8 touch areas, each with an RGB backlight; the glass print designed in Zennio's web application
02Connections
- Connection
- KNX TP1, powered by the bus; KNX Data Secure
- Inputs and outputs
- 2 analogue or digital inputs: a temperature probe, a motion sensor or a switch
03Intercom and sensors
- Sensors
- Temperature and proximity; thermostat
- Audio
- A sound confirms each touch
04Mounting and size
- Mounting
- Flush, portrait or landscape, on a standard European, Italian, Australian or American back box
- Size
- 81.9 × 81.9 × 36.5 mm; 9 mm in front of the wall
- Body
- Printed glass front, PC+ABS body, flame retardant (V0), halogen free; 88 g
- Rating
- IP20, indoors; 0 to 55 °C
- Colours
- Anthracite black, silver and white in Zennio's photos
05Finishes
- Finish 1
- Anthracite black
- Finish 2

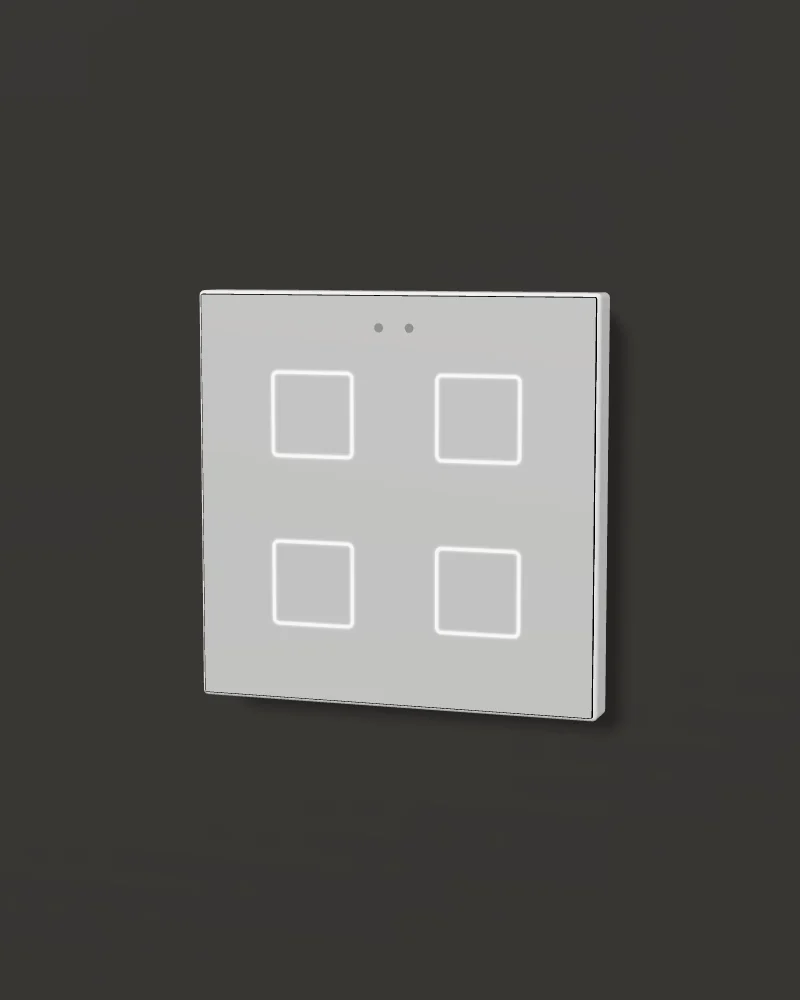

Silver- Finish 3

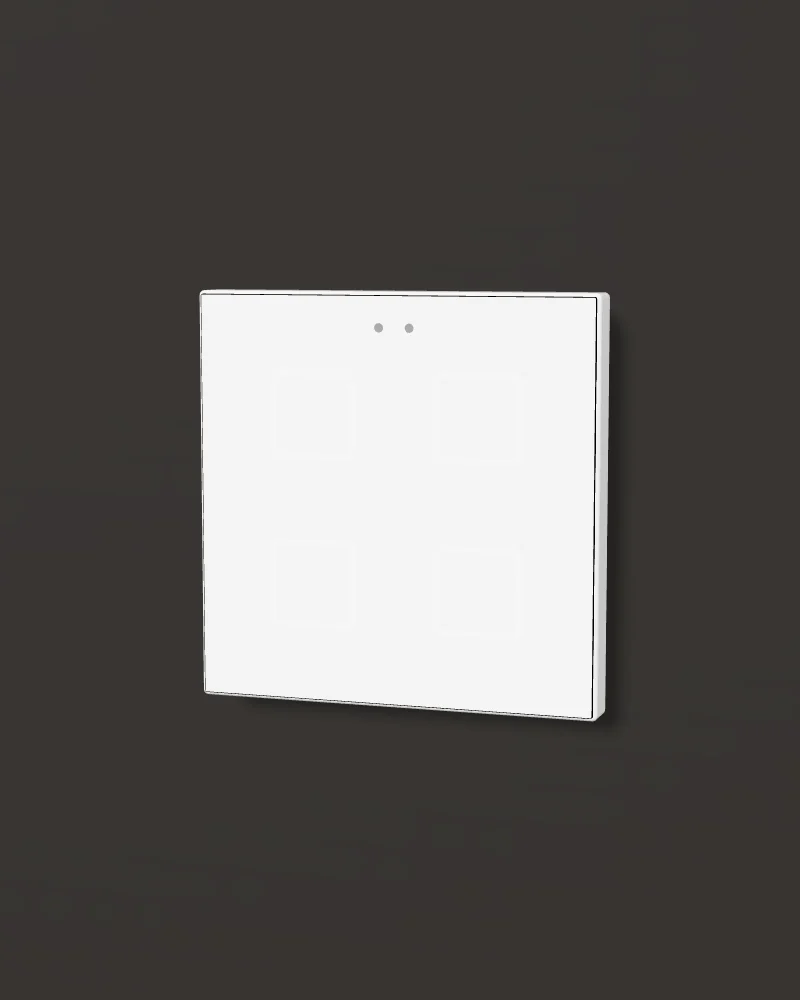

White
Sources: Zennio's datasheet for the Flat RGB (edition 1) and Zennio's finishes page, read on 15 October 2026.
