Zennio Switches
Tecla RGB
ZVITR1, ZVITR2, ZVITR4, ZVITR6, ZVITR8
A KNX push button with 1 to 8 touch areas, a colour backlight and icons you design, in five colours.

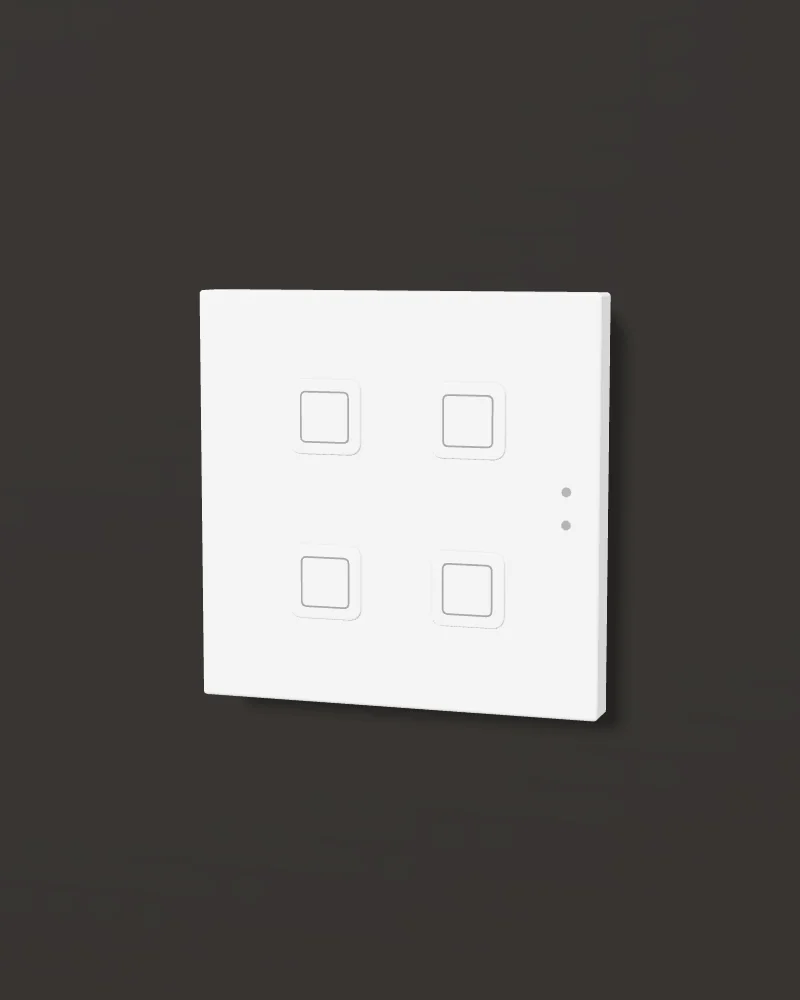

Finish White
Five colours, from Zennio's finishes page and media pack. Pick the number of buttons below.
Buttons 4
No price on this page. Your bill prices it with your villa, in the finish you pick.
No brand photo yet
No brand photo yet
No brand photo yet
No photo of this finish yet. No photo of this one yet. Our 3D model. Drag to turn it; double-click to put it back.
Zennio's picture, 1 of 3: white, 4 buttons, three-quarter view, the indicator lights on the right.
- Touch areas1, 2, 4, 6 or 8 touch areas
- BacklightRGB backlight and icons you design
- SensorsThermostat, temperature and proximity sensors
- PowerPowered by the KNX bus; KNX Data Secure
Design and materials
A capacitive push button with 1, 2, 4, 6 or 8 touch areas. Each area has an RGB backlight in any colour, and you design its icon in Zennio's web application, so the labels match the room. It has a thermostat, a temperature sensor and a proximity sensor, and a short sound confirms each touch. It takes its power from the KNX bus and supports KNX Data Secure.
No brand photo yet
Polycarbonate front

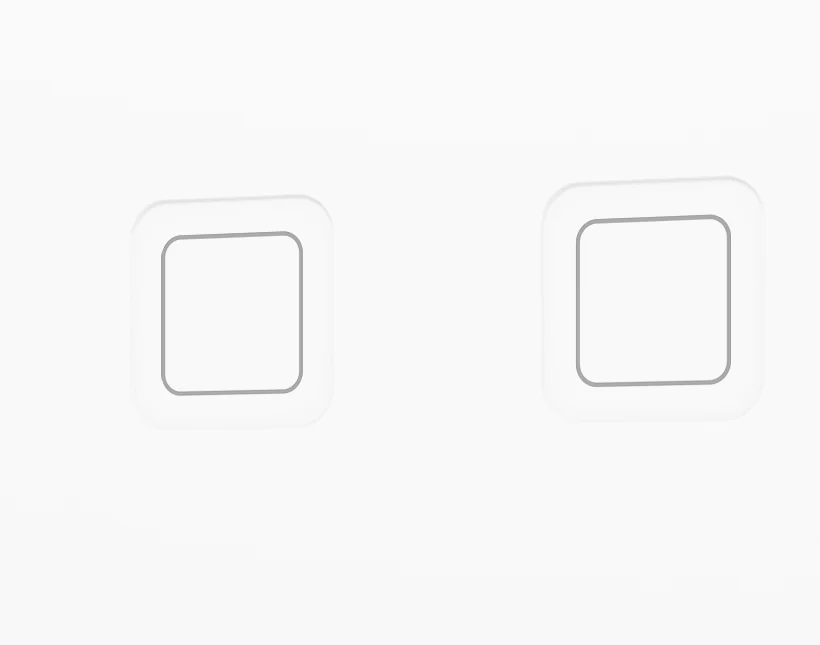

The front is polycarbonate in one colour. Each button is a raised square with a soft edge, and a light line inside it shows its state.
Icons you design
You design the icon of each touch area in Zennio's web application, and the backlight takes any colour.
Powered by the bus
It needs no power supply of its own: the KNX bus powers it.
Where it goes

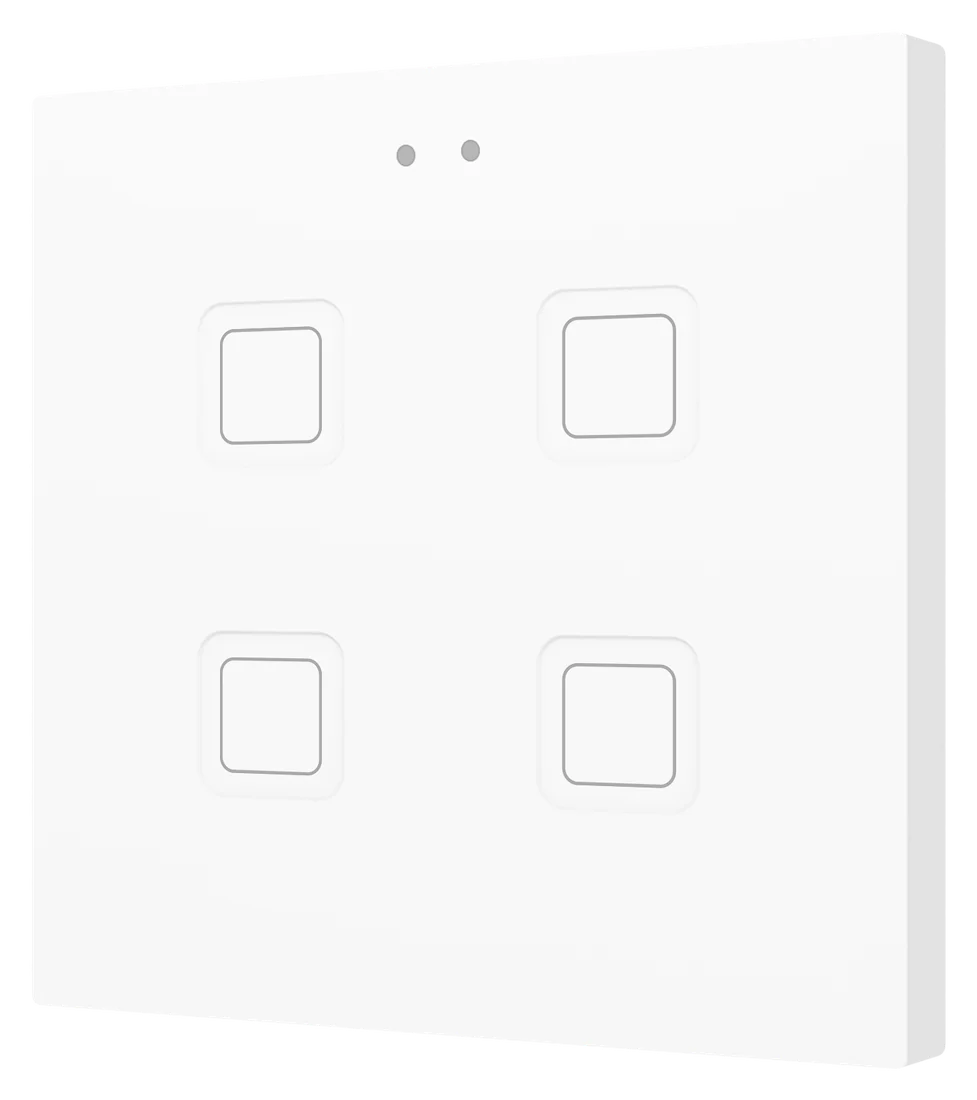

By the door of each room, on the latch side, at 1.2 m to the centre. It mounts portrait or landscape.
Specifications
01Display and system
- Model
- ZVITR1, ZVITR2, ZVITR4, ZVITR6 and ZVITR8 (1, 2, 4, 6 and 8 buttons)
- Controls
- 1, 2, 4, 6 or 8 touch areas, each with an RGB backlight; icons designed in Zennio's web application
02Connections
- Connection
- KNX TP1, powered by the bus; KNX Data Secure
- Inputs and outputs
- 2 analogue or digital inputs: a temperature probe, a motion sensor or a switch
03Intercom and sensors
- Sensors
- Temperature and proximity; thermostat
- Audio
- A sound confirms each touch
04Mounting and size
- Mounting
- Flush, portrait or landscape, on a standard European, Italian, Australian or American back box
- Size
- 82.5 × 82.5 × 37.1 mm; about 9.5 mm in front of the wall (Zennio's drawing)
- Body
- Polycarbonate front, PC+ABS back, flame retardant (V0), halogen free; 95 g
- Rating
- IP20, indoors; 0 to 55 °C
- Colours
- White (RAL 9016), silver (RAL 9006), anthracite black (RAL 9004), champagne (RAL 1035), mocha (RAL 7006)
05Finishes
- Finish 1
White- Finish 2

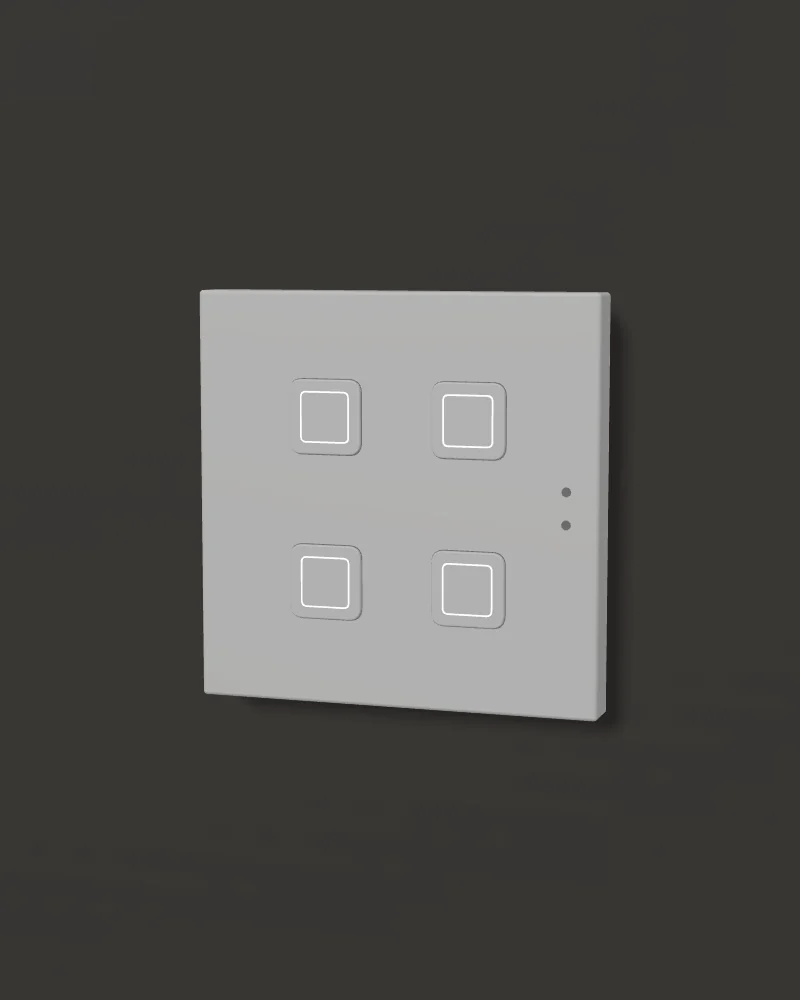

Silver- Finish 3

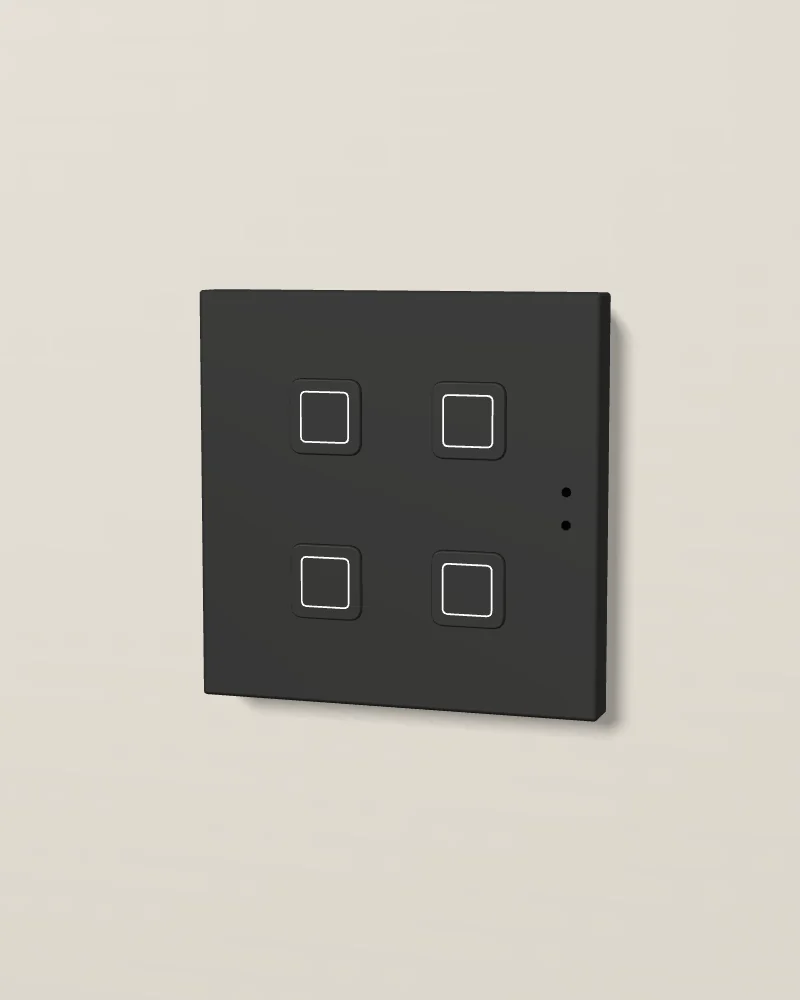

Anthracite black- Finish 4

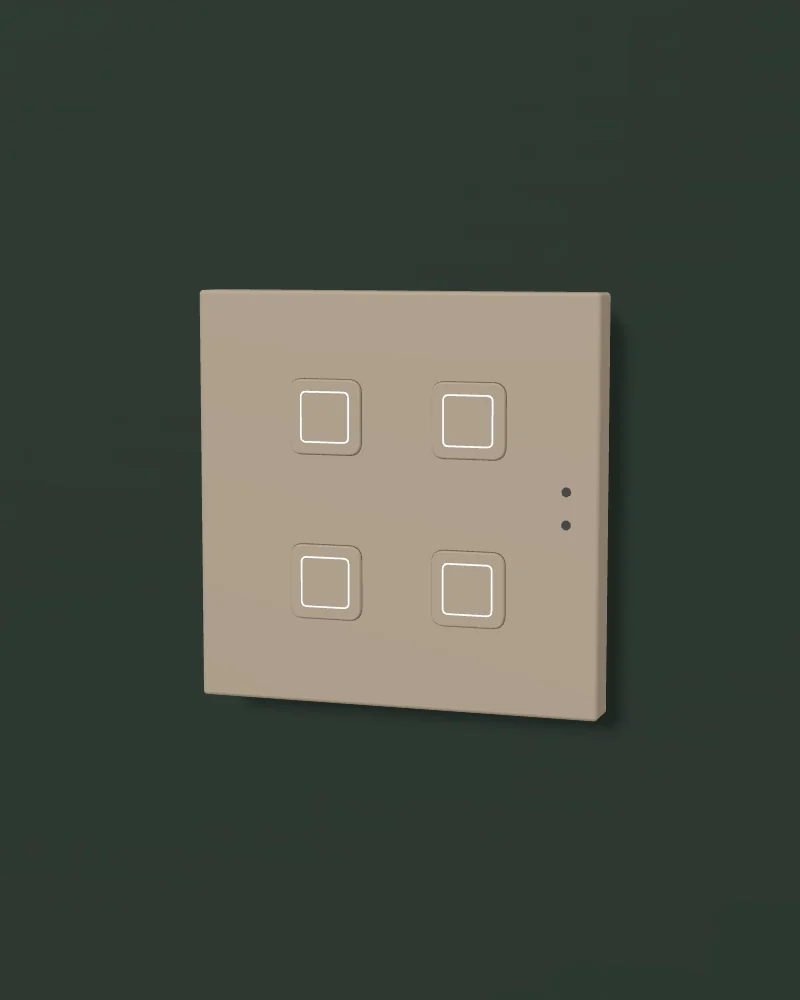

- Champagne
- Finish 5

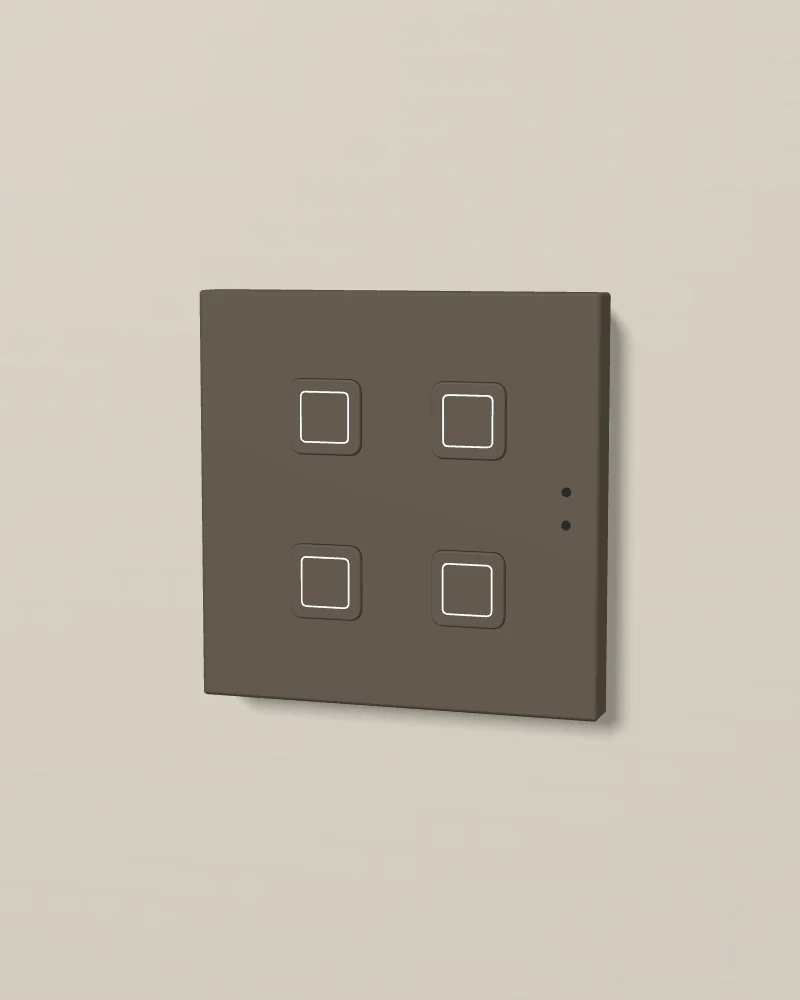

Mocha
Sources: Zennio's datasheet for the Tecla RGB (edition 1) and Zennio's finishes page, read on 15 October 2026.
