ProductsOptimusEdge Switch

Optimus Switches

Edge Switch

OPT-SS3300, OPT-SS1100, OPT-SS2100, OPT-SS2200 and OPT-SS1110

A frameless KNX push button with 1 to 4 keys and two RGB lights on each key, in five finishes.

Finish White

Five finishes: four plastics and stainless steel. Pick the keys below.

Keys 480 × 80 mm

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

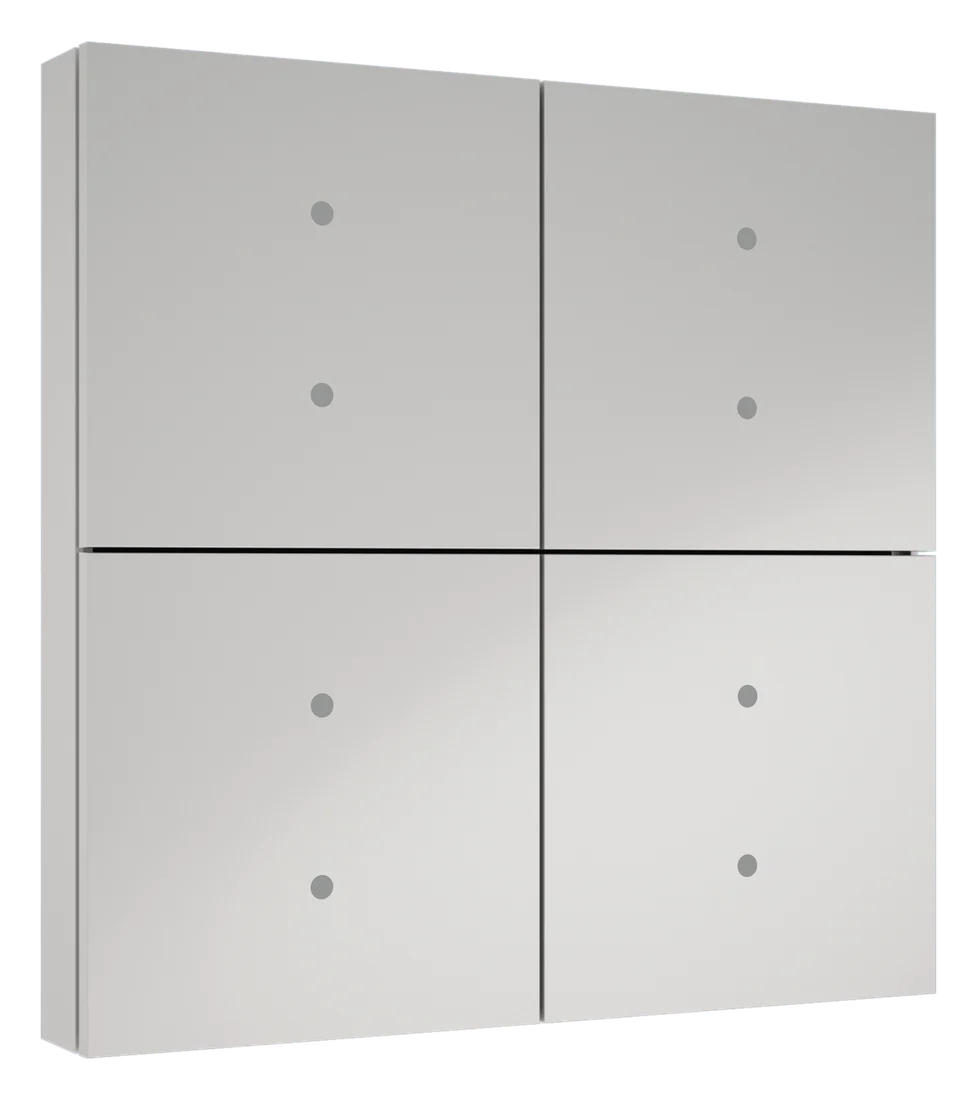

Optimus Edge Switch: white, 4 keys, from the front, Optimus's picture

Optimus's picture, 1 of 3: white, 4 keys, from the front.

  • Keys1 to 4 keys, or 3 tall keys
  • LightsTwo RGB lights on each key
  • FinishesFive finishes, with stainless steel
  • PowerPowered by the KNX bus
5 finishes

Design and materials

A KNX push button with no frame: the keys are the whole front. Square keys work up and down, long keys left and right. Two RGB lights on each key show the state of its two functions. It runs lights and dimmers, curtains and blinds, scenes, values and the thermostat, with up to 16 functions. It takes its power from the KNX bus. Versions with a room thermostat, an air quality sensor or both are on Optimus's order code.

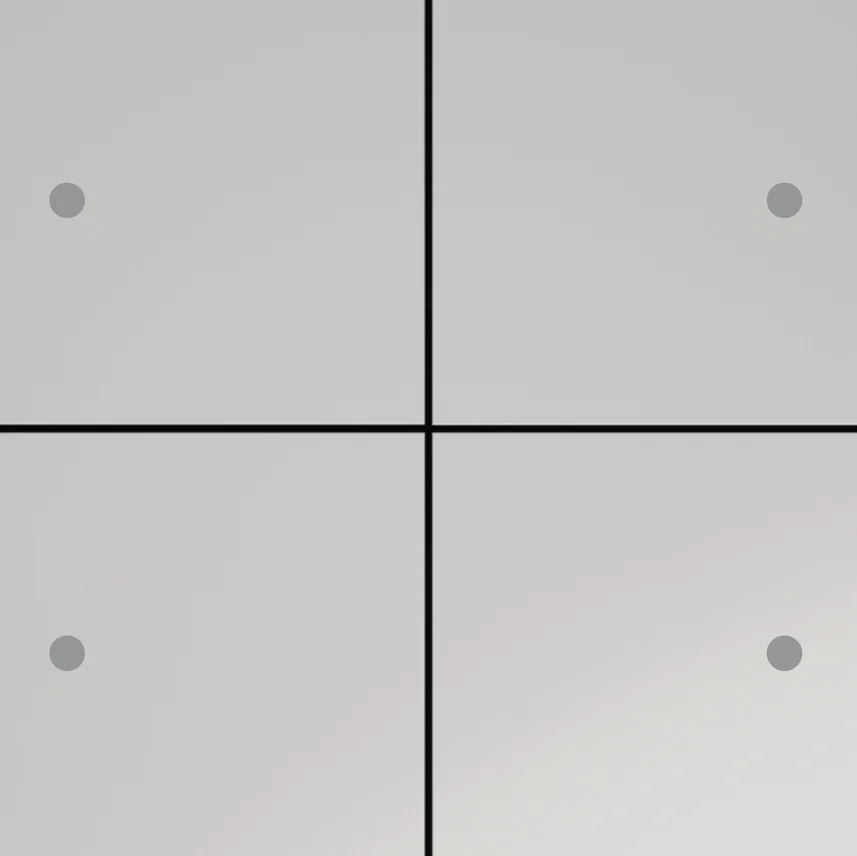

Optimus Edge Switch: white, Close-up of the keys, the gap between them and their lights, cut from Optimus's picture
Close-up of the keys, the gap between them and their lights, cut from Optimus's picture: white.

  • No frame

    The keys are the whole front: there is no frame around them, and thin gaps part the keys.

  • Two lights on each key

    Each key has two RGB lights, one for each of its two functions, so you see the state of each side.

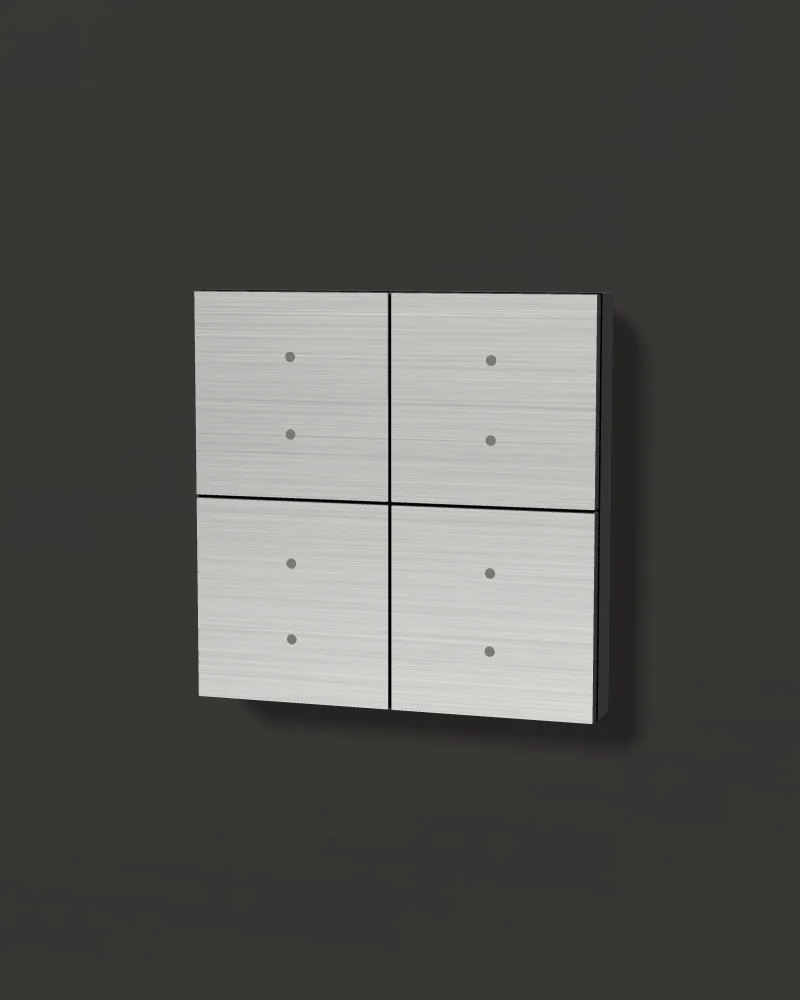

  • Stainless steel on black

    The stainless steel version has brushed metal keys on a matte black base.

Where it goes

By the door of each room, on the latch side, at 1.2 m to the centre. It mounts flush, with no frame.

10 details · 4 groups

Specifications

01Display and system

Model
OPT-SS3300 (1 key), OPT-SS1100 (2 keys), OPT-SS2100 (3 keys), OPT-SS2200 (4 keys), all 80 × 80 mm; OPT-SS1110 (3 keys, 80 × 120 mm)
Controls
Square keys work up and down, long keys left and right; up to 16 functions: switching, dimming, curtains and blinds, values, scenes, the thermostat and logic
Backlight
Two RGB lights on each key, one for each of its two functions
Thermostat
Versions with a room thermostat (RTC), an indoor air quality sensor, or both (Optimus's order code)

02Connections

Connection
KNX TP (TP-S mode); powered by the bus, 21 to 30 V DC, 12 mA; programmed in ETS

03Mounting and size

Mounting
Flush, on a 60 mm round box, with the adapter that comes with it; no frame (to confirm for the UK-type boxes in UAE villas) to confirm
Size
80 × 80 × 35 mm (85 g); 80 × 120 × 35 mm for the 3 tall keys (113 g)
Body
ABS (V2) housing; keys in plastic, or in stainless steel on a matte black base
Rating
IP20, indoors; −5 to +45 °C
Colours
Plastic: WH white, BL matte black, SL silver, AN anthracite. Metal: SS stainless steel. From Optimus's datasheet

04Finishes

Finish 1

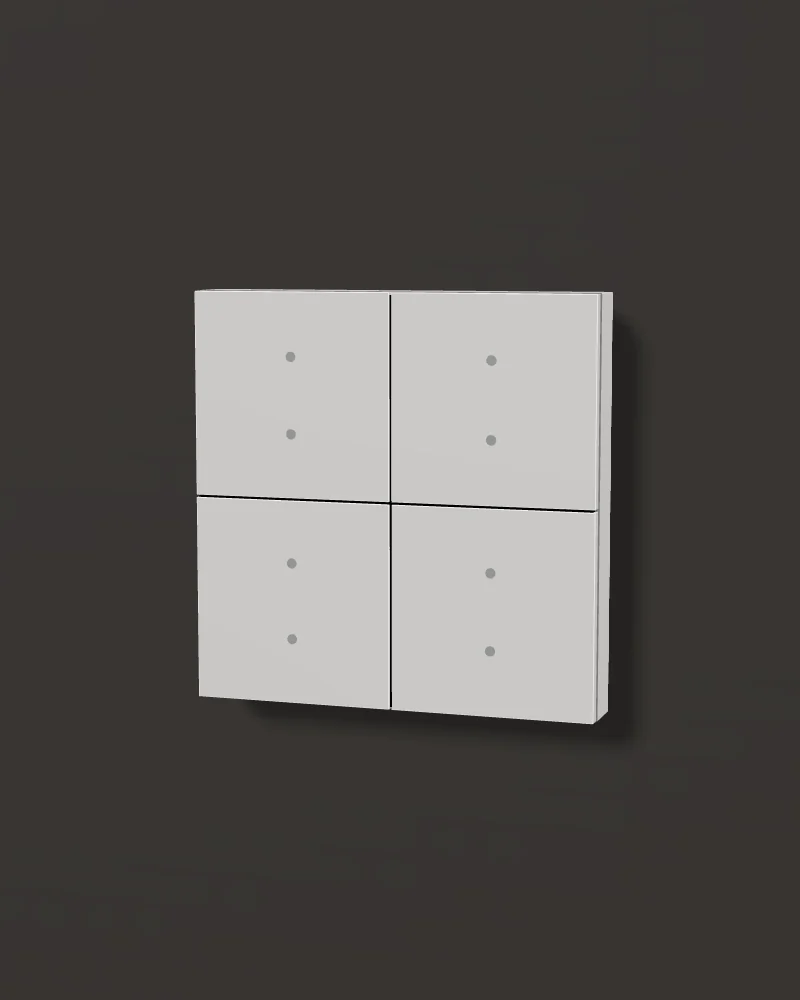

White
Finish 2

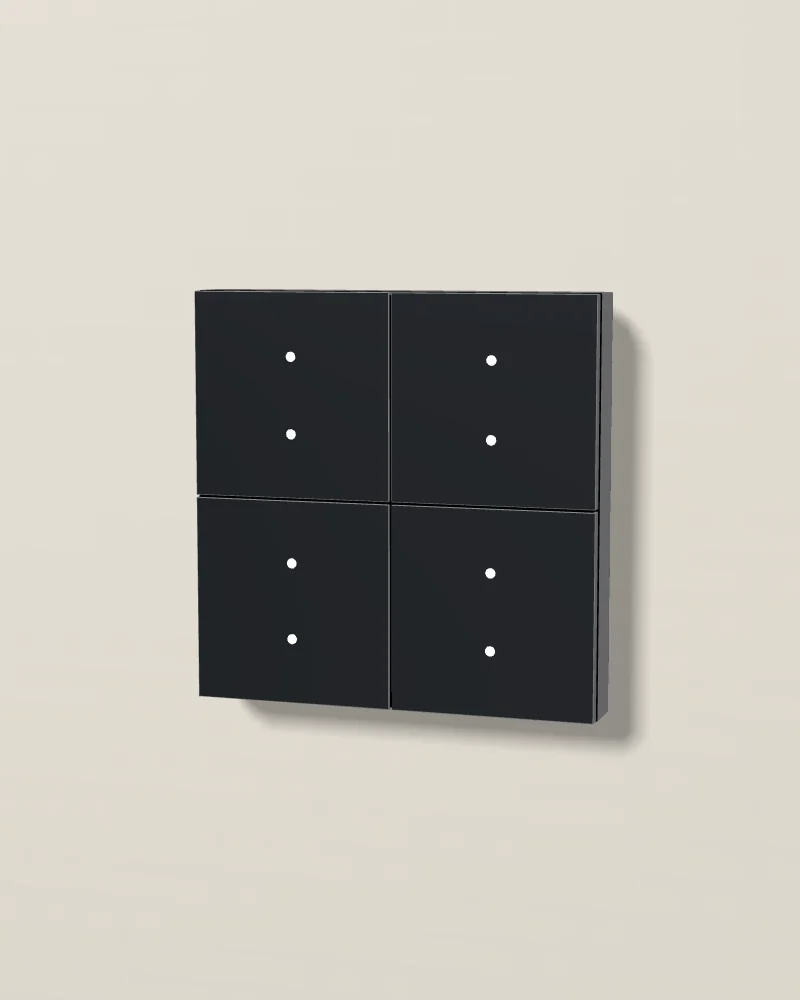

Matte black
Finish 3

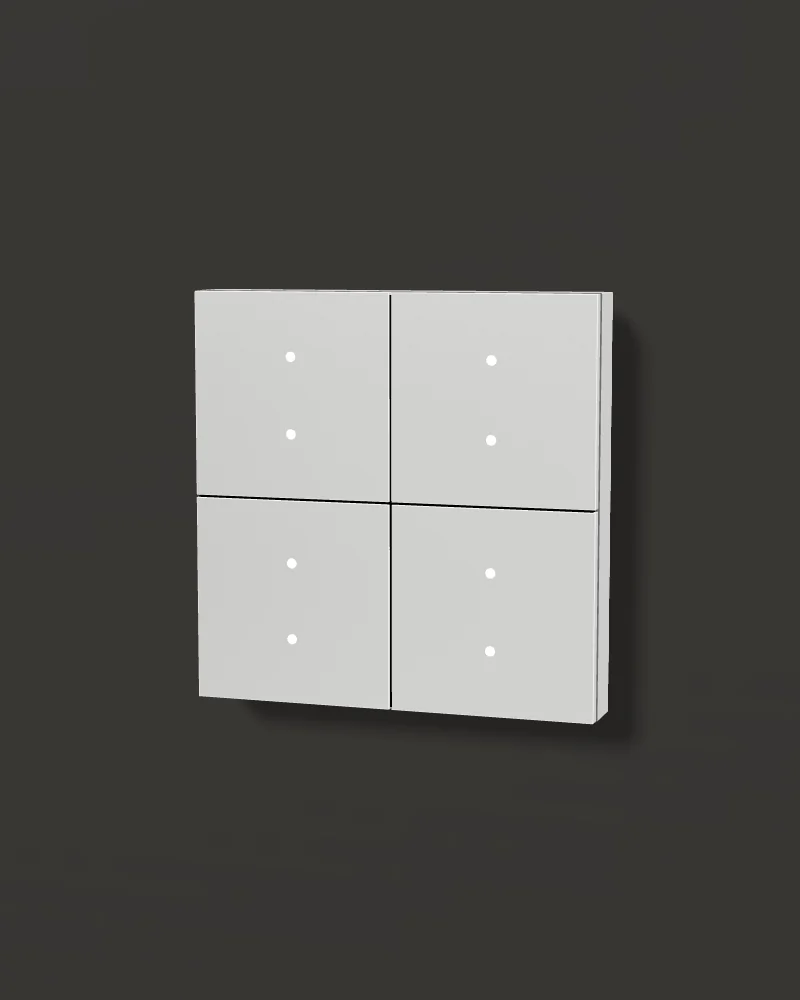

Silver
Finish 4

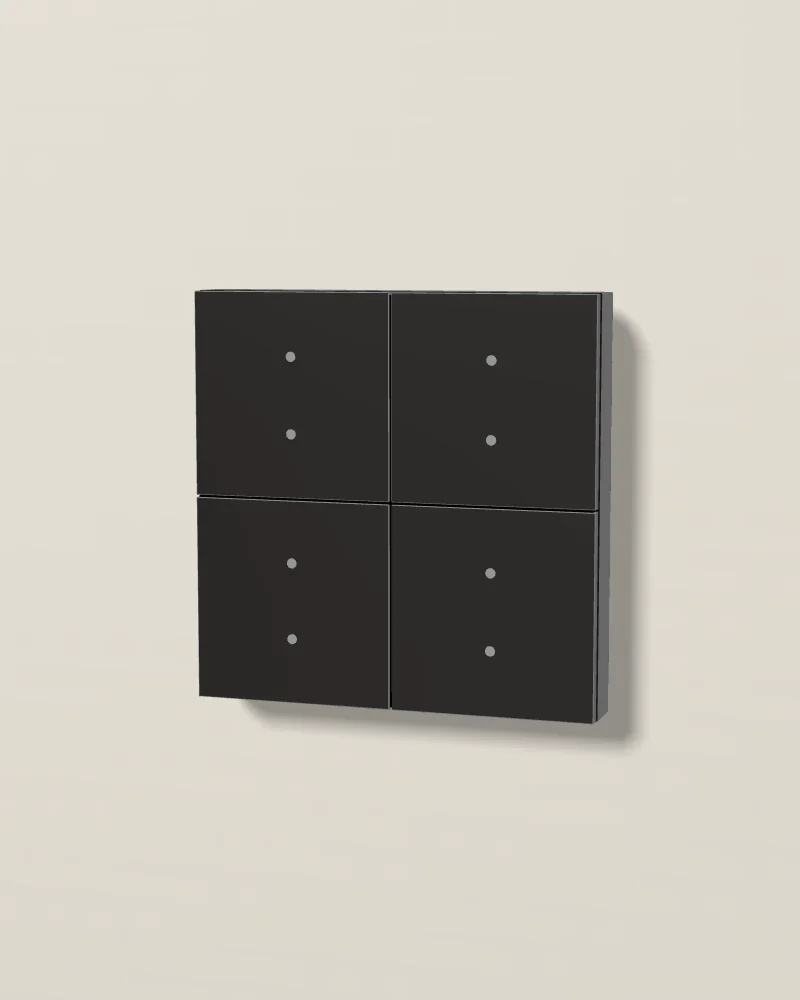

Anthracite
Finish 5
Stainless steel

Sources: Optimus's datasheet for the OPT-SSxxxx-yyy switch sensor (version 1.0, 30 April 2025), its Edge switch page and its media pack, read on 16 October 2026.
