iONprime PB KNX (item 4969301)
A KNX push button with up to 8 buttons, an RGB light on each, and sensors for the air of the room.
Finish Aluminium black
Ten finishes: four brushed metals and six silky-matte colours. Pick the number of rockers below.
Rockers 4
No price on this page. Your bill prices it with your villa, in the finish you pick.
No brand photo yet
No brand photo yet
No brand photo yet

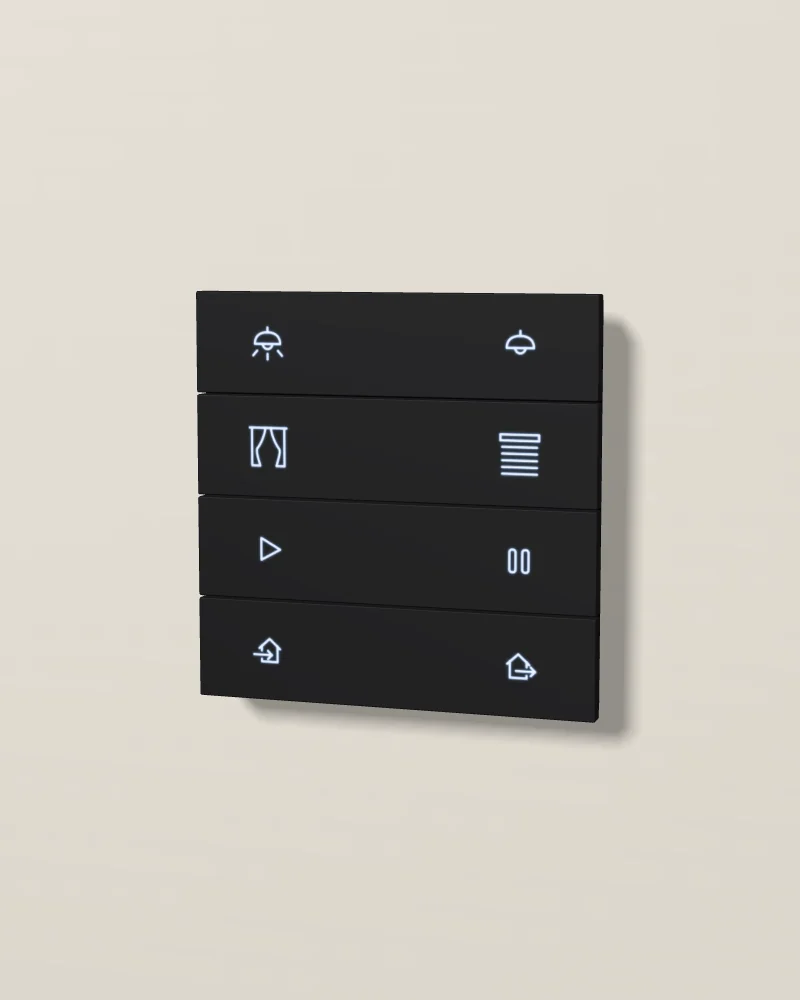

No photo of this finish yet. No photo of this one yet. Our 3D model. Drag to turn it; double-click to put it back.
Maker's photo, 1 of 3: aluminium black, from the front.
- Buttons2, 4 or 8 buttons
- LightAn RGB light on each button
- SensorsTemperature, humidity, air quality and proximity sensors
- ConnectionKNX, powered by the bus
Design and materials
Theben's KNX push button. One base unit has 8 buttons, and the rockers you fit (1, 2 or 4) make 2, 4 or 8 of them work. Each button has an RGB status light, and its brightness can follow the room light. The base measures the temperature, the humidity, the light and the indoor air quality, and it senses when someone comes near. It has its own thermostat for heating and cooling, and it takes its power from the KNX bus.
No brand photo yet
Brushed metal or silky matte
Four brushed finishes: aluminium in grey or black, brass and stainless steel. Six silky-matte finishes: aluminium painted in several layers and sealed, for a soft feel.
A light on each button
Each button has an RGB status light in one of seven colours. Its brightness follows a setting or the light of the room.
It measures the air
The base measures the indoor air quality from the CO2 of the room, in five levels, with the temperature and the humidity. It can send an alarm when a value passes a set threshold.
Where it goes
By the door of each room, on the latch side; Theben advises 1.10 to 1.20 m from the floor.
Specifications
01Display and system
- Model
- iONprime PB KNX, push button (item 4969301)
- Controls
- 2, 4 or 8 buttons, by the rockers you fit: 1, 2 or 4, sold apart from the base unit. Switching, dimming, blinds, values and scenes
- Backlight
- 8 RGB status lights: red, green, blue, cyan, magenta, yellow or white; their brightness follows a setting or the room light
- Thermostat
- Built in, for heating and cooling
- System
- Logic with four AND, OR or XOR channels; alarms at set thresholds
02Intercom and sensors
- Sensors
- Temperature, humidity, light, proximity, and the indoor air quality from CO2, in five levels
03Connections
- Connection
- KNX TP, by the bus terminal; programmed in ETS 4 or later
- Power
- From the KNX bus (21 to 32 V DC), under 12 mA
04Mounting and size
- Mounting
- On a metal frame that two screws (supplied) fix to the wall
- Size
- 86 × 86 × 11 mm
- Rating
- 0 to 45 °C; IP20; protection class III
05Finishes
- Finish 1

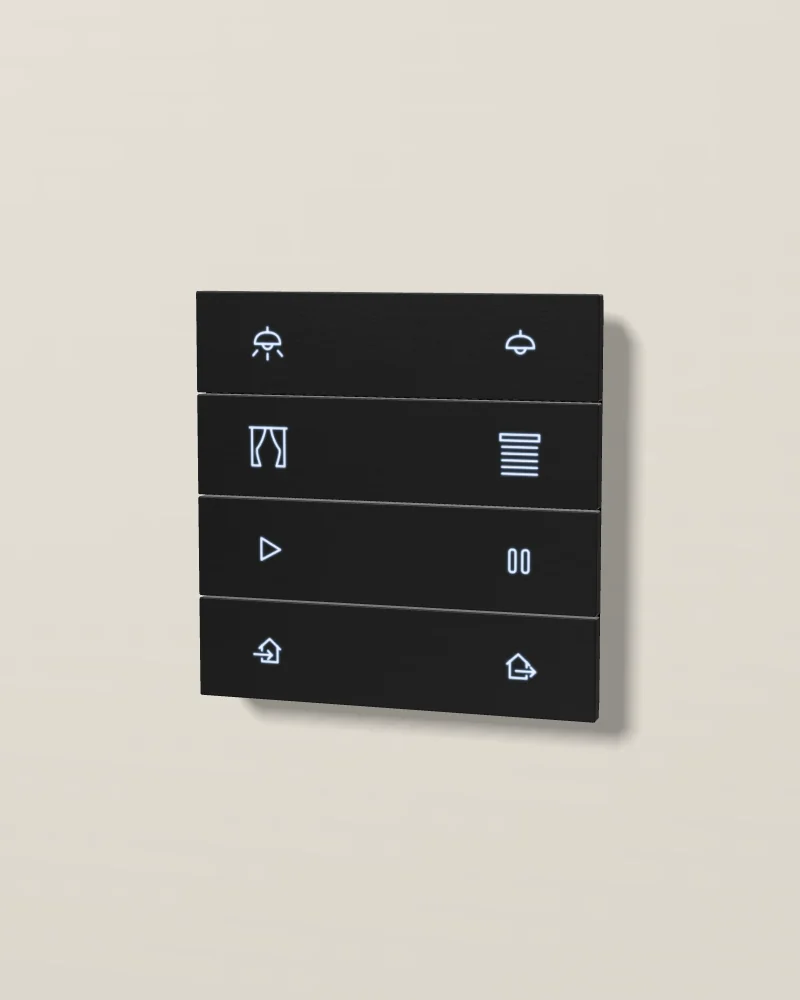

Aluminium black- Finish 2

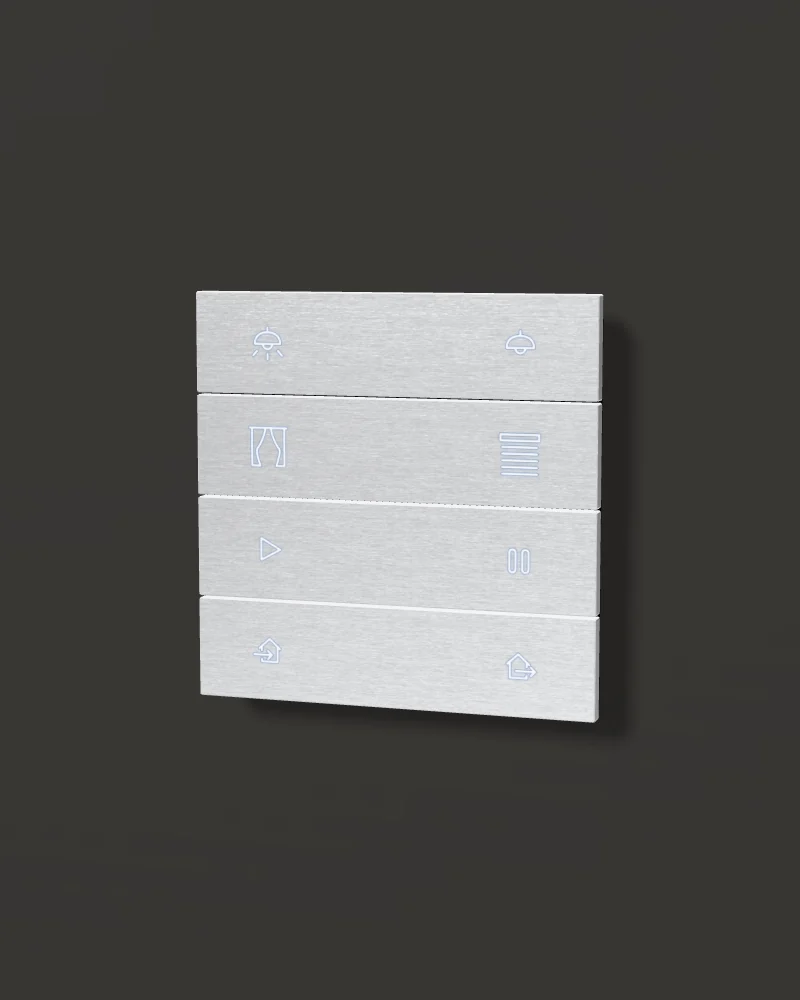

Aluminium grey- Finish 3

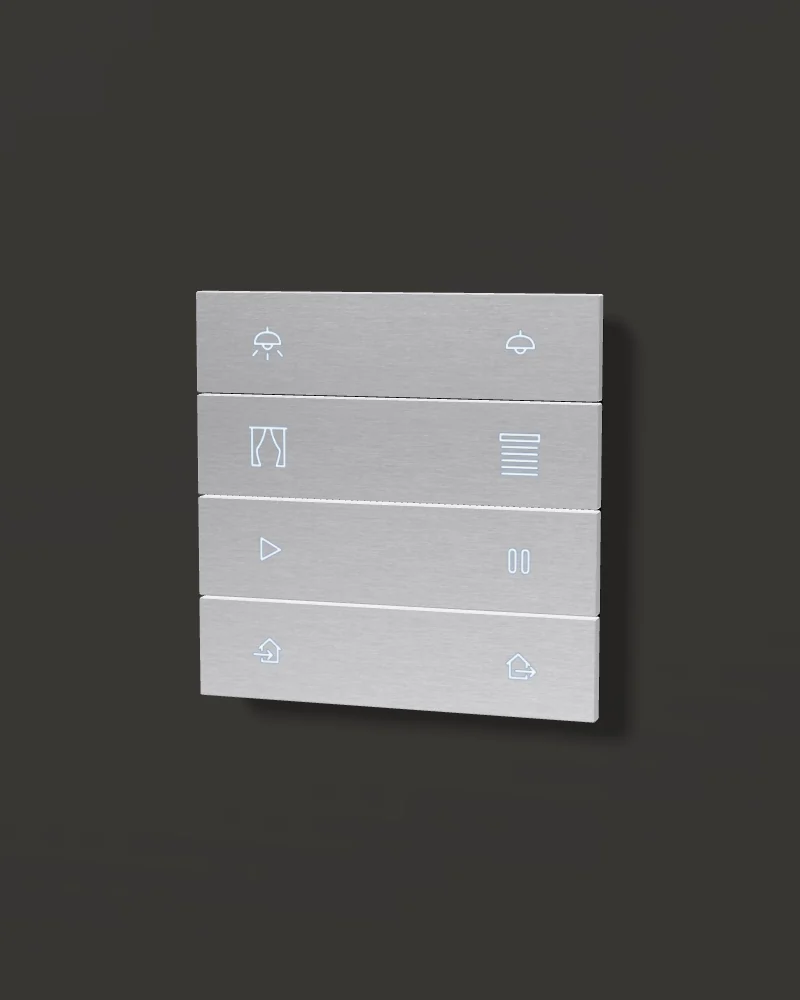

Stainless steel- Finish 4

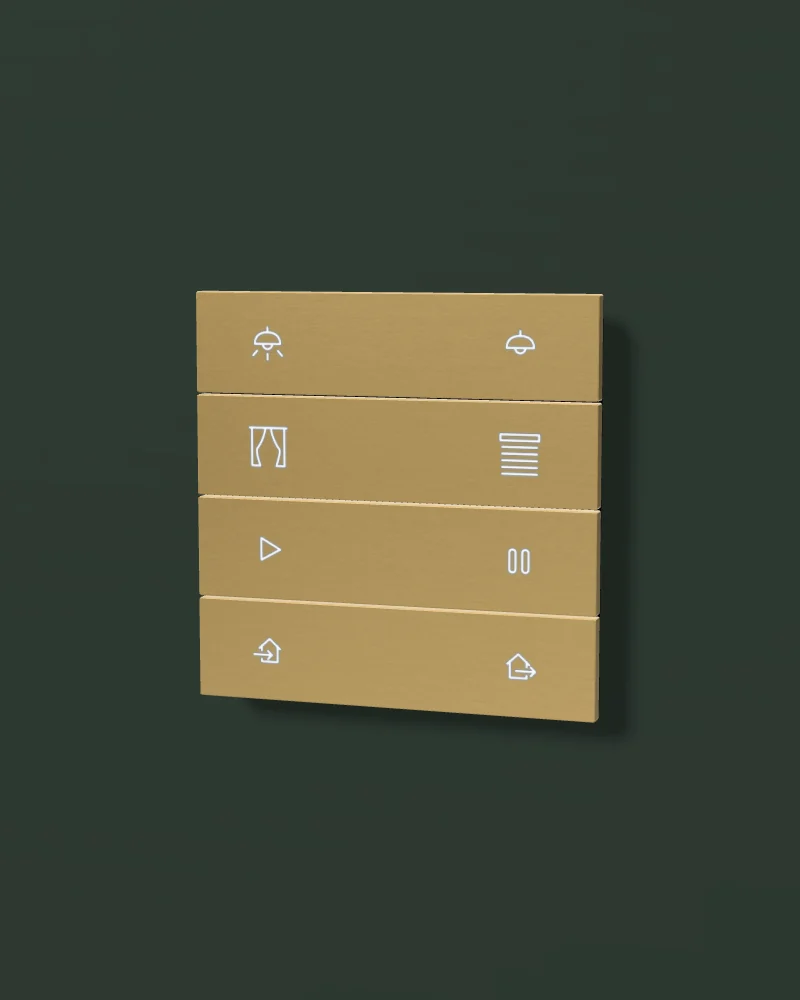

- Brass
- Finish 5

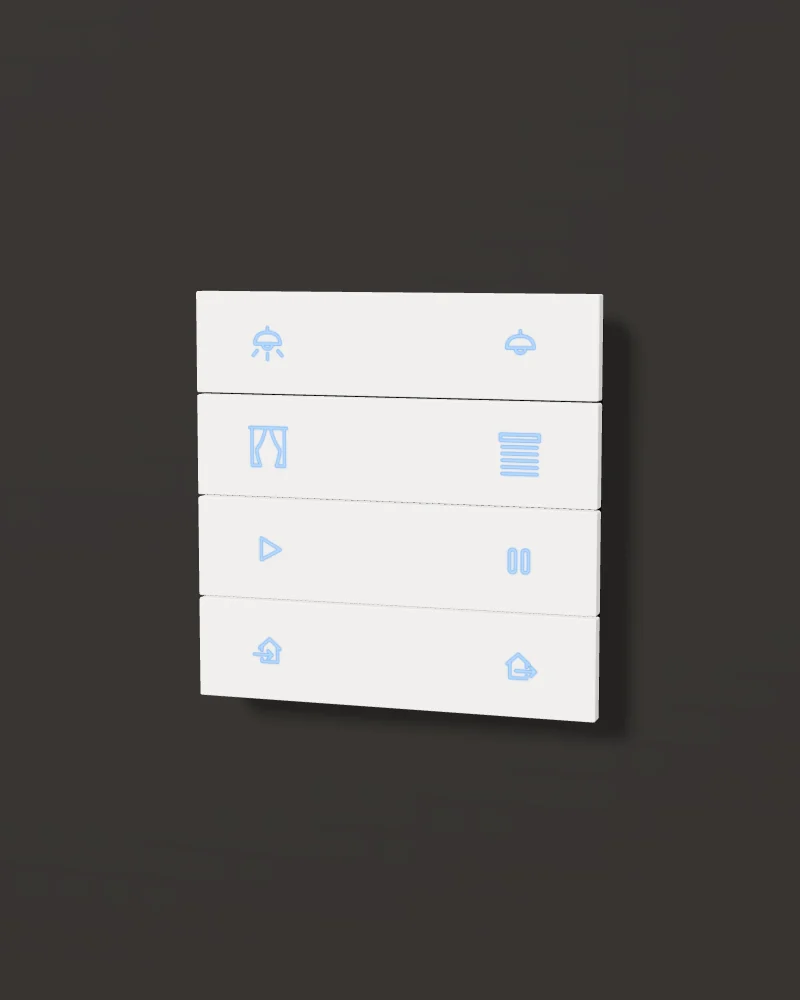

Glacier white- Finish 6

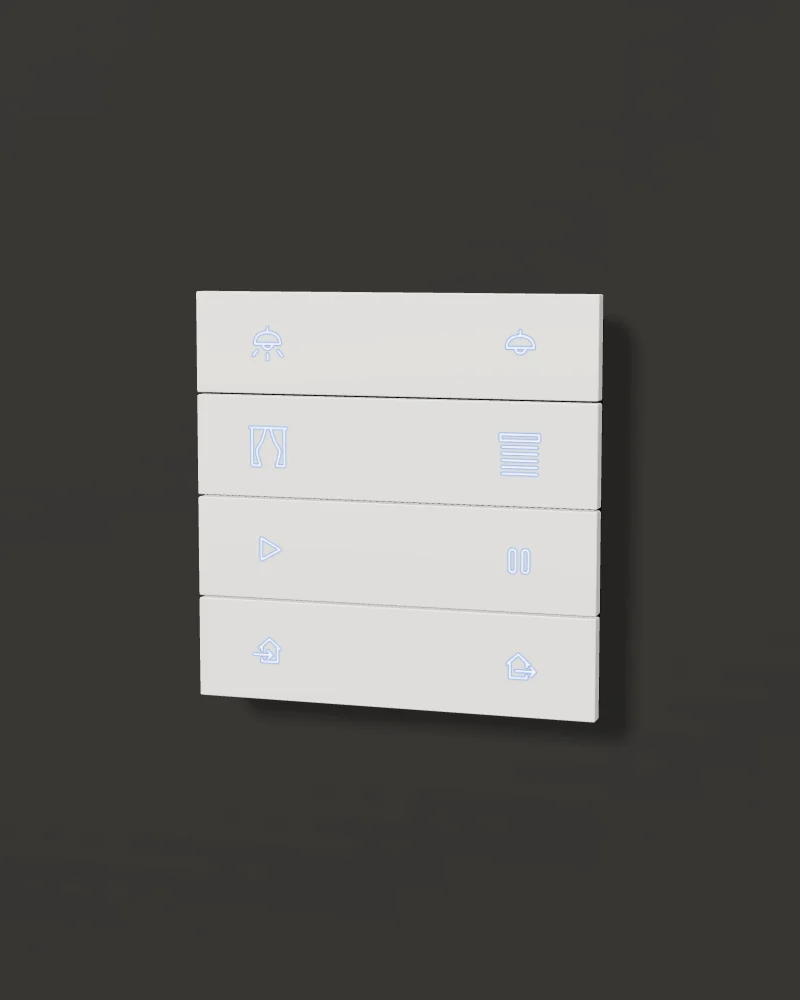

Sand beige- Finish 7
Verdant- Finish 8

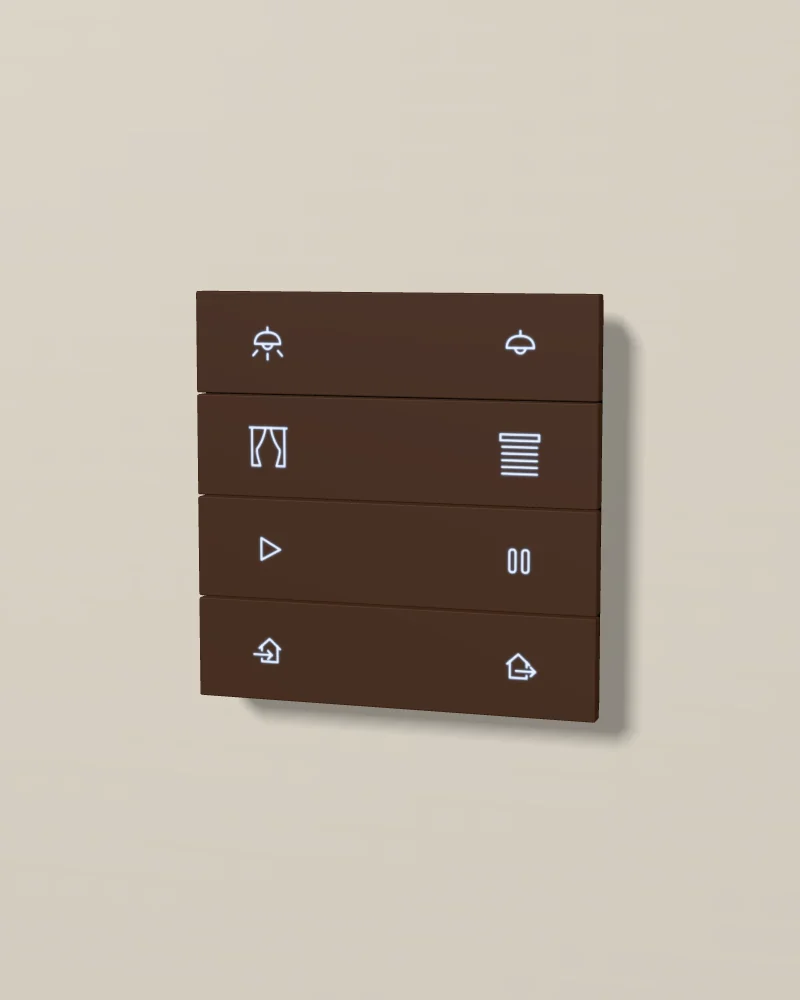

Cacao grey- Finish 9

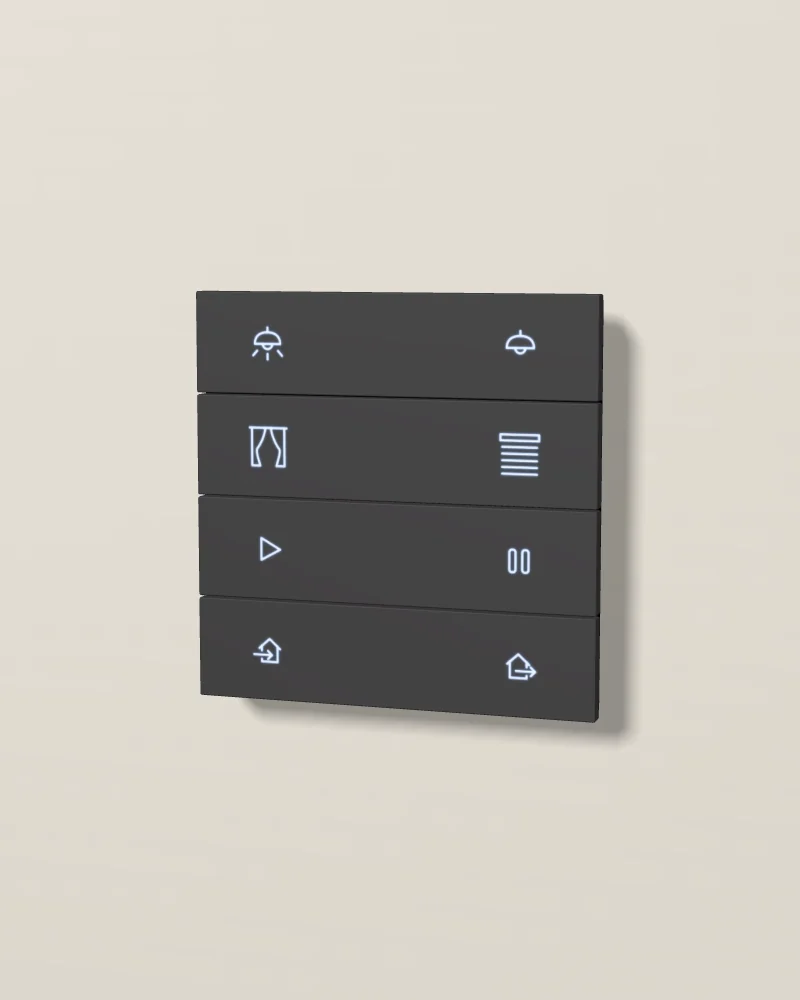

Titanium grey- Finish 10
Obsidian black
Sources: Theben's iONprime PB KNX page and datasheet (item 4969301, datasheet of 27 August 2026) and its user manual on knx.org (17 December 2025), read on 23 October 2026.
