ProductsThebeniONprime CP4

Theben Room controllers

iONprime CP4

iONprime CP4 KNX (item 4969300)

A 4-inch touch screen for the lights, blinds, climate and music of one room.

Finish Aluminium black

Ten finishes for the metal body: four brushed metals and six silky-matte colours.

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

Try the screen
Theben iONprime CP4: aluminium black, from the front, Maker's photo

Maker's photo, 1 of 3: aluminium black, from the front.

  • Screen4-inch touch screen, 480 × 480
  • ControlsUp to 6 pages, 48 functions
  • SensorsTemperature, humidity, light and proximity sensors
  • ConnectionKNX, programmed in ETS
10 finishes · 86 × 86 mm

Design and materials

Theben's KNX room controller: a 4-inch touch screen on the wall of a room. It has up to 6 pages with 8 functions on each: lights and dimmers, RGBW and tunable white, blinds, scenes, the thermostat, the air conditioning and audio. Up to 8 temperature controllers set the mode, the temperature and the fan stage. It measures the temperature, the humidity and the light of the room, and a proximity sensor wakes the screen when someone comes near. You can put your own background pictures on it from a micro SD card.

Theben iONprime CP4: aluminium black, Close-up of the corner, cut from the maker's photo
Close-up of the corner, cut from the maker's photo: aluminium black.

  • Brushed metal or silky matte

    Four brushed finishes: aluminium in grey or black, brass and stainless steel. Six silky-matte finishes: aluminium painted in several layers and sealed, for a soft feel.

  • Black glass on a metal body

    The glass covers the whole front. The finish you pick is the body around it, 11 mm deep on the wall.

  • The room on one screen

    Swipe between the pages: the lights, the LED strip, the curtains, the air conditioning and the scenes.

Where it goes

By the door of the room, at 1.4 m to the centre, in place of the switches and the thermostat; away from the supply grille and direct sun. Besides the KNX bus, it needs a 12 to 30 V DC supply.

Theben's interface, rebuilt by Homestat · the living room of a sample villa

Try the screen

This is the iONprime CP4's screen, set up for the living room of a sample villa. Swipe between its pages, as you would on the wall. Everything you change, the rest of the screen follows.

The iONprime CP4's screen, as Homestat rebuilt it

Demo roomLiving room

Sample villa · 3D render

    The living room of the sample villa. It changes when you use the screen. You can also tap the floor lamp, the ceiling lights, the LED strip, the curtains or the air conditioning in the picture, and the screen changes too.

    Six things owners do every day

    1. Open the lights and set the ceiling lights to about 40%.
    2. Give the LED strip a new colour.
    3. Set the air conditioning to 22°.
    4. Open the curtains.
    5. Run the Cinema scene.
    6. Go back to the main page and press Leave Room.

    0 of 6 done

    Homestat rebuilt this screen from Theben's interface so you can try it here. The real screen differs in detail. Your installer sets up your own rooms, names and scenes.

    9 details · 5 groups

    Specifications

    01Display and system

    Model
    iONprime CP4 KNX, room controller (item 4969300)
    Screen
    4-inch touch screen, 480 × 480 pixels; your own background pictures from a micro SD card
    Controls
    Up to 6 pages with 8 functions each, 48 in all: switching, dimming, blinds, values, scenes, RGBW, tunable white, thermostat, air conditioning and audio
    Thermostat
    Up to 8 temperature controllers: the operating mode, the temperature and the fan stage

    02Intercom and sensors

    Sensors
    Temperature, humidity, light and proximity; the proximity sensor wakes the screen

    03Connections

    Connection
    KNX TP, by the bus terminal; programmed in ETS 4 or later
    Power
    From the KNX bus (21 to 32 V DC), under 5 mA; and a 12 to 30 V DC supply, under 70 mA at 30 V

    04Mounting and size

    Size
    86 × 86 × 11 mm
    Rating
    0 to 45 °C; IP20; protection class III

    05Finishes

    Finish 1
    Aluminium black
    Finish 2
    Aluminium grey
    Finish 3
    Stainless steel
    Finish 4

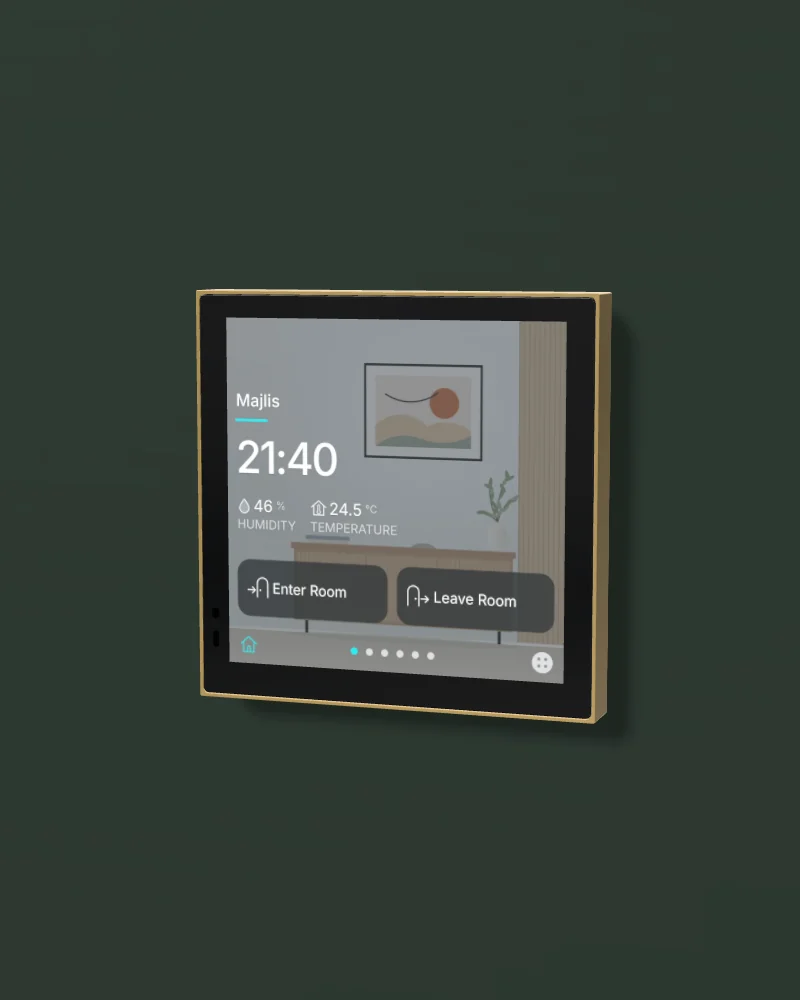

    Brass
    Finish 5

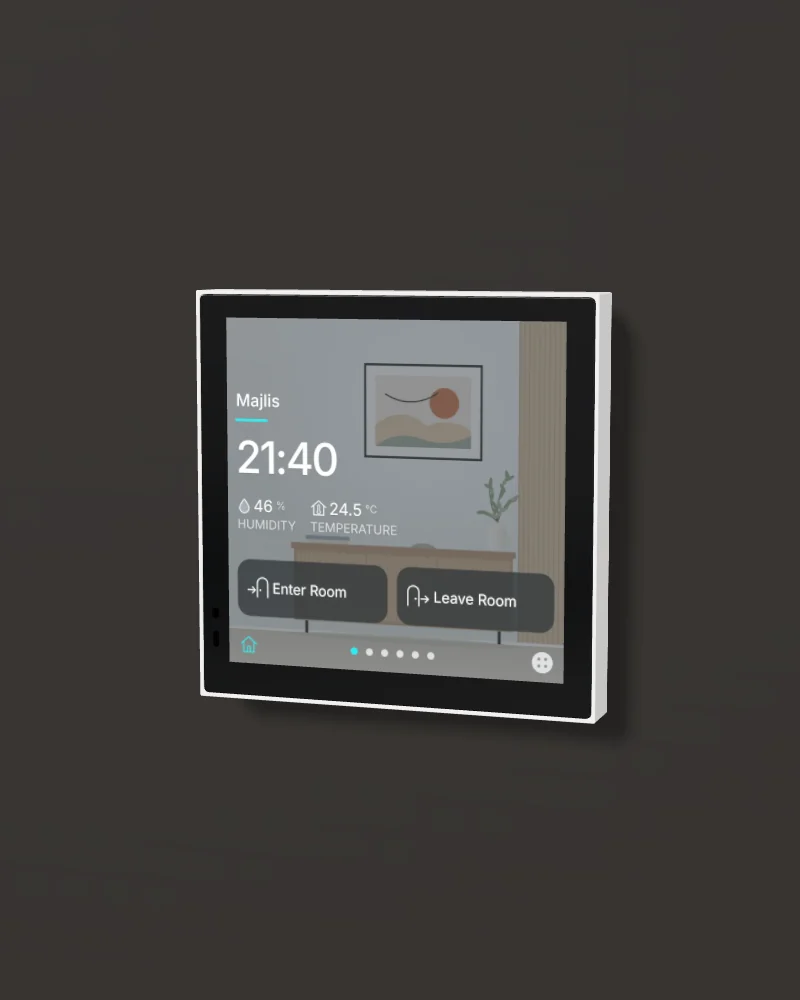

    Glacier white
    Finish 6

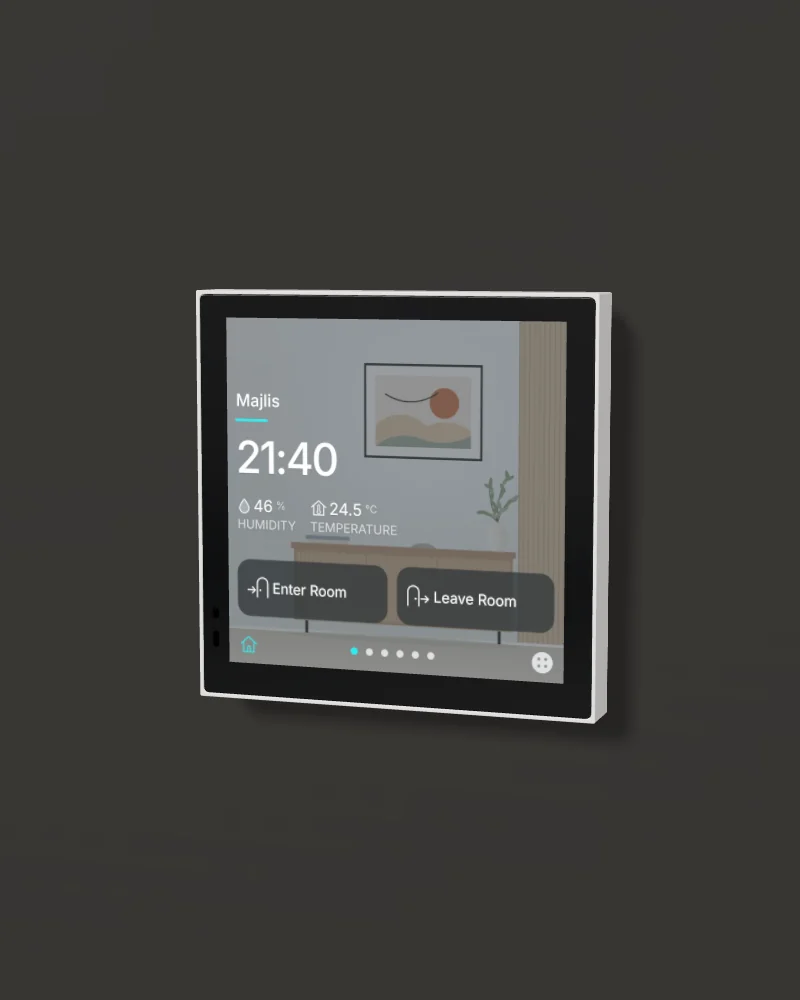

    Sand beige
    Finish 7

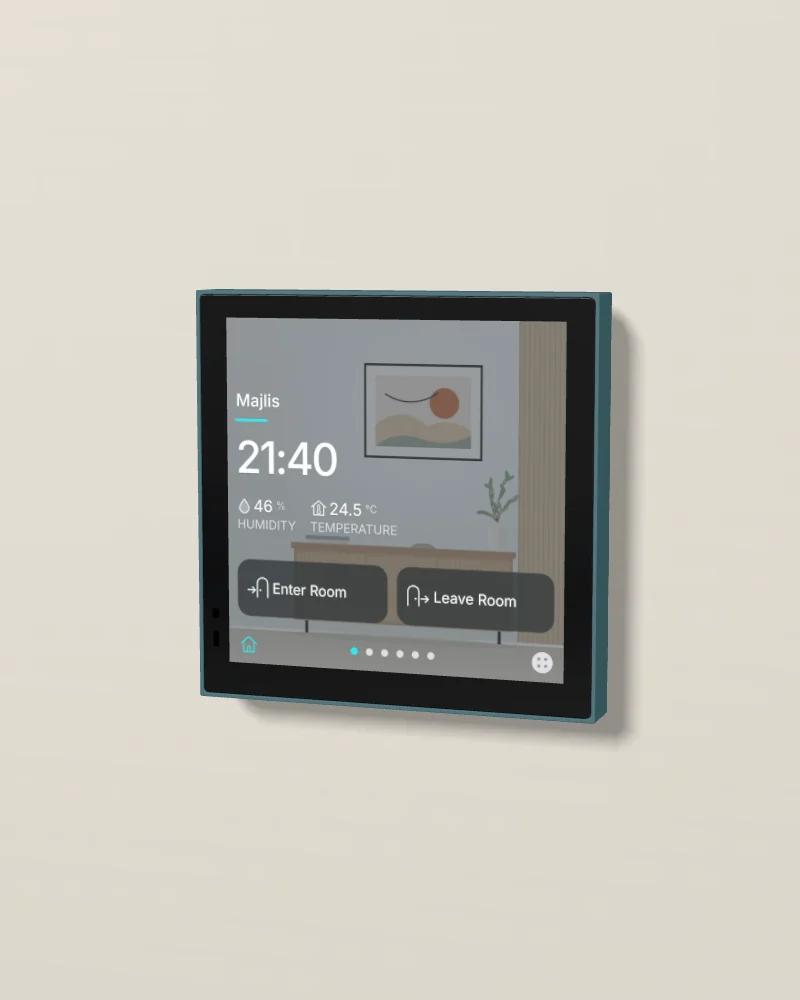

    Verdant
    Finish 8

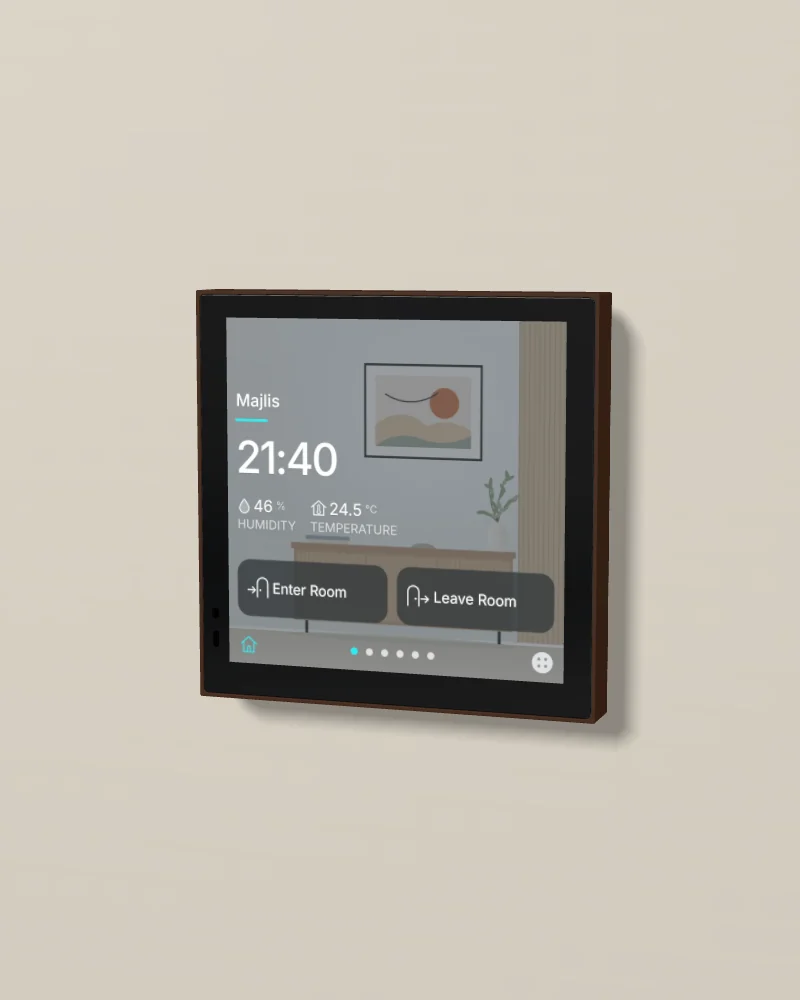

    Cacao grey
    Finish 9
    Titanium grey
    Finish 10
    Obsidian black

    Sources: Theben's iONprime CP4 KNX page and datasheet (item 4969300, datasheet of 27 August 2026) and its user manual on knx.org (20 January 2026), read on 23 October 2026.
