8 SQ touch panel

INS8SQ

The 8-inch SQ: the same screen and bars, for a smaller wall.

Finish Black

Seven bar colours. Inspinia's photos show five of them; bronze and copper are to follow.

Ask on WhatsApp

No price on this page. Your bill prices it with your villa, in the finish you pick.

Try the screen
Inspinia 8 SQ touch panel: black, from the front, Inspinia's picture

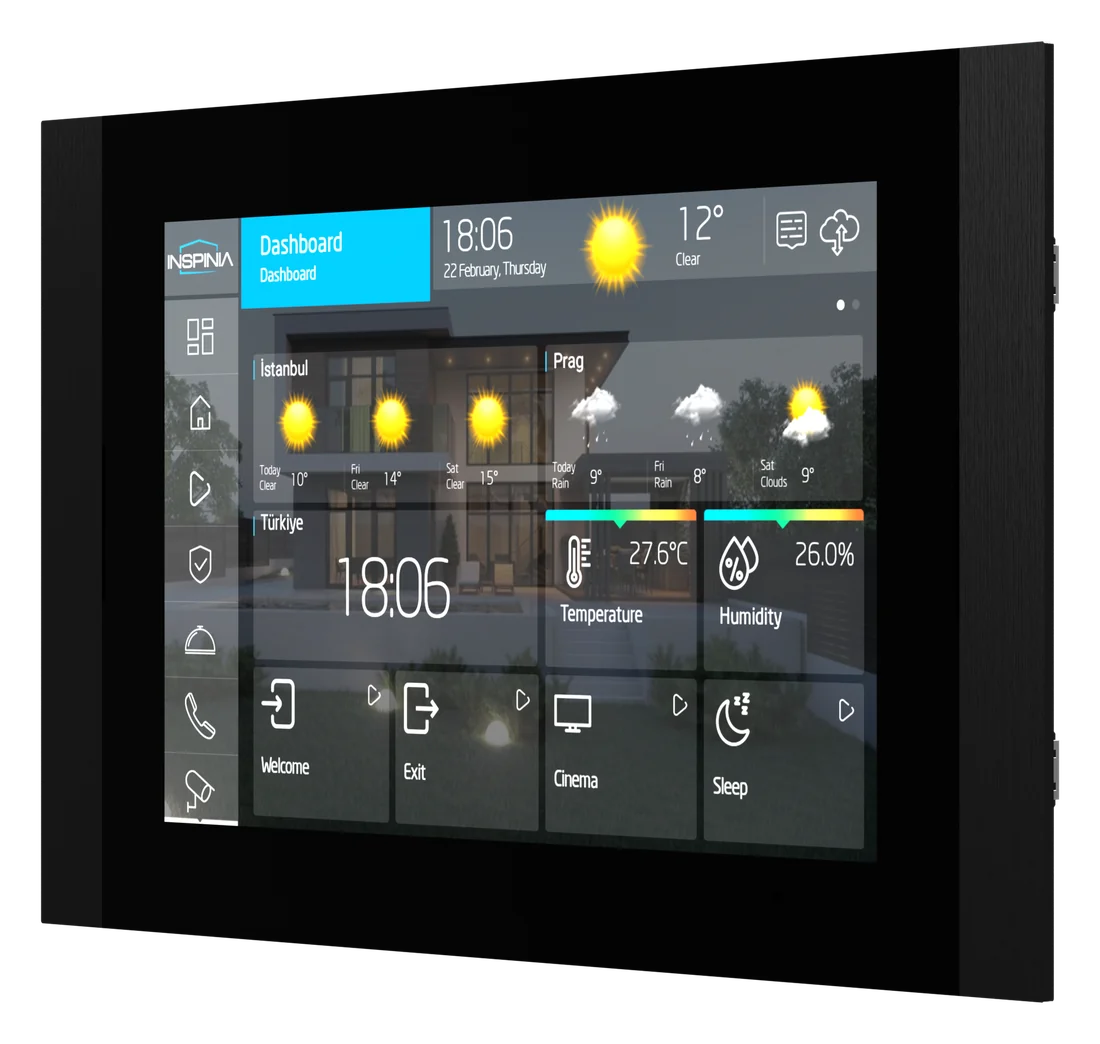

Inspinia's picture, 1 of 3: black, from the front.

  • Screen8-inch IPS screen, 1280 × 800
  • Add-on cardsThe same add-on cards as the 10 SQ
  • SensorsTemperature and humidity sensors
  • ColoursSeven bar colours
7 finishes

Design and materials

The same functions as the 10 SQ on an 8-inch screen, for rooms and walls where a smaller home screen fits better. It has the same add-on cards, sensors and speakers.

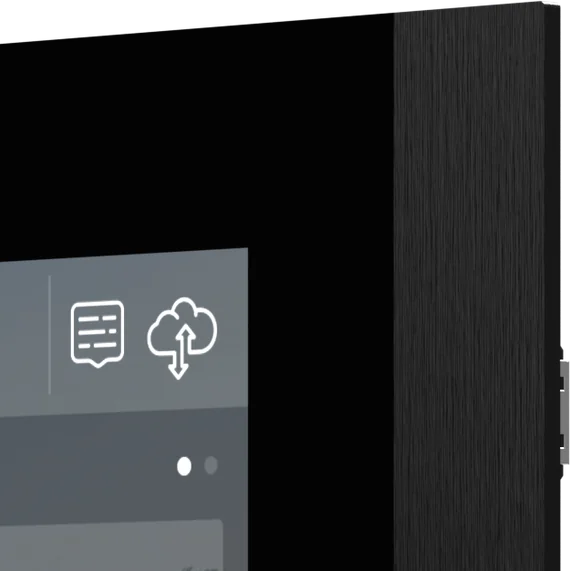

Inspinia 8 SQ touch panel: black, Close-up of the bar and the glass, cut from Inspinia's picture
Close-up of the bar and the glass, cut from Inspinia's picture: black.

  • Brushed metal bars

    The same brushed metal bars as the 10 SQ, on a smaller screen. Inspinia does not state the metal.

  • Black glass

    One sheet of black glass runs from bar to bar over the screen.

Where it goes

The kitchen, the family room or a bedroom, at about 1.4 m to the centre.

Inspinia's interface, rebuilt by Homestat · a sample villa

Try the screen

This is the 8 SQ touch panel's home screen, set up for a sample villa with eight rooms. Use it as you would on the wall. Everything you change, the rest of the screen follows.

The 8 SQ touch panel's screen, as Homestat rebuilt it

Turn your phone sideways for a larger screen.

Demo villaThe sample villa

    This is the sample villa, cut open from the front. It changes when you use the screen. Tap a room to switch its lights on or off.

    Six things owners do every day

    1. Run the Welcome scenario.
    2. Open the majlis in Smart Home and dim the chandelier to about 40%.
    3. Give the majlis LED strip a new colour.
    4. Set the majlis air conditioning to 22°.
    5. Arm the alarm with the code 1234.
    6. Call the gate from Intercom and open it.

    0 of 6 done

    Homestat rebuilt this screen from Inspinia's interface so you can try it here. The real screen differs in detail. Your installer sets up your own rooms, names and scenes.

    10 details · 5 groups

    Specifications

    01Display and system

    Screen
    8 inch IPS, 1280 × 800, landscape
    System
    Android 7.1, Inspinia application

    02Connections

    Add-on cards
    KNX, Zigbee 3.0, Modbus RS485, iNELS, Bticino SCS, VRF, IR
    Connection
    Ethernet; power by PoE 802.3at or 24 V DC
    Inputs and outputs
    5 inputs, 2 outputs

    03Intercom and sensors

    Audio
    2 speakers, 1 microphone input
    Sensors
    Temperature and humidity

    04Mounting and size

    Mounting
    Flush, in a back box
    Size
    243 × 149 mm to confirm
    Codes
    INS8SQ.B black, .S silver, .G gold; .R red, .P pink, .N bronze, .C copper to confirm

    05Finishes

    Finish 1
    Black
    Finish 2

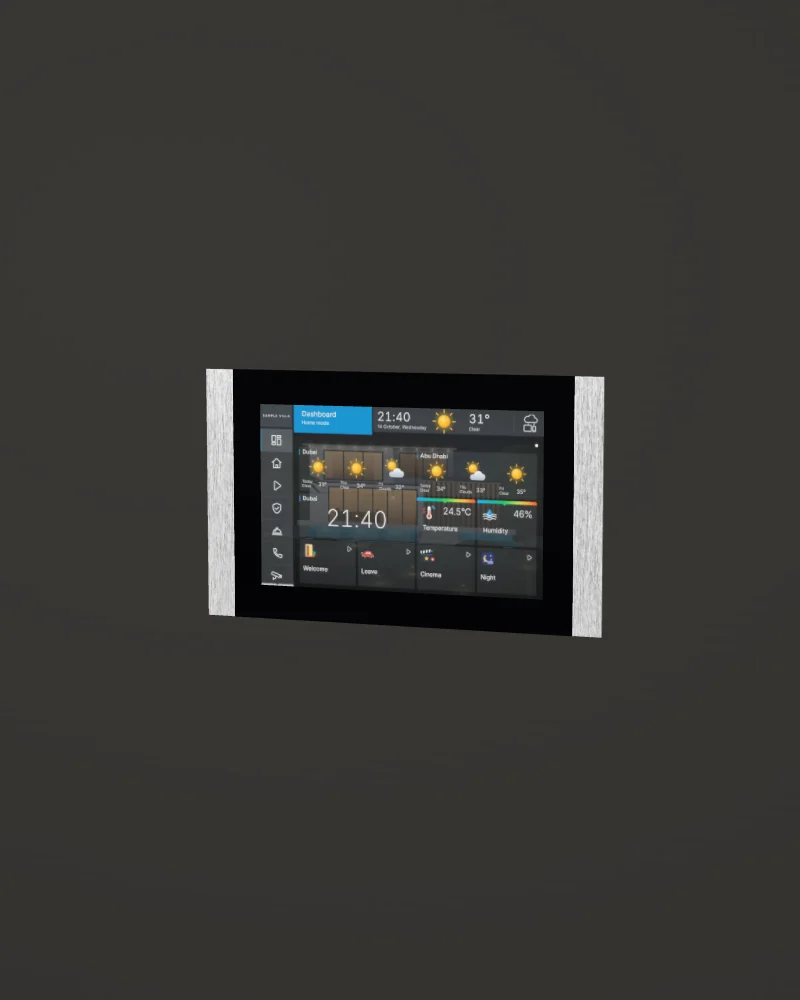

    Silver
    Finish 3

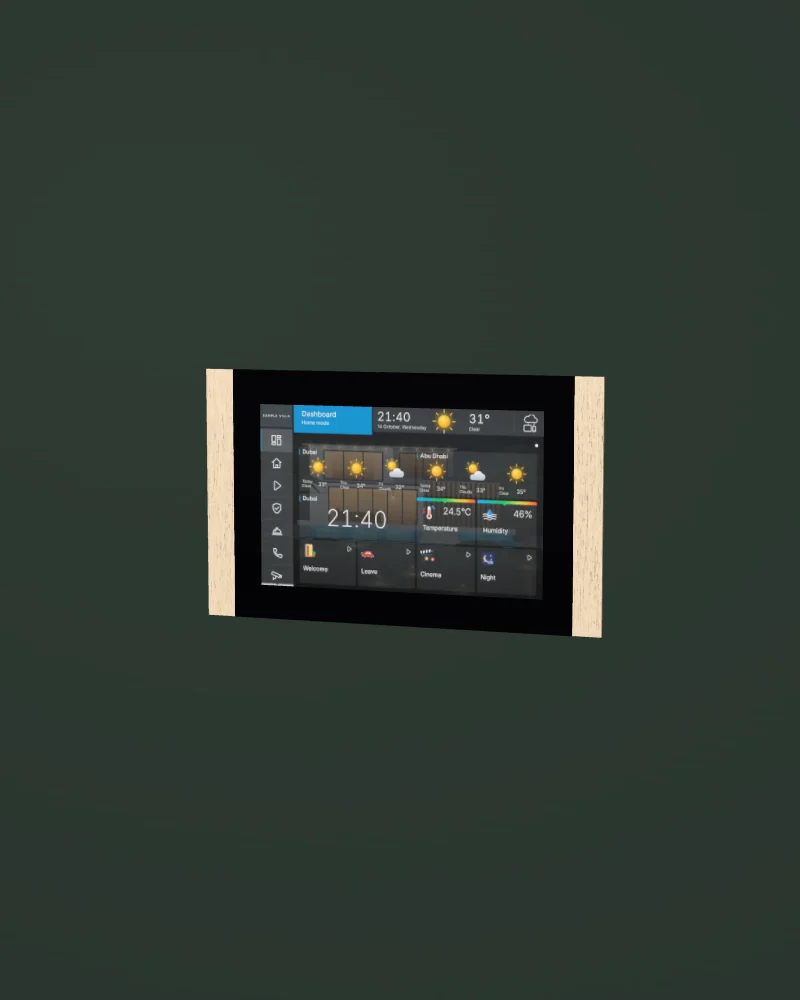

    Gold
    Finish 4

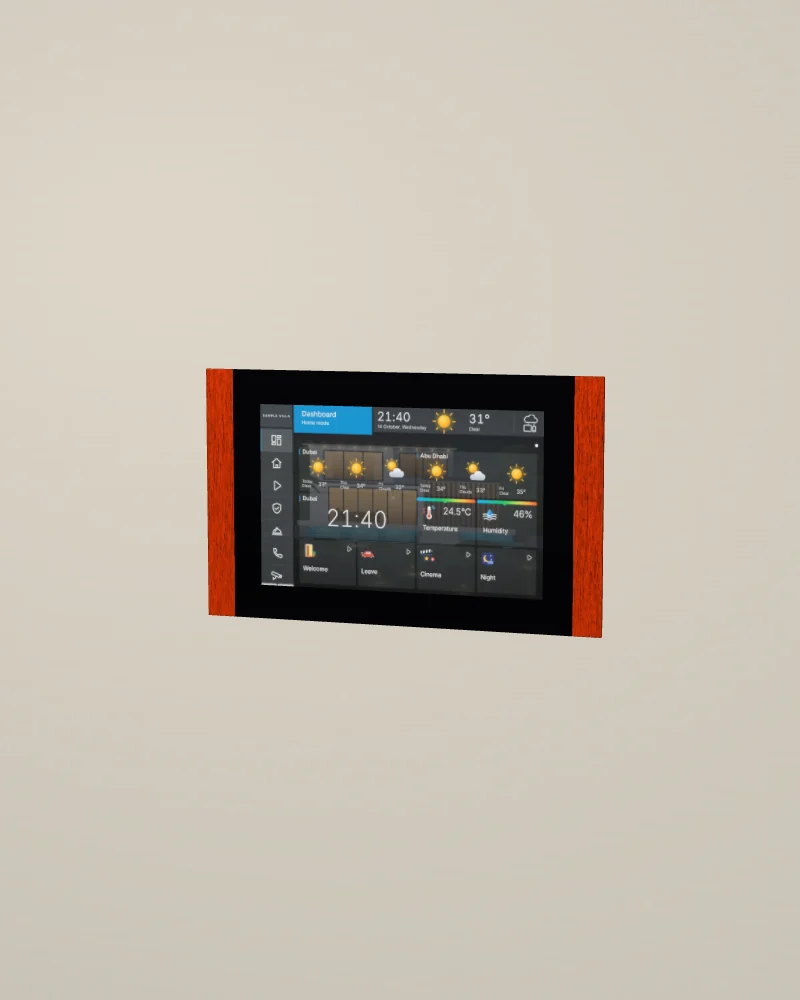

    Red
    Finish 5

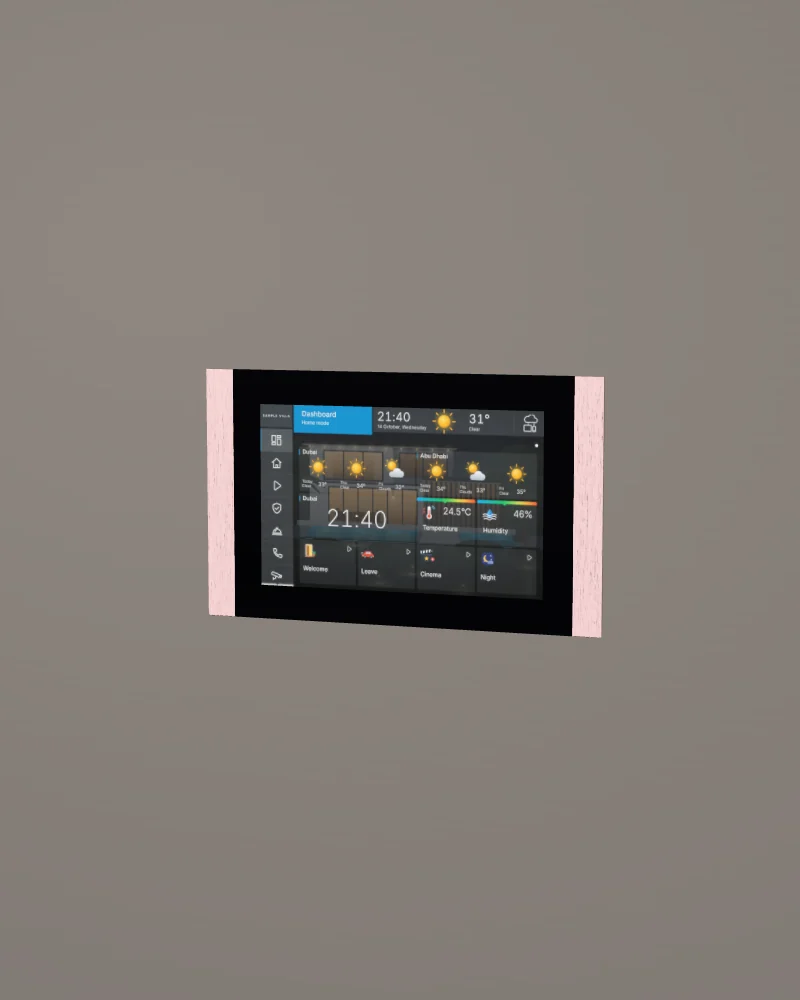

    Pink
    Finish 6

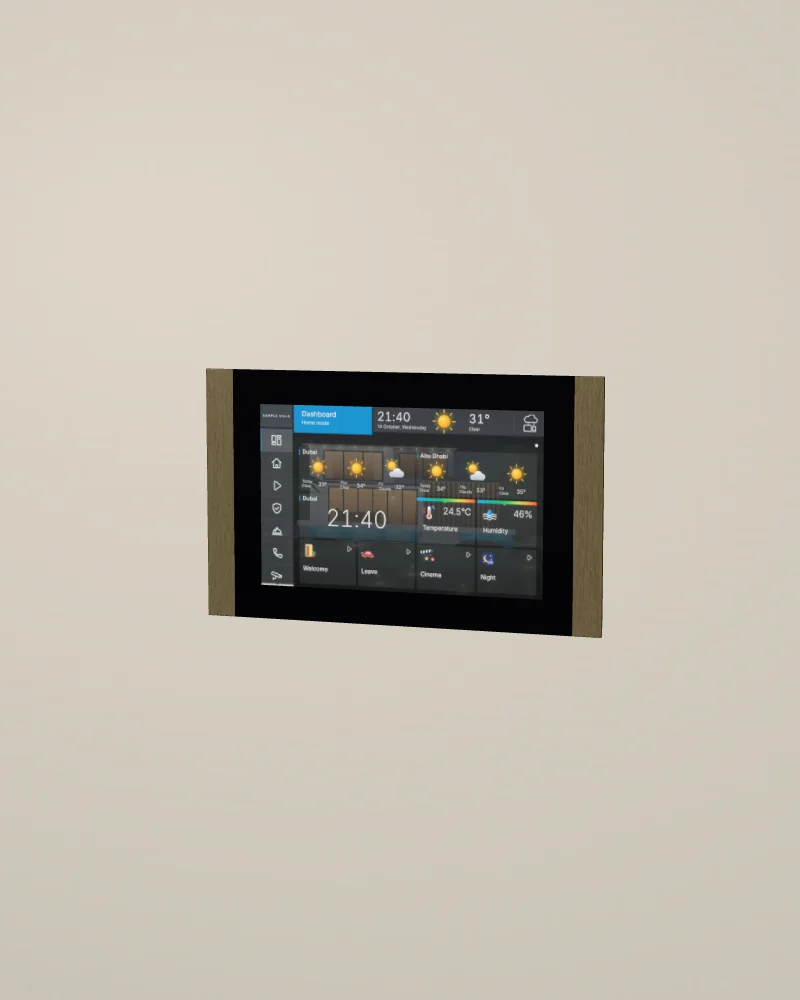

    Bronze
    Finish 7

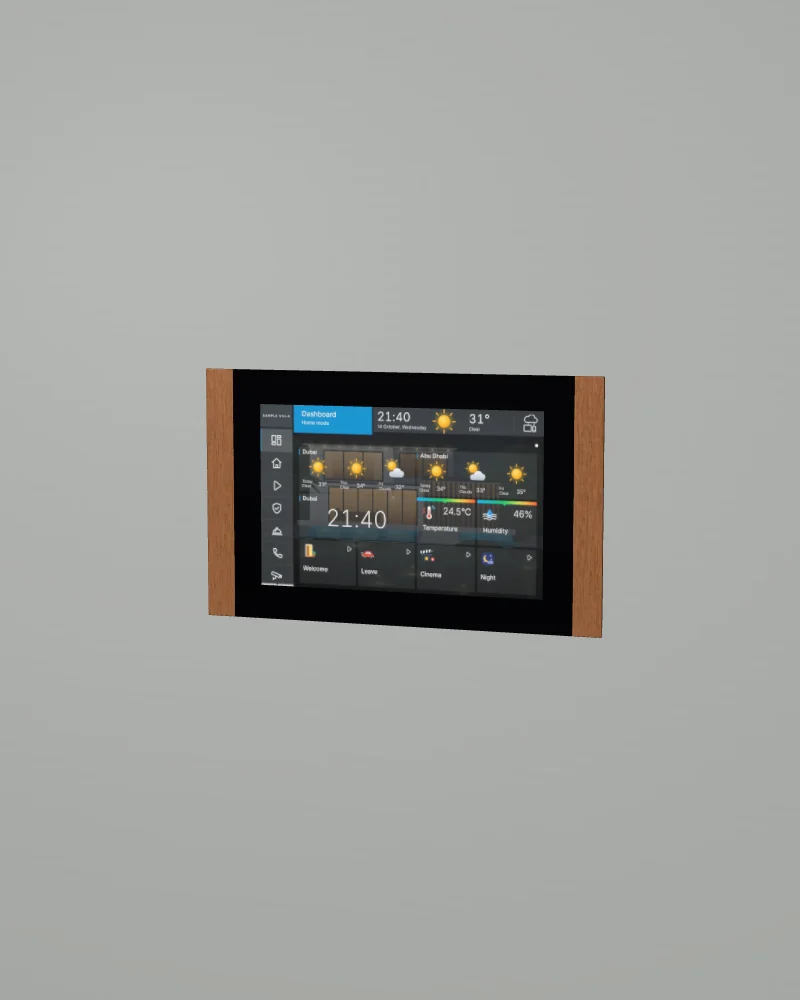

    Copper

    Sources: Inspinia's website and published documents, read on 13 October 2026. The datasheet from Inspinia replaces every to confirm.
